Eaton General purpose ventilated transformer, Fungus proof, CU windings, DOE 2016, NEMA 2, 220°C, 400 kVA, Floor mnt, 3-phase, PV: 480V delta, SV: 208Y/120, NEMA ST-20, 2 at +2.5%, 4 at -2.5%, 150°C, 400 kVA
SKU: #169467
Part: #V48M28T4116CU
UPC: 786680177194
Eaton General purpose ventilated transformer, Fungus proof, CU windings, DOE 2016, NEMA 2, 220°C, 400 kVA, Floor mnt, 3-phase, PV: 480V delta, SV: 208Y/120, NEMA ST-20, 2 at +2.5%, 4 at -2.5%, 150°C, 400 kVA
SKU: #169467
Part: #V48M28T4116CU
UPC: 786680177194
Next day delivery
Description

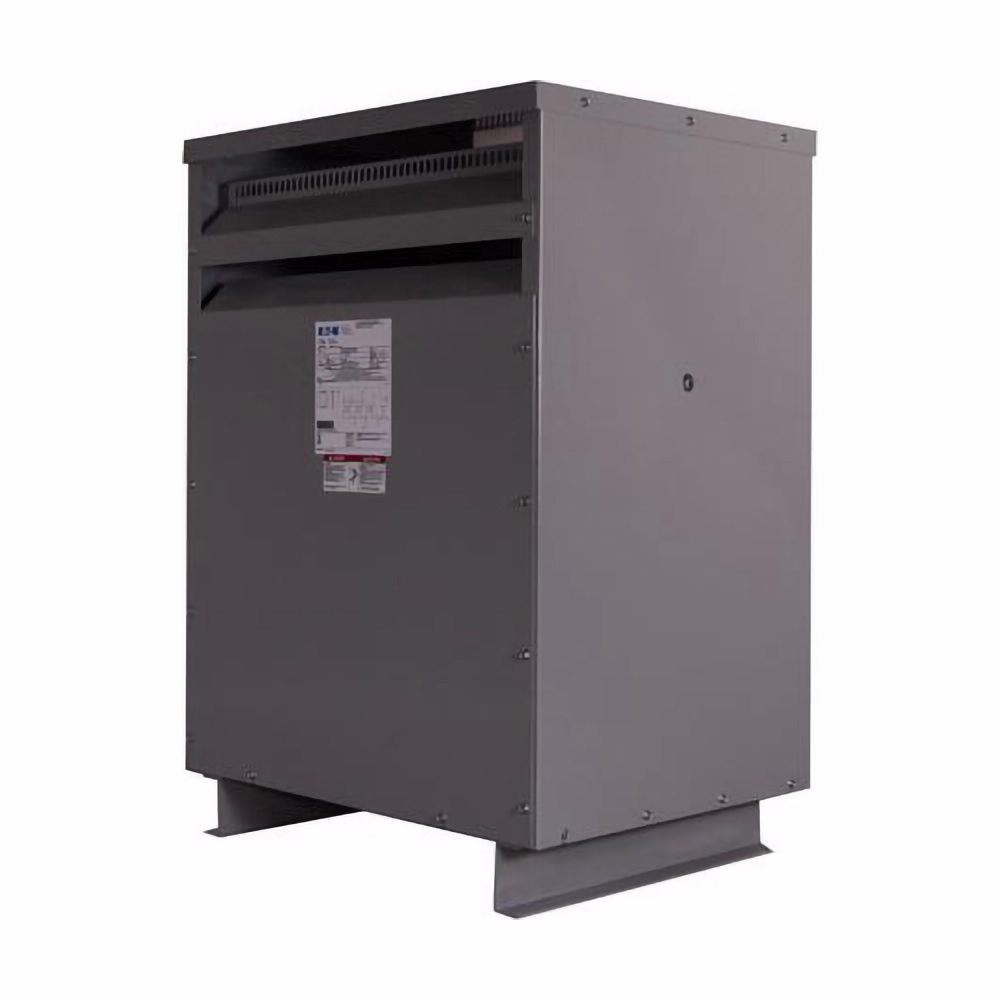

Eaton General Purpose Ventilated Transformer – Dry-Type Distribution Transformer
This Eaton general purpose ventilated transformer is a dry-type, low-voltage distribution transformer designed for commercial, industrial, and lighting applications. It features copper windings and meets DOE 2016 efficiency regulations, making it suitable for electrical distributors and switchgear suppliers requiring reliable and energy-efficient transformers. The unit is built with a NEMA 2 enclosure and is fungus proof, supporting a 3-phase power system with a 400 kVA rating. Floor mounting provides stable installation flexibility.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: V48M28T4116CU
- Power Rating: 400 kVA
- Phase: 3-phase
- Primary Voltage: 480V delta
- Secondary Voltage: 208Y/120
- Coil Material: Copper
- Enclosure: NEMA 2
- Mounting Type: Floor
- Temperature Rating: 220°C insulation system, 150°C temperature rise
- Dimensions (W x H x L): 1.1 in x 1.1 in x 1.1 in
- Product Weight: 1.2 lbs
Features
- DOE 2016 compliant for energy efficiency
- Fungus proof construction for durability in varied environments
- Ventilated design for effective heat dissipation
- Copper windings for improved conductivity and reliability
- Floor mount configuration for secure installation
- Suitable for commercial, industrial, and lighting applications
