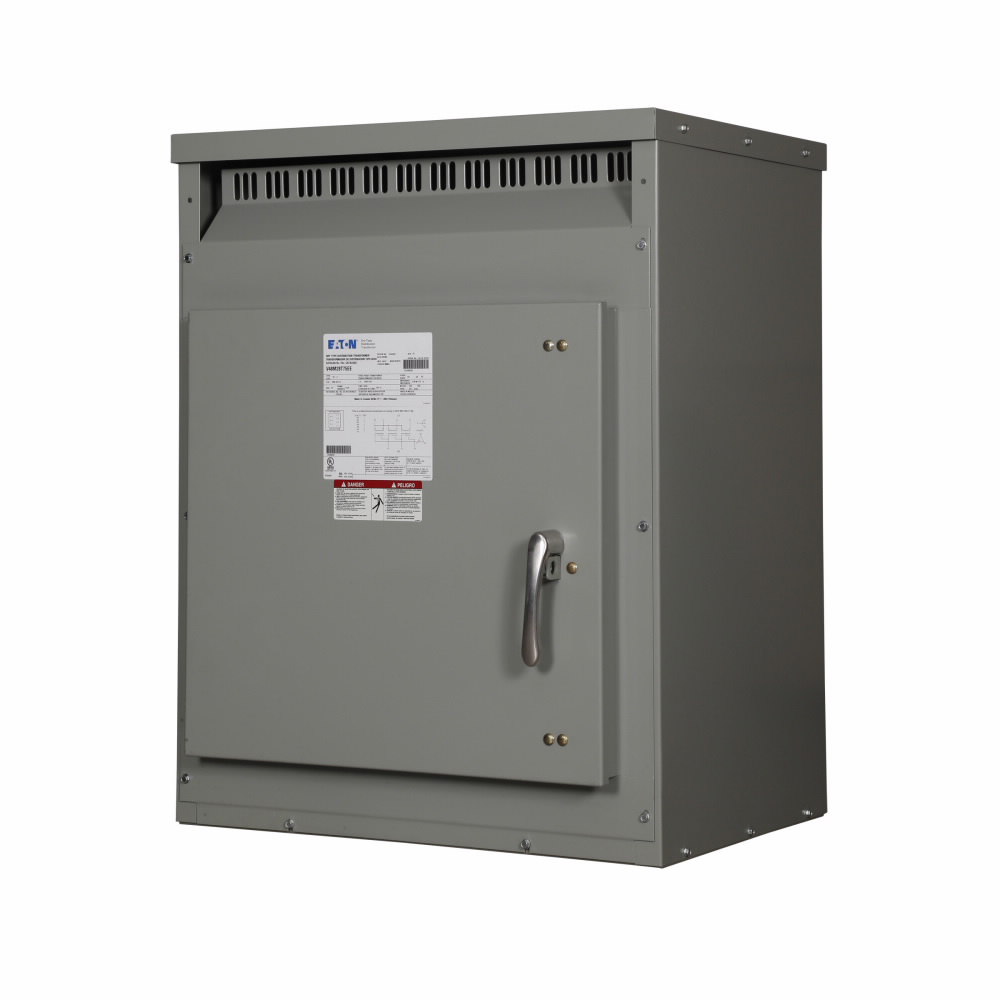

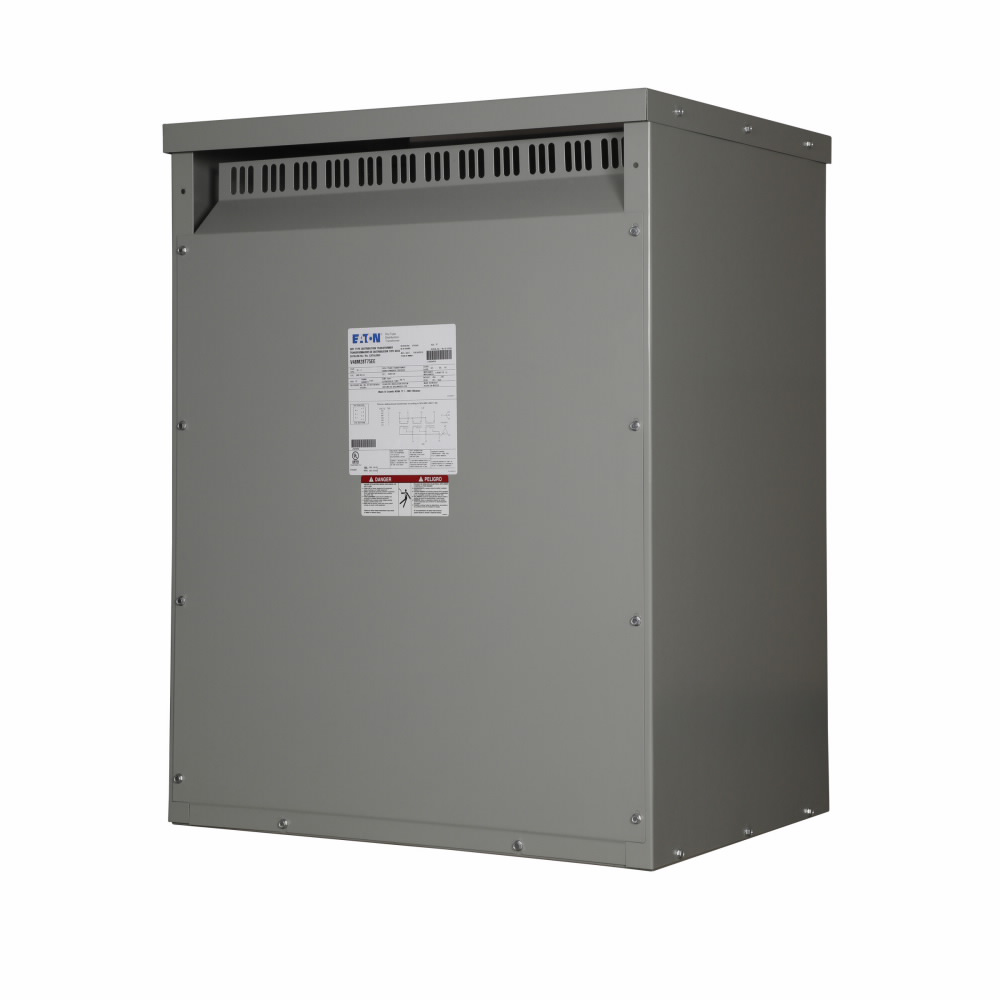

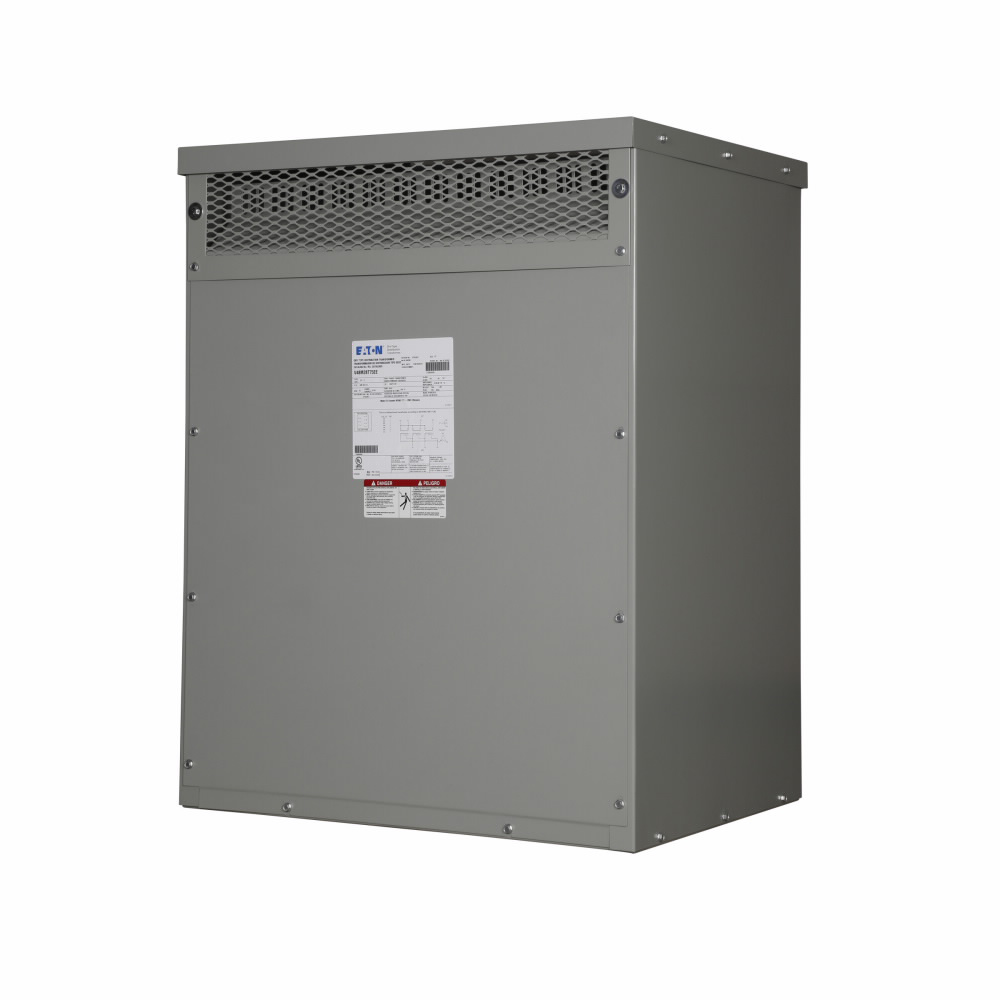

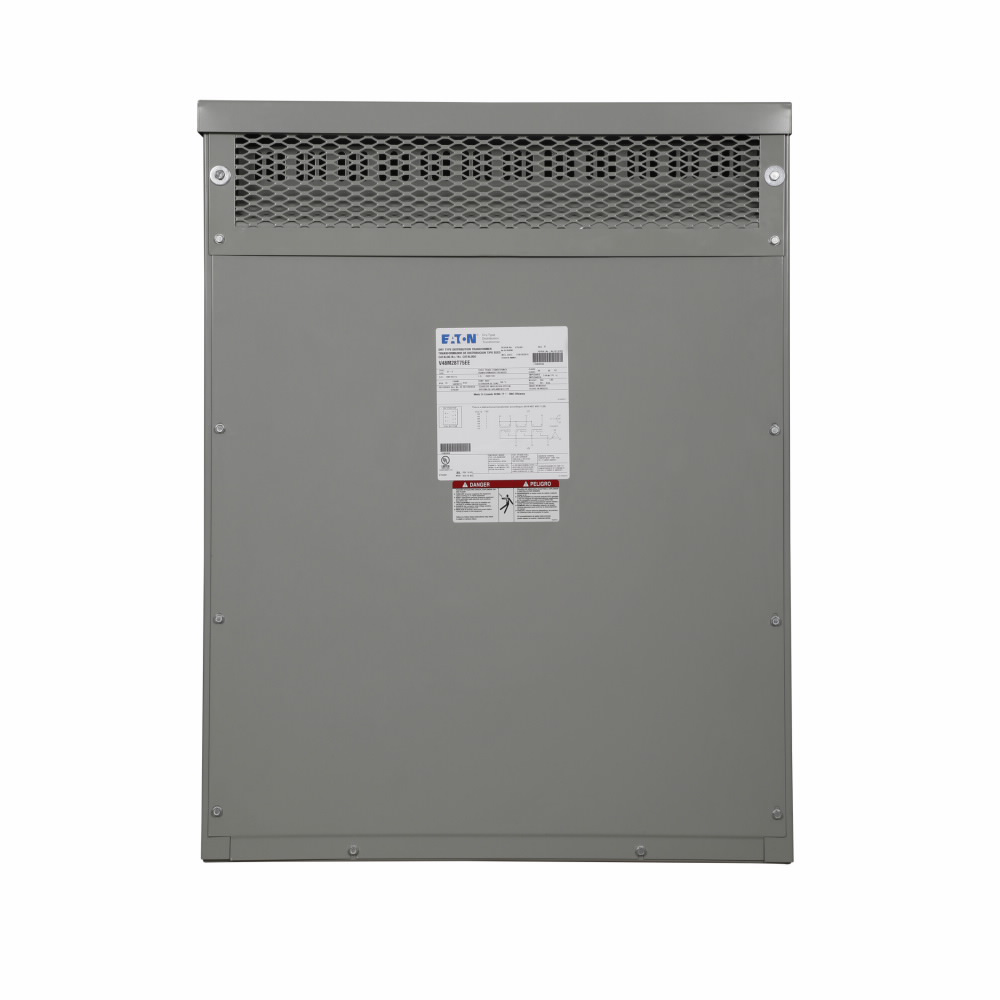

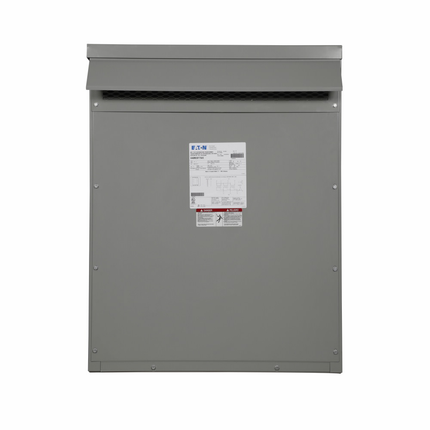

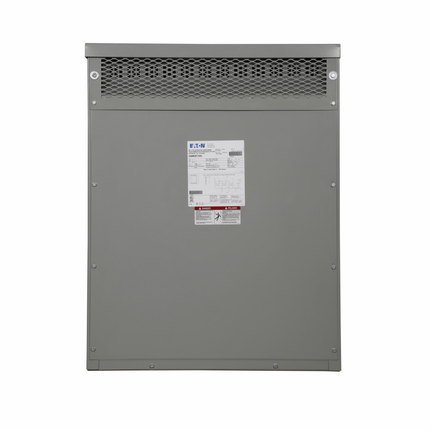

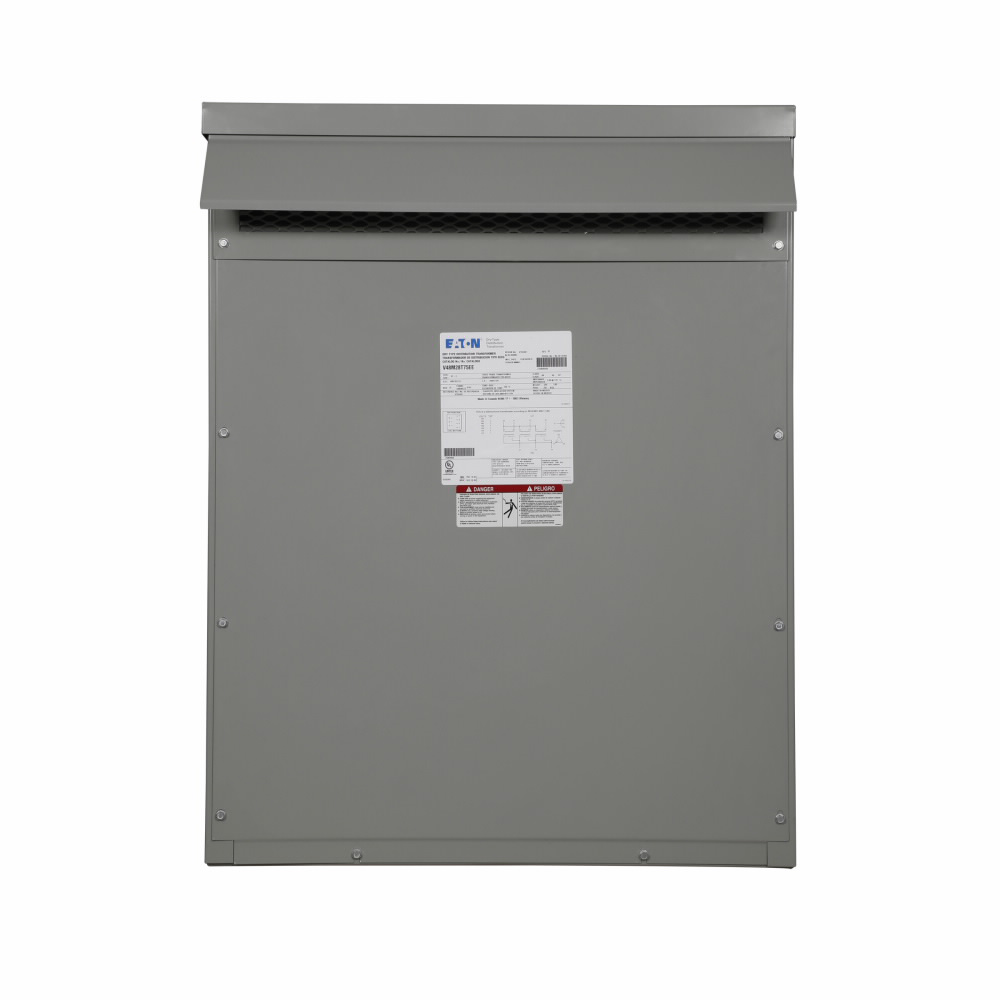

Eaton General purpose ventilated transformer, DT-3 (3-phase), PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 240 delta, 150°C rise w/ 200°C insulation systeam, 75 kVA, EE
SKU: #169257
Part: #V48M24T75EE
UPC: 786680055102
Eaton General purpose ventilated transformer, DT-3 (3-phase), PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 240 delta, 150°C rise w/ 200°C insulation systeam, 75 kVA, EE
SKU: #169257
Part: #V48M24T75EE
UPC: 786680055102
Description
Eaton General purpose ventilated transformer, DT-3 (3-phase), 75 kVA

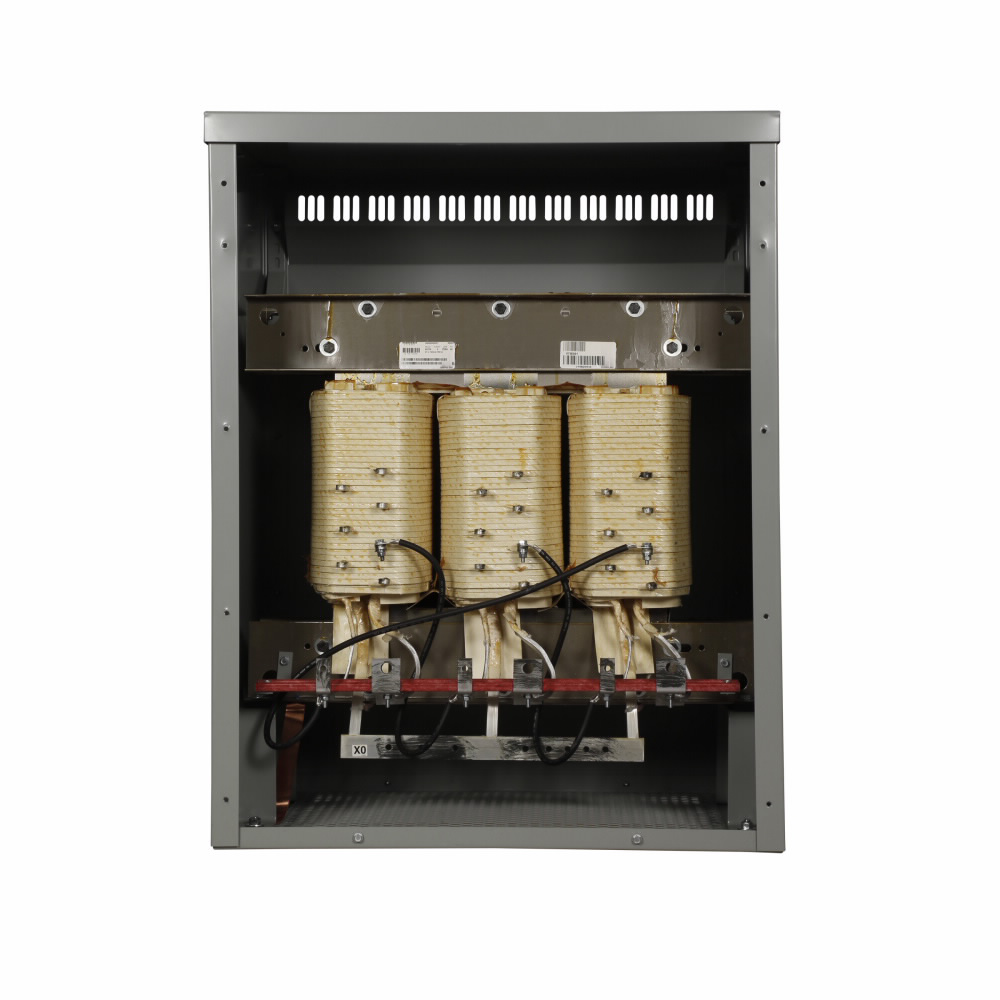

This Eaton general purpose ventilated transformer is designed for commercial and industrial electrical distribution applications. It is a 3-phase transformer with a primary voltage rating of 480V and a secondary voltage of 240 delta (SV 240 delta). The transformer features taps for voltage adjustment (2 at +2.5% and 4 at -2.5%) and is built with a coil material of aluminum. It supports a 75 kVA rating and has a thermal rise of 150°C with a 200°C insulation system, suitable for demanding electrical environments. Eaton, a recognized electrical distributor and switchgear supplier, offers this transformer as part of its reliable wire and cable and lighting solutions portfolio.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: V48M24T75EE
- Frame: 914D
- Number of Phases: 3
- Coil Material: Aluminum
- Primary Voltage: 480V
- Secondary Voltage: 240 delta
- Voltage Taps: 2 at +2.5%, 4 at -2.5%
- Power Rating: 75 kVA
- Temperature Rise: 150°C rise with 200°C insulation system
- Dimensions (WxHxL): 29 in x 39 in x 22 in
- Product Weight: 468 lbs
- UPC: 786680055102
Features
- General purpose ventilated design for optimal cooling
- High temperature insulation system rated for 200°C
- Adjustable voltage taps for precise voltage regulation
- Durable aluminum coil construction for efficient performance
- Robust frame design (914D) suitable for commercial distribution
