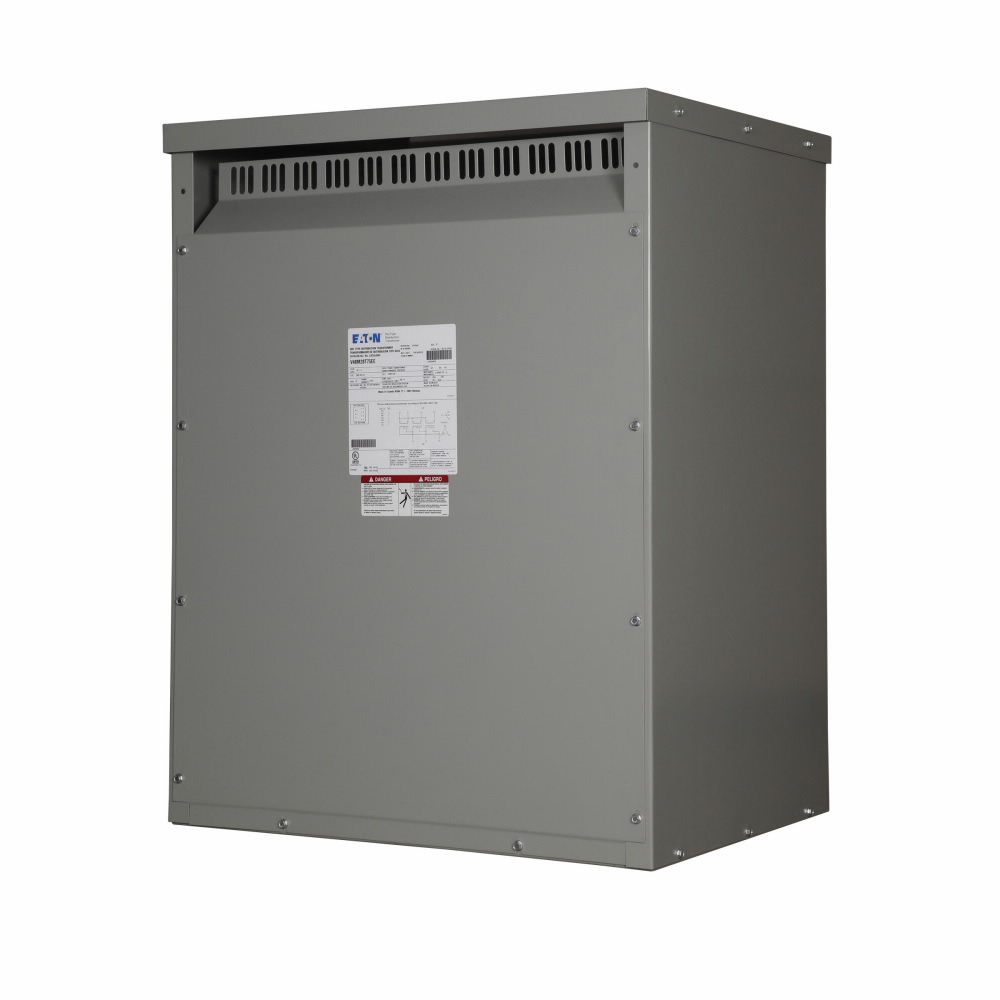

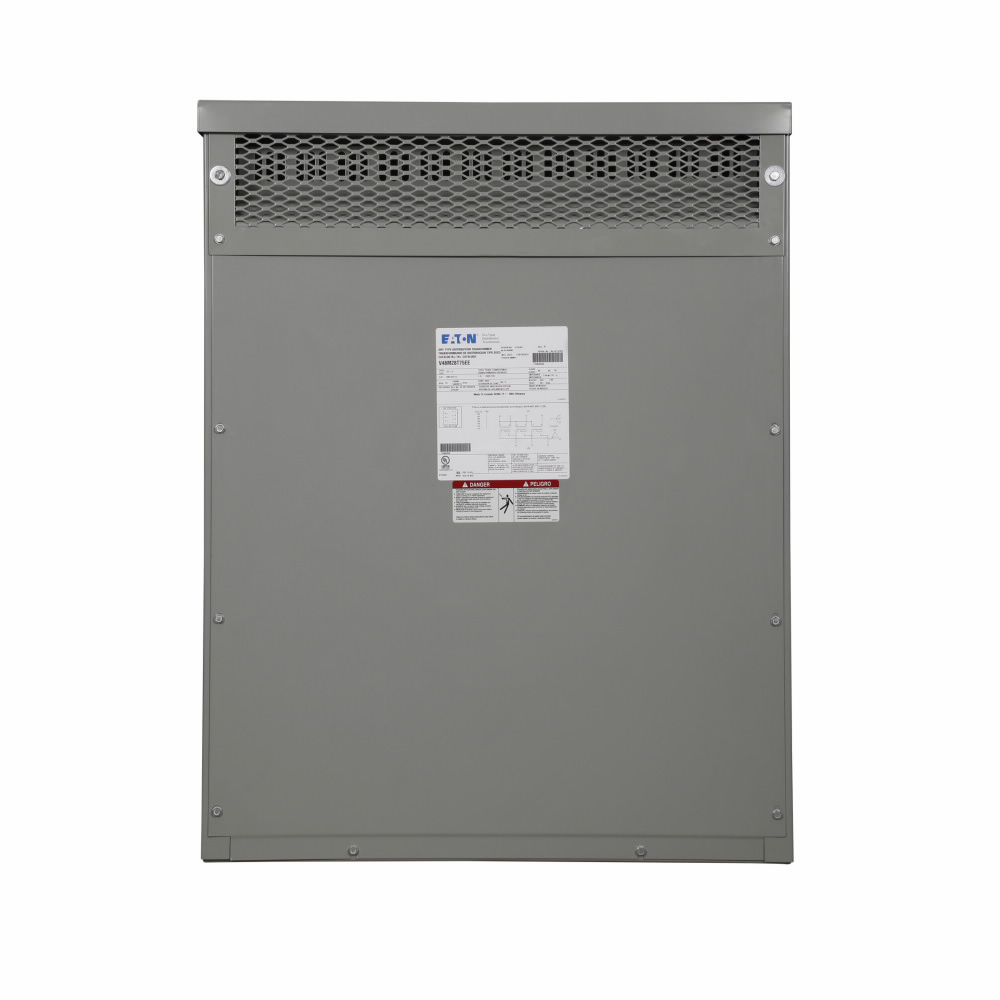

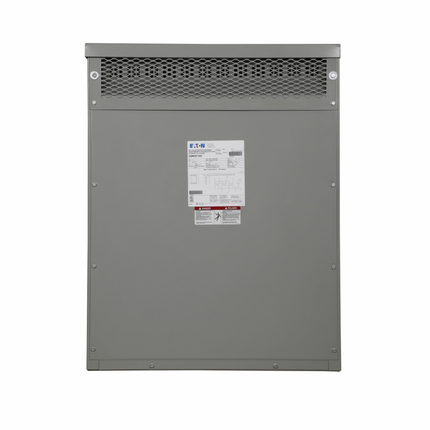

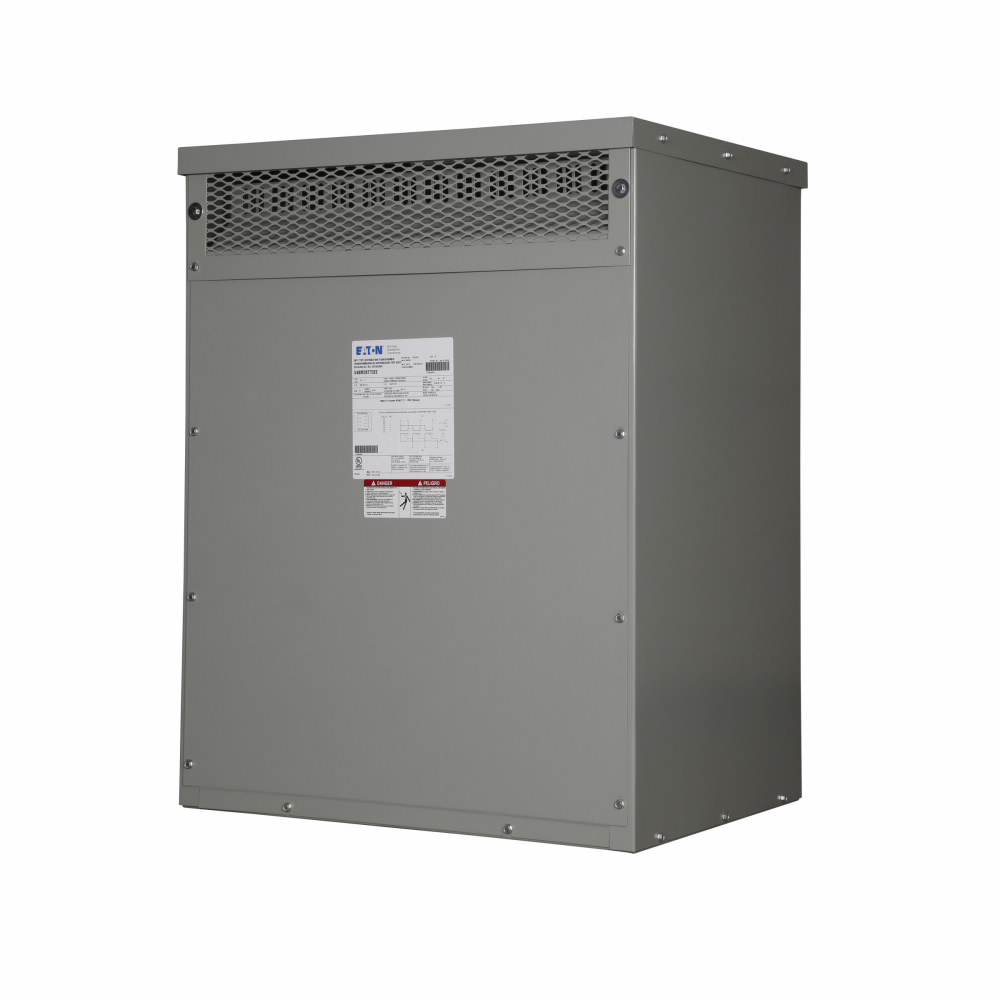

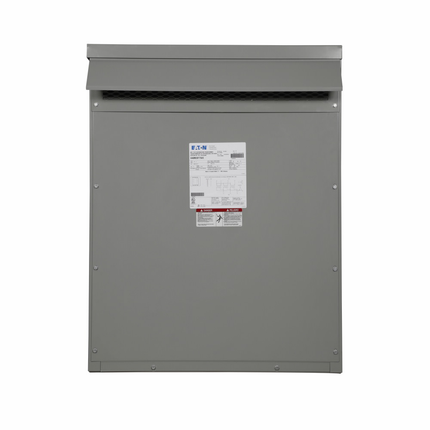

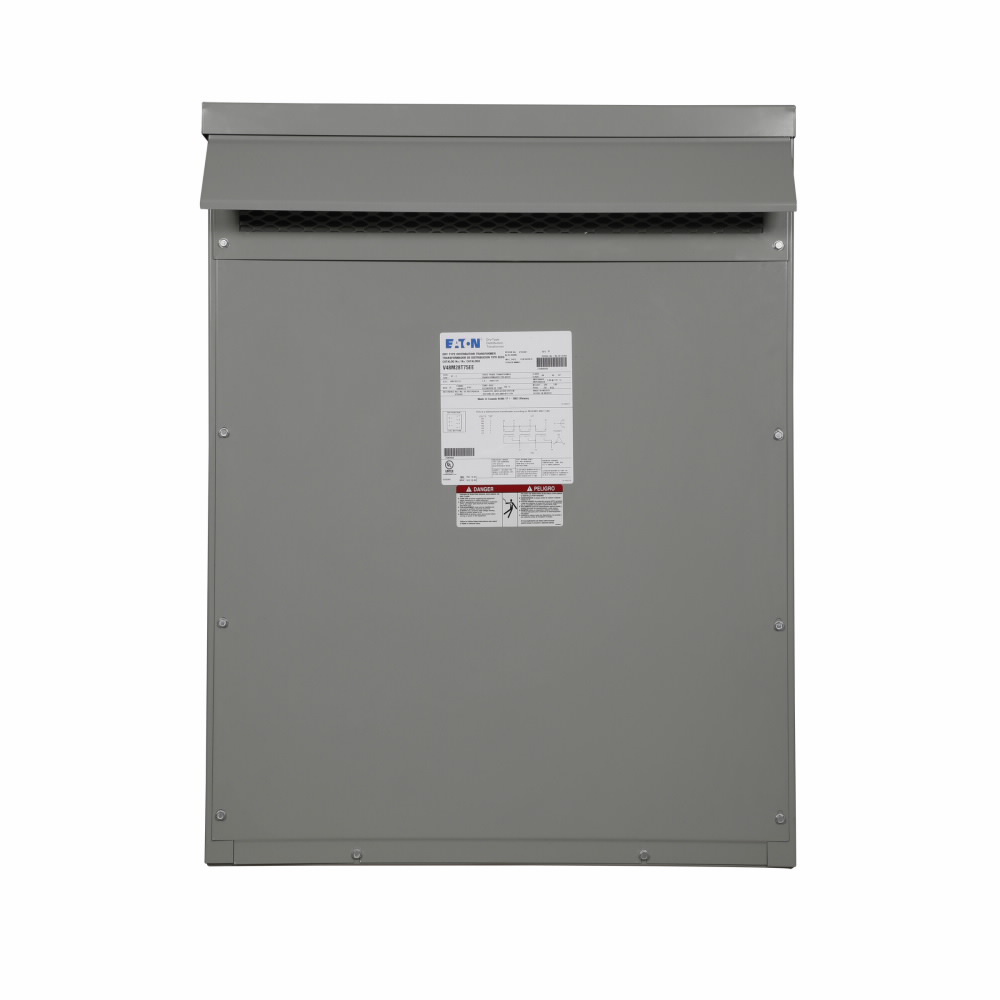

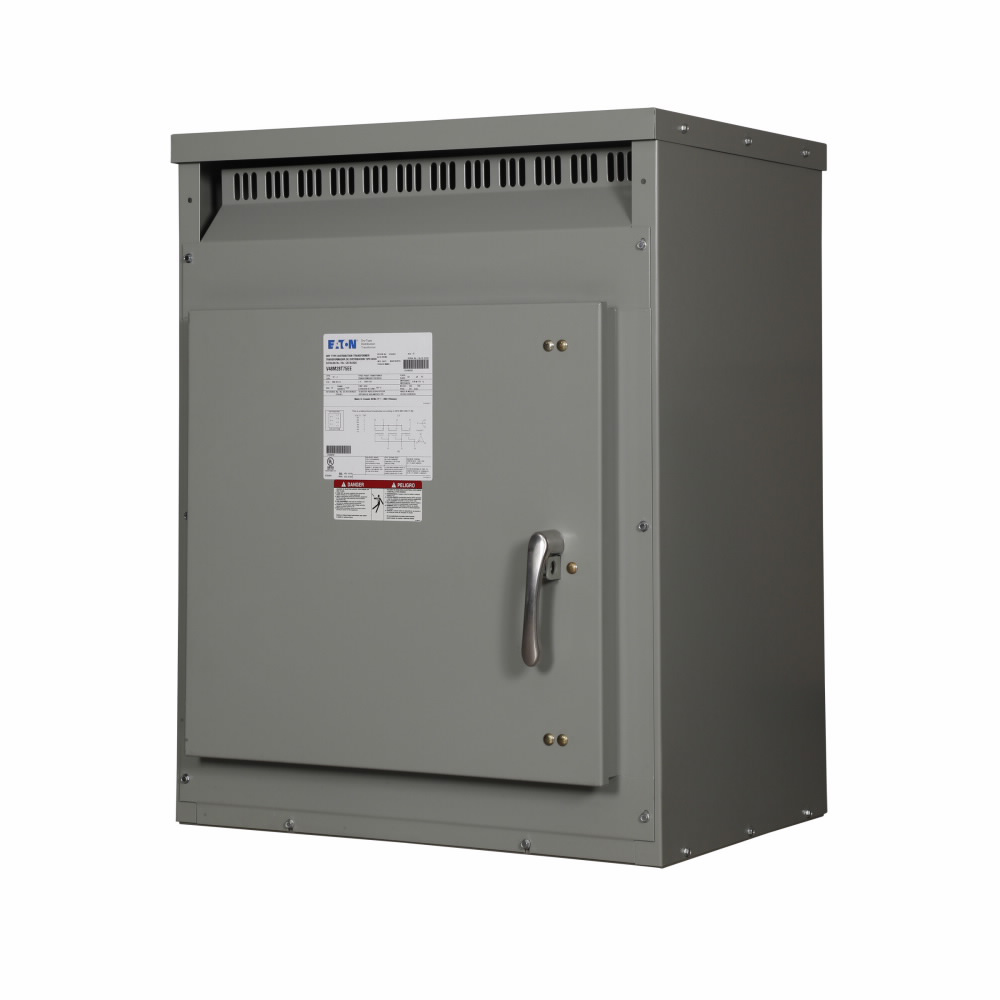

Eaton General purpose ventilated transformer, DT-3 (3-phase), PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 208Y/120V, 150°C rise w/ 200°C insulation systeam, 45 kVA, Copper windings, EE
SKU: #169492
Part: #V48M28T45CUEE
UPC: 786680021121
Eaton General purpose ventilated transformer, DT-3 (3-phase), PV 480V, Taps: 2 at +2.5% /4 at -2.5%, SV 208Y/120V, 150°C rise w/ 200°C insulation systeam, 45 kVA, Copper windings, EE
SKU: #169492
Part: #V48M28T45CUEE
UPC: 786680021121
Next day delivery
Description
Eaton General purpose ventilated transformer, DT-3 (3-phase), PV 480V, 45 kVA Transformer
This Eaton general purpose ventilated transformer is designed for commercial electrical distribution applications, providing reliable voltage transformation for lighting solutions, wire and cable systems, and switchgear supplier needs. It features a 3-phase design with copper windings, suitable for 480V primary voltage with taps for voltage adjustment and a secondary voltage of 208Y/120V. The transformer is engineered for a 150°C temperature rise with a 200°C insulation system, ensuring durability and safety in demanding electrical environments.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: V48M28T45CUEE
- Product Weight: 370 lbs
- Number of Phases: 3
- Coil Material: Copper
- Primary Voltage: 480V
- Secondary Voltage: 208Y/120V
- Temperature Rise: 150°C with 200°C insulation system
- Power Rating: 45 kVA
- Dimensions (W x H x L): 23 in x 32.02 in x 16.5 in
Features
- General purpose ventilated design for commercial distribution
- Voltage taps: 2 at +2.5%, 4 at -2.5% for precise voltage regulation

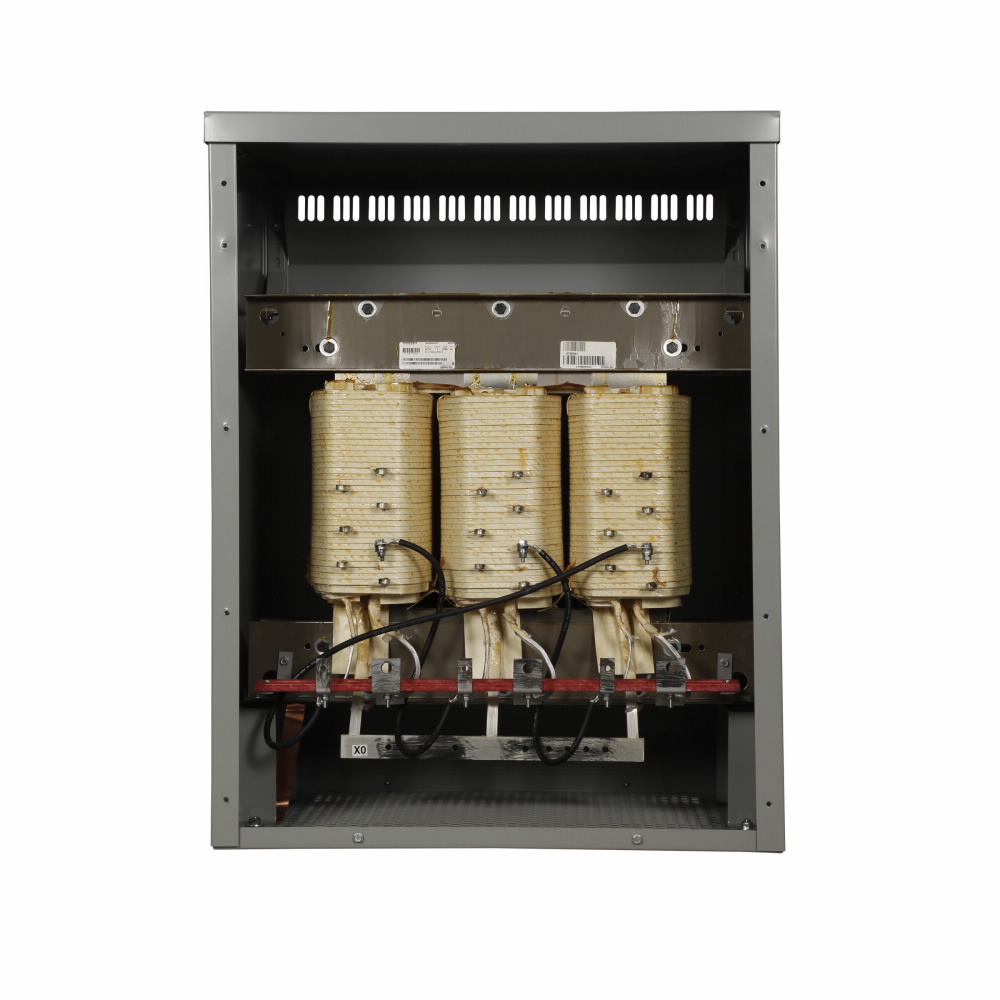

- Copper windings for enhanced conductivity and reliability
- Robust insulation system rated for 200°C for high temperature tolerance
- Compact frame size for ease of installation and integration
