Eaton General purpose ventilated transformer, DOE 2016, NEMA 2, FR940, 60 Hz, 220°C, 30 kVA, Three-phase, 480 Delta V, 208Y/120 Vac, NEMA ST-20, 2 at +2.5%, 4 at -2.5%, 150°C, 30 kVA, 480 Vac-208Y/120 Vac, WS58,
SKU: #169437
Part: #V48M28T3016CU
UPC: 786680191992
Eaton General purpose ventilated transformer, DOE 2016, NEMA 2, FR940, 60 Hz, 220°C, 30 kVA, Three-phase, 480 Delta V, 208Y/120 Vac, NEMA ST-20, 2 at +2.5%, 4 at -2.5%, 150°C, 30 kVA, 480 Vac-208Y/120 Vac, WS58,
SKU: #169437
Part: #V48M28T3016CU
UPC: 786680191992
Next day delivery
Description

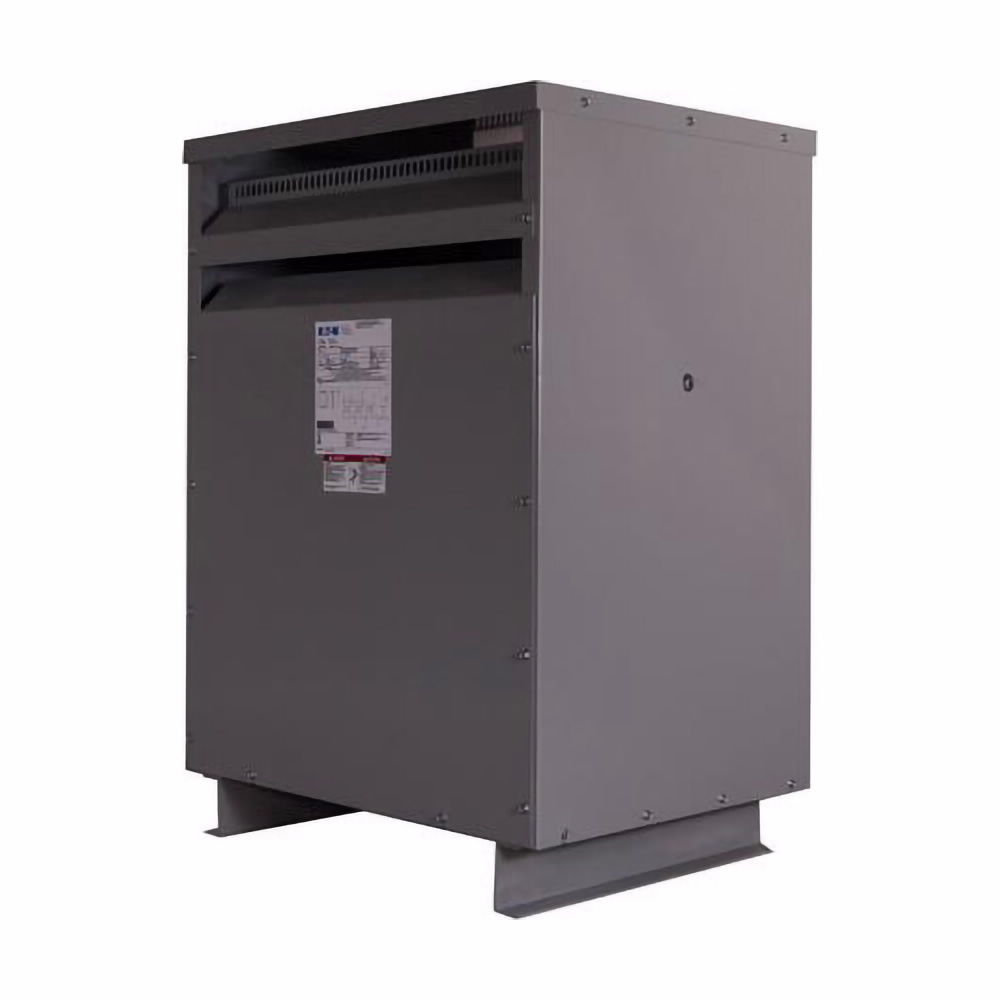

Eaton General Purpose Ventilated Transformer – Dry-Type Transformer
This Eaton general purpose ventilated transformer is designed for commercial, industrial, and lighting applications requiring reliable three-phase power transformation. Meeting DOE 2016 efficiency regulations, it provides a 30 kVA capacity with a 480 Delta V primary and 208Y/120 Vac secondary voltage configuration. The transformer features copper windings and a 220°C insulation system, housed in a NEMA 2 enclosure, suitable for floor or wall upright mounting. It is engineered for use by electrical distributors and switchgear suppliers requiring high-efficiency, durable wire and cable solutions within electrical distribution systems.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: V48M28T3016CU
- Frame: FR940
- Power Rating: 30 kVA
- Frequency: 60 Hz
- Number of Phases: 3
- Primary Voltage: 480 Delta V
- Secondary Voltage: 208Y/120 Vac
- Insulation System Temperature: 220°C
- Enclosure Type: NEMA 2
- Material: Copper Windings
- Coil Material: Copper
- Mounting Type: Floor or Wall, Upright Only
- Dimensions (W x H x L): 24.88 in x 36.88 in x 21.13 in
- Product Weight: 448 lbs
Features
- DOE 2016 compliant high-efficiency dry-type transformer
- Ventilated design for improved cooling and performance
- Meets NEC 450.10(A) with bonding ground bar standard
- Extra-robust mechanical construction for stable shipping and long-term operation
- Top connection terminals for spacious wiring compartment
- Transformer-to-wall clearance reduced to 2 inches for optimal placement flexibility
- 4-inch ground-to-floor clearance for forklift access and easy installation
- Lower center of gravity to reduce tip-over risk during handling
- Meets OSHPD California Seismic Certification for seismic safety
