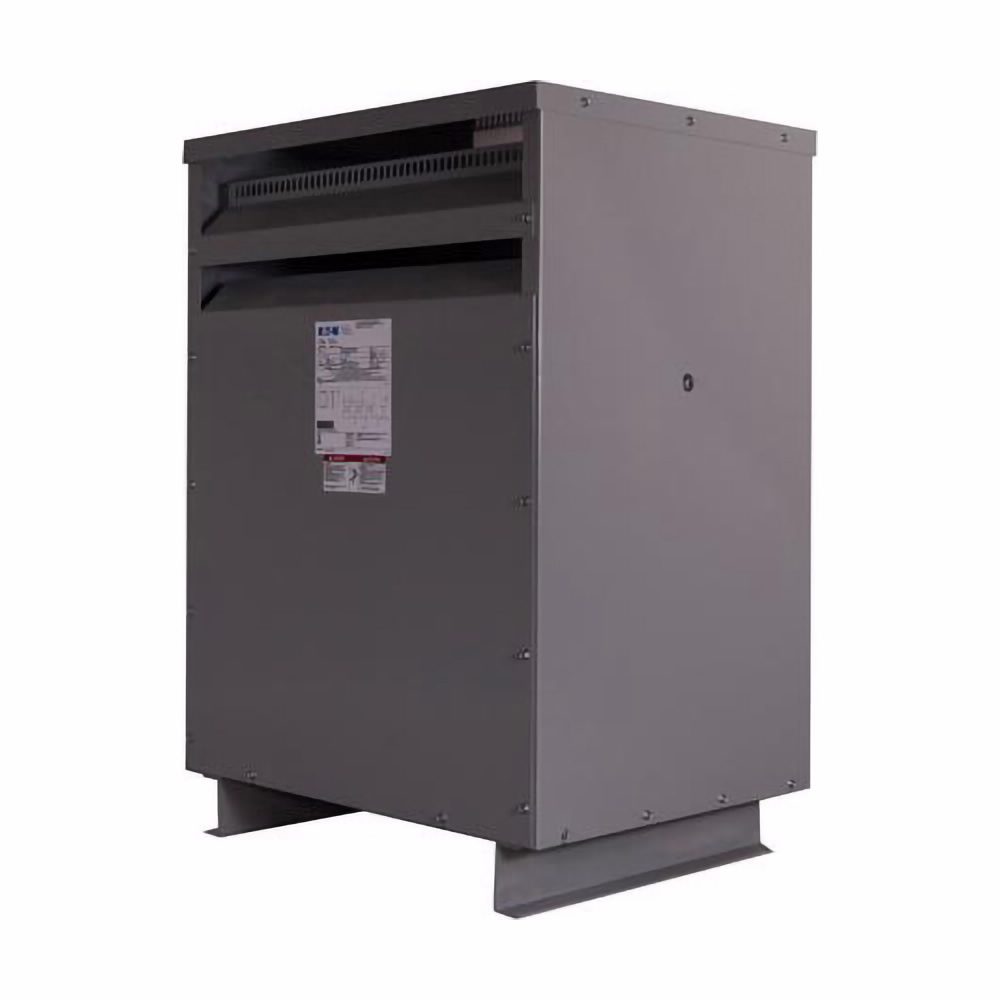

Eaton General Purpose Ventilated Transformer 45 kVA

This Eaton general purpose ventilated transformer is designed for commercial, industrial, and lighting applications, providing reliable power distribution with high efficiency. It features aluminum windings and meets DOE 2016 energy efficiency regulations. Suitable for use by electrical distributors and switchgear suppliers, this three-phase transformer supports 208 Delta V and 480Y/277 Vac systems with a NEMA 2 enclosure rating, ensuring durability and safety in various installation environments.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: V29M47T4516
• Frame: FR940
• Power Rating: 45 kVA
• Number of Phases: 3
• Voltage: 208 Delta V, 480Y/277 Vac
• Coil Material: Aluminum
• Material: Aluminum
• Enclosure: NEMA 2
• Mounting Type: Floor or Wall, Upright Only
• Dimensions (W x H x L): 24.88 in x 36.88 in x 21.13 in
• Product Weight: 1.2 (units not specified)
• Insulation Temperature Rating: 220°C
• Temperature Rise: 150°C
• Frequency: 60 Hz

Features

• DOE 2016 compliant for energy efficiency
• Ventilated design for improved cooling
• Aluminum windings for reduced weight and enhanced conductivity
• NEMA 2 enclosure providing protection for indoor use
• Top connection terminals for spacious wiring compartment
• Mountable on floor or wall in upright position
• Designed for stable shipping and handling with lower center of gravity
• Meets NEC 450.10 (A) with bonding ground bar standard
• Transformer-to-wall clearance optimized to 2 inches for placement flexibility
• Big 4-inch ground-to-floor clearance for forklift access
• Extra-robust mechanical construction for long-term operation

Downloads & Links

• Eatons High-Efficiency Dry-Type Transformers
• Eatons Low-Voltage Dry-Type Distribution Transformers
