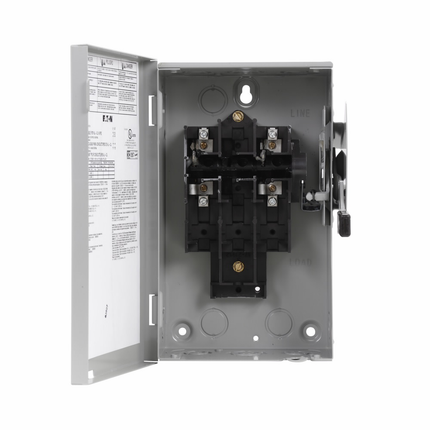

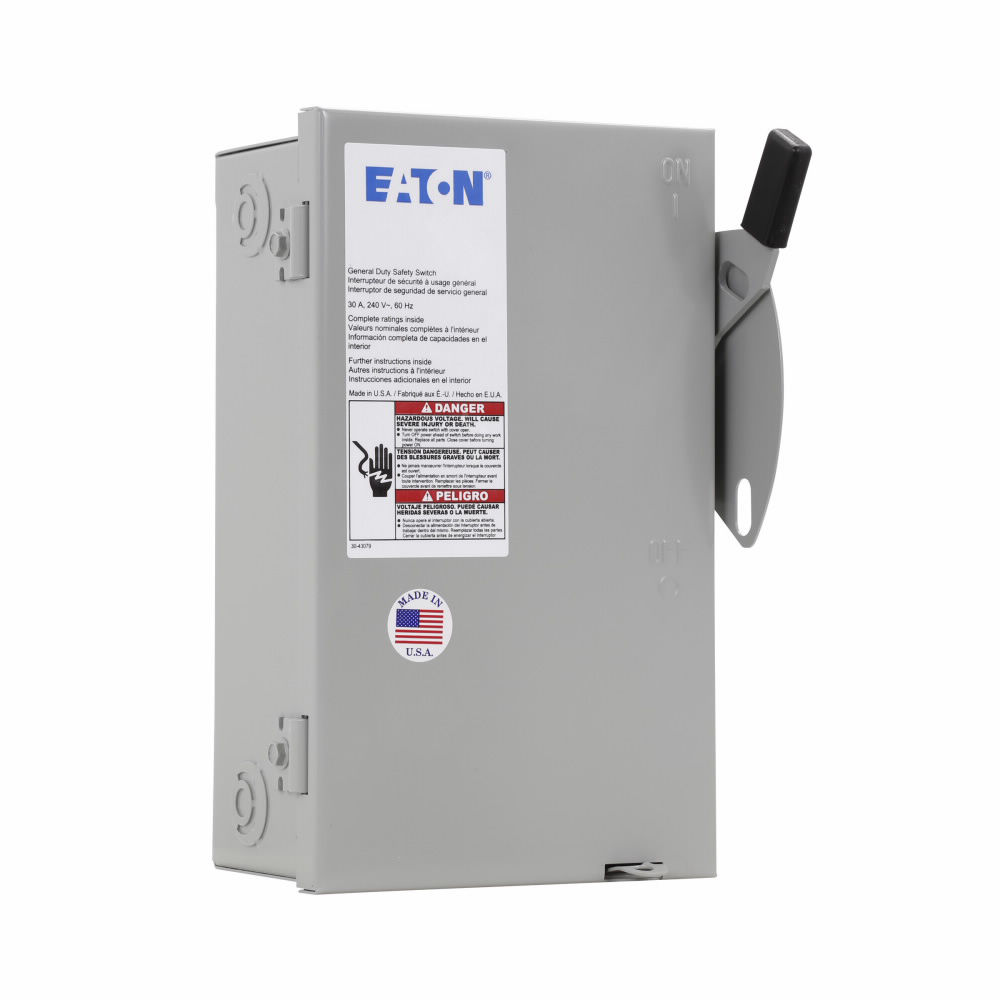

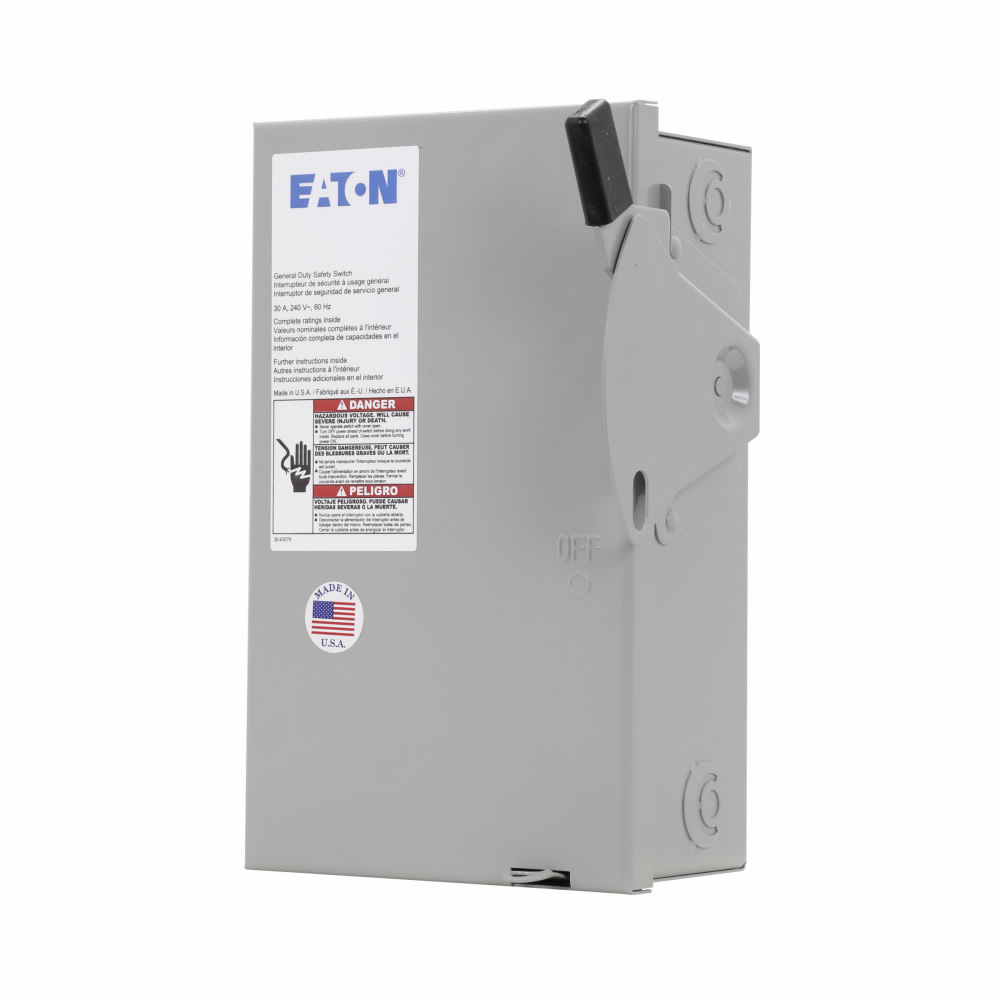

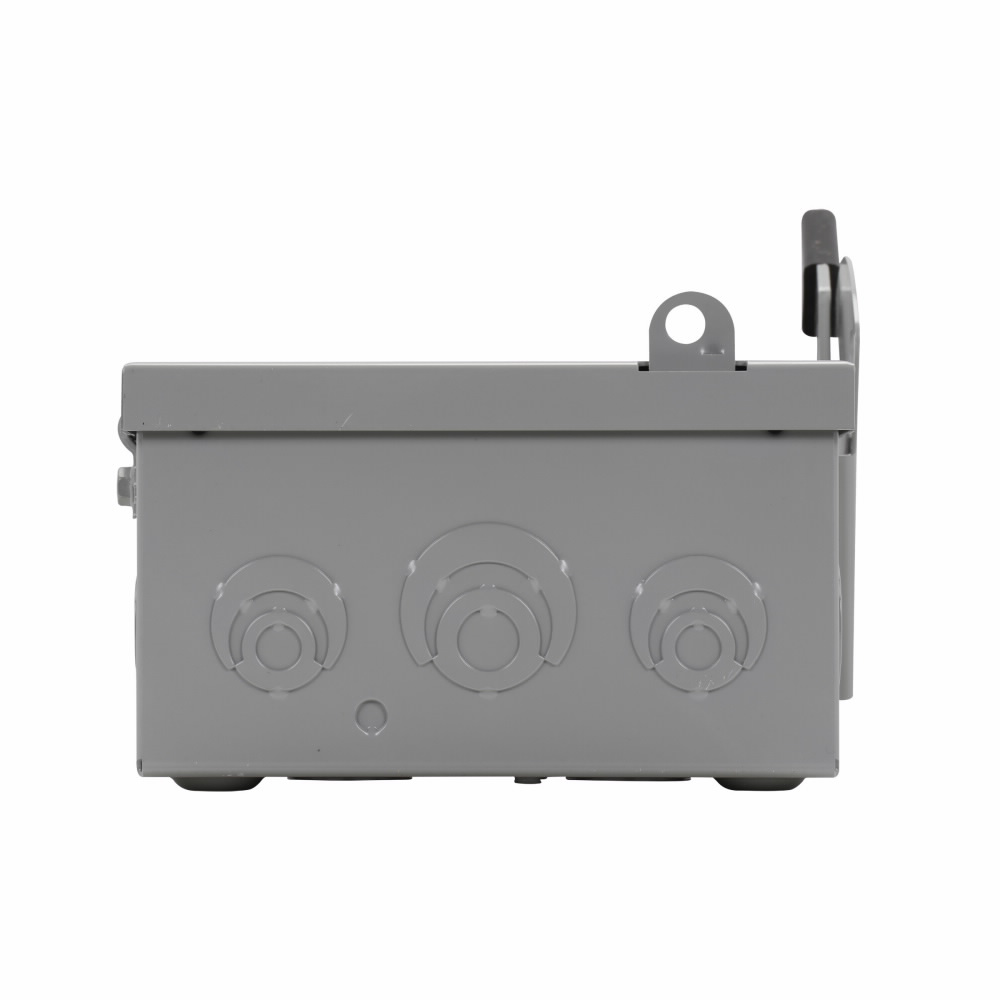

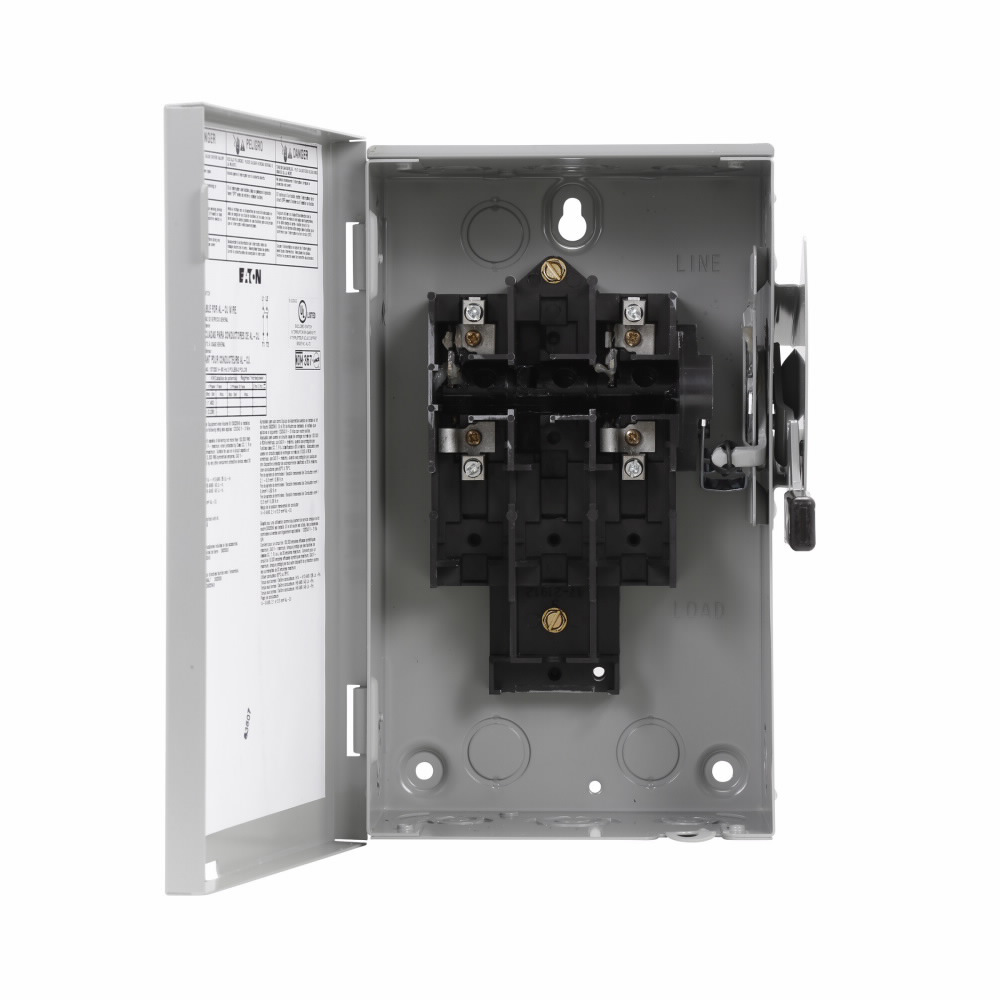

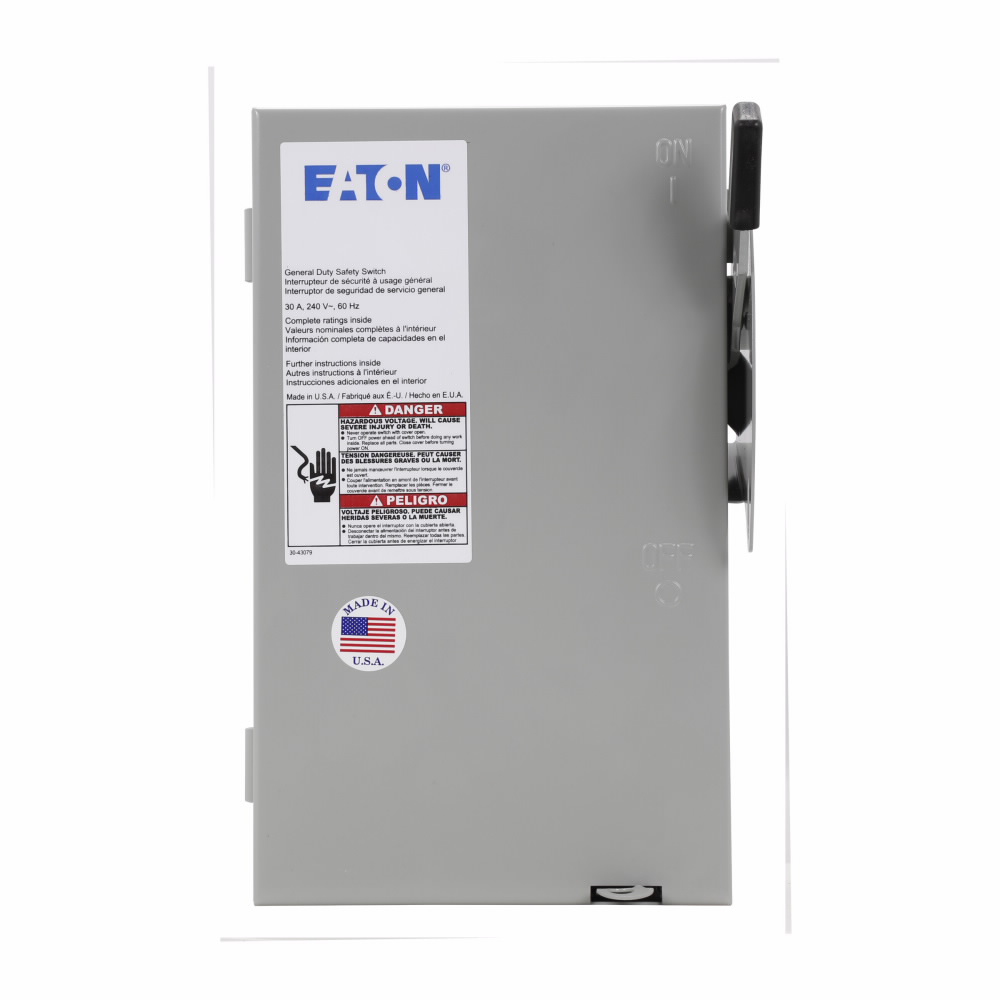

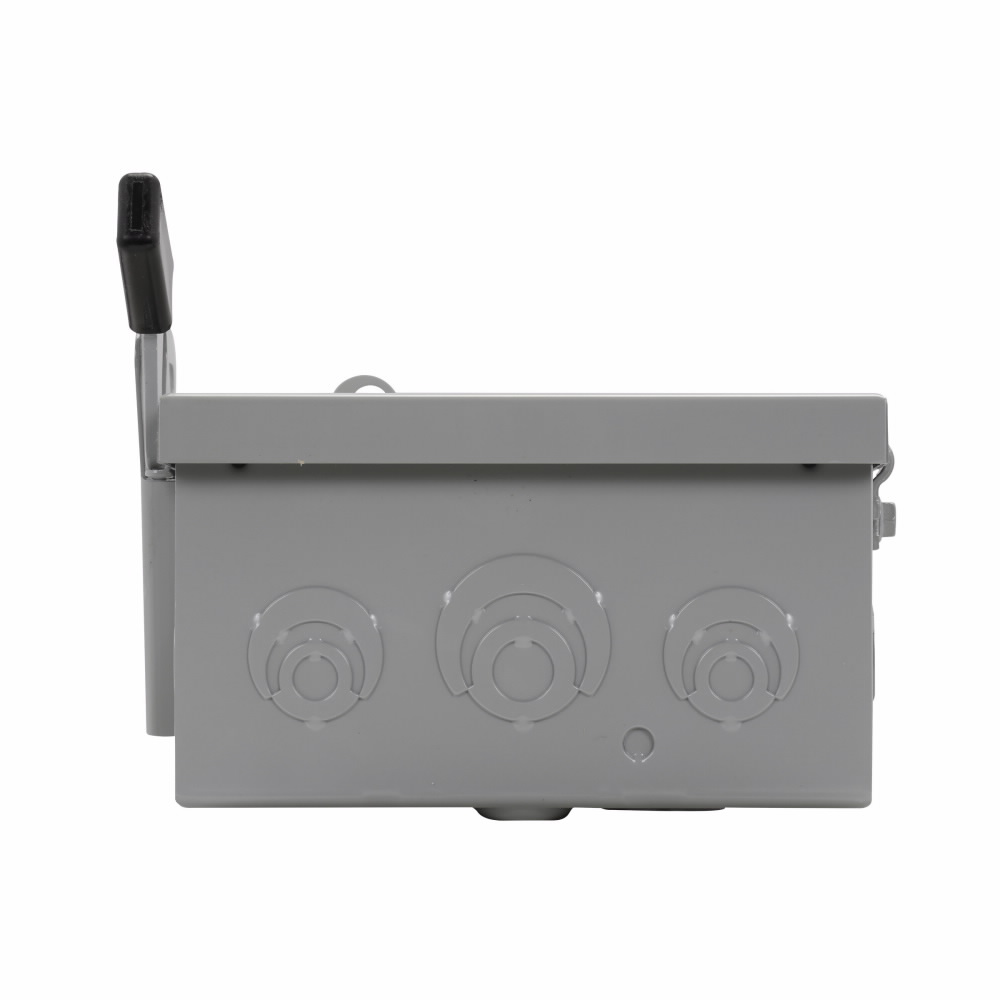

Eaton General duty non-fusible safety switch, single-throw, 30 A, NEMA 1, Indoor, Painted steel, Two-pole, Two-wire, 240 V
SKU: #162494
Part: #DG221UGB
UPC: 782113120102
Eaton General duty non-fusible safety switch, single-throw, 30 A, NEMA 1, Indoor, Painted steel, Two-pole, Two-wire, 240 V
SKU: #162494
Part: #DG221UGB
UPC: 782113120102
Total Price: $95.23 per each Sold in increments of 1 each
Description
Eaton General duty non-fusible safety switch, 30 A, NEMA 1, Indoor, Painted steel, Two-pole, Two-wire, 240 V - Safety Switch
This Eaton general duty non-fusible safety switch is designed for indoor use and provides reliable electrical disconnect functionality for commercial and industrial applications. It is suitable for electrical distributors and switchgear suppliers requiring a durable and compact solution for wire and cable management and lighting solutions. The switch features a painted steel enclosure rated NEMA 1 for indoor environments and supports two-pole, two-wire, 240 V circuits with a 30 ampere rating.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: DG221UGB
- Amperage: 30 amperes
- Number of Poles: 2
- Voltage: 240 V
- Enclosure Material: Painted Steel
- Enclosure Rating: NEMA 1 (Indoor)
- Dimensions (W x H x L): 6.38 in x 10.69 in x 6.88 in
- Product Weight: 6.0 lbs
- UPC: 782113120102
Features
- General duty non-fusible design for basic disconnect applications
- Single-throw switch mechanism for straightforward ON/OFF operation
- Durable painted steel enclosure suitable for indoor installation
- Compact size facilitating easy integration into electrical distribution systems
- Factory-installed ground lug for safe grounding
- Compatible with standard Eaton accessories and modifications via Flex Center
