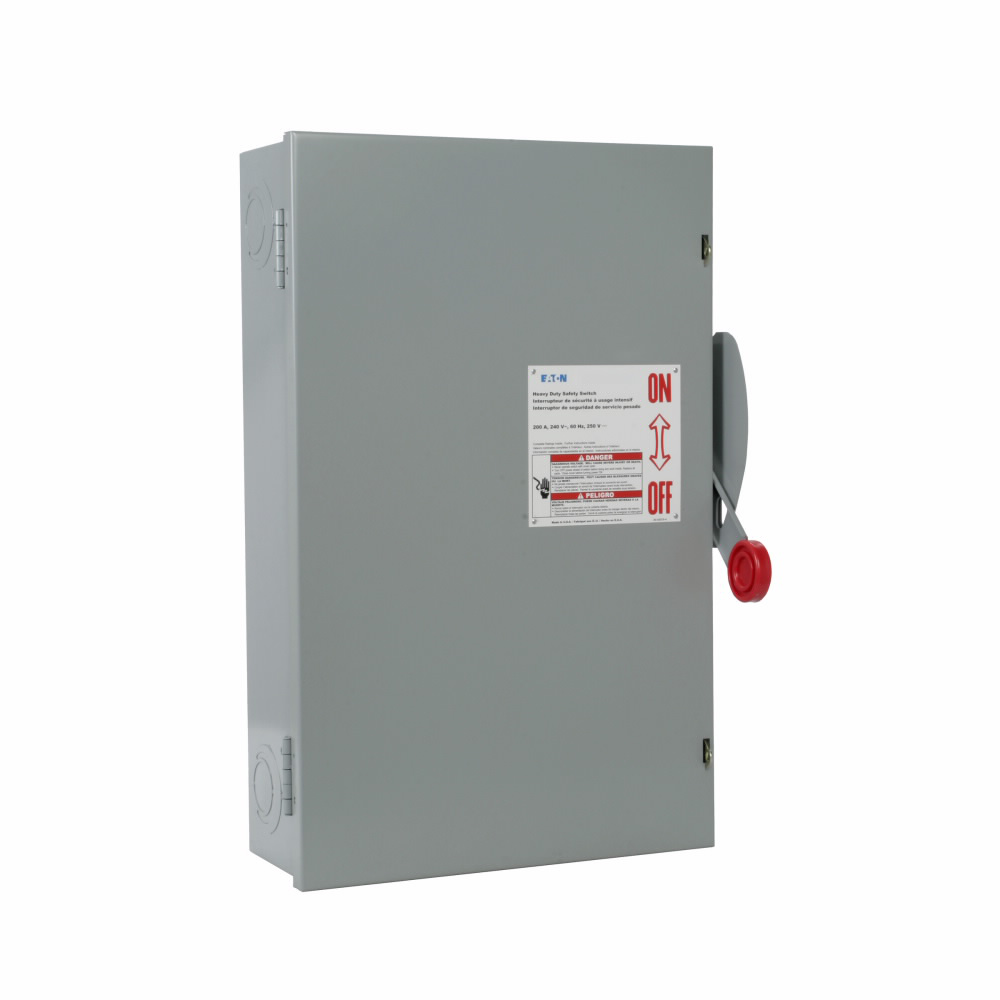

Eaton General duty non-fusible safety switch, single-throw, 200 A, NEMA 1, Indoor, Painted steel, Three-pole, Three-wire, 240 V
SKU: #162852
Part: #DG324UGK
UPC: 782113213552
Eaton General duty non-fusible safety switch, single-throw, 200 A, NEMA 1, Indoor, Painted steel, Three-pole, Three-wire, 240 V
SKU: #162852
Part: #DG324UGK
UPC: 782113213552
Description
Eaton General Duty Non-Fusible Safety Switch, 200 A, NEMA 1, Indoor, Painted Steel
This Eaton general duty non-fusible safety switch is designed for reliable electrical distribution and control in indoor commercial applications. It is suitable for use by electrical distributors and switchgear suppliers requiring robust safety switching solutions. The switch supports a 200 ampere rating at 240 volts, featuring a single-throw mechanism with three poles and three wires, housed in a painted steel enclosure rated for NEMA 1 indoor environments.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: DG324UGK
- Amperage: 200 amperes
- Voltage: 240 V
- Poles: Three-pole
- Wires: Three-wire
- Switch Type: Single-throw
- Enclosure Material: Painted Steel
- Enclosure Rating: NEMA 1 (Indoor)
- Dimensions (W x H x D): 16 in x 24.75 in x 11.25 in
- Product Weight: 48 lbs
- UPC: 782113213552
Features
- Heavy-duty general duty design suitable for commercial electrical distribution
- Non-fusible switch providing reliable disconnect functionality
- Painted steel enclosure ensures durability and indoor protection
- Three-pole, three-wire configuration supports standard 240 V applications
- Single-throw operation for straightforward on/off switching
- Compact footprint with industry-standard dimensions for easy integration
- Factory-installed ground lug for enhanced safety
