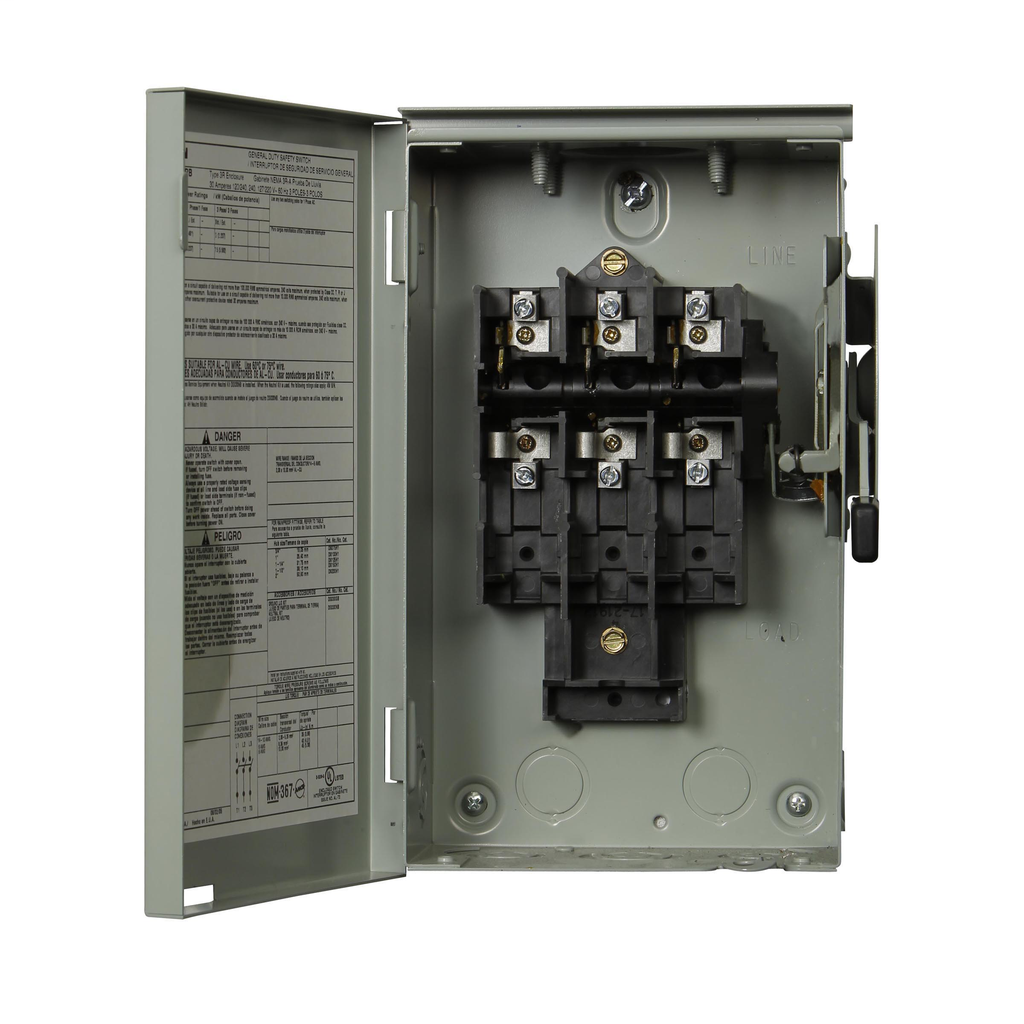

The Eaton general duty non-fusible safety switch provides reliable power disconnection for three-phase electrical systems. This three-pole safety switch features a NEMA 3R rainproof enclosure for industrial applications requiring weatherproof protection.

• Enclosure: NEMA 3R rainproof design with painted galvanized steel build for superior weather resistance and durability
• Rating: Handles thirty amperes at two hundred forty volts for consistent and dependable power management in demanding environments
• Configuration: Three-pole, three-wire, single-throw design engineered for efficient three-phase electrical system integration
• Dimensions: Measures 10.81 inches x 6.88 inches x 6.38 inches
• Weight: Six pounds for straightforward installation in various industrial applications

Specifications

• Height: 10.81 IN
• Length: 6.88 IN
• Width: 6.38 IN
• Weight: 6 LB
• Type: Non-fusible, single-throw
• Amperage Rating: 30A
• Enclosure: NEMA 3R, Rainproof
• Enclosure Material: Painted galvanized steel
• Fuse Configuration: Non-fusible
• Number Of Poles: Three-pole
• Number Of Wires: Three-wire
• Product Category: General duty safety switch
• Voltage Rating: 240V
• Notes: WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
