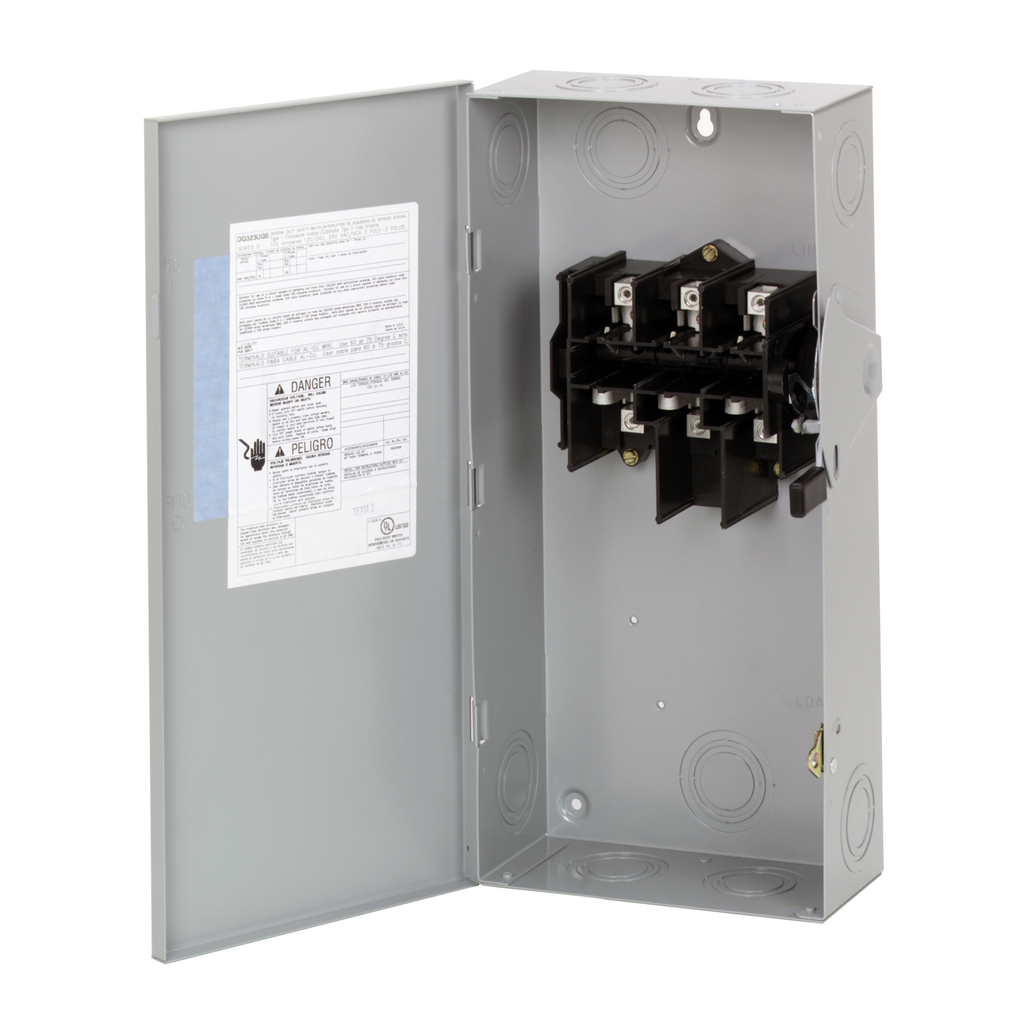

Eaton general duty non-fusible safety switch
SKU: #162798
Part: #DG323UGB
UPC: 782113144368
Eaton general duty non-fusible safety switch
SKU: #162798
Part: #DG323UGB
UPC: 782113144368
Description
Specifications
- Height: 18.81 IN
- Length: 7.38 IN
- Width: 9.13 IN
- Weight: 12 LB
- Type: Non-fusible, single-throw
- Amperage Rating: 100A
- Enclosure: NEMA 1, Indoor
- Enclosure Material: Painted steel
- Fuse Configuration: Non-fusible
- Number Of Poles: Three-pole
- Number Of Wires: Three-wire
- Product Category: General duty safety switch
- Voltage Rating: 240V
- Notes: WARNING! Switch is not approved for service entrance unless a neutral kit is installed.
Downloads
idcplg.pdfDG323UGB.a
