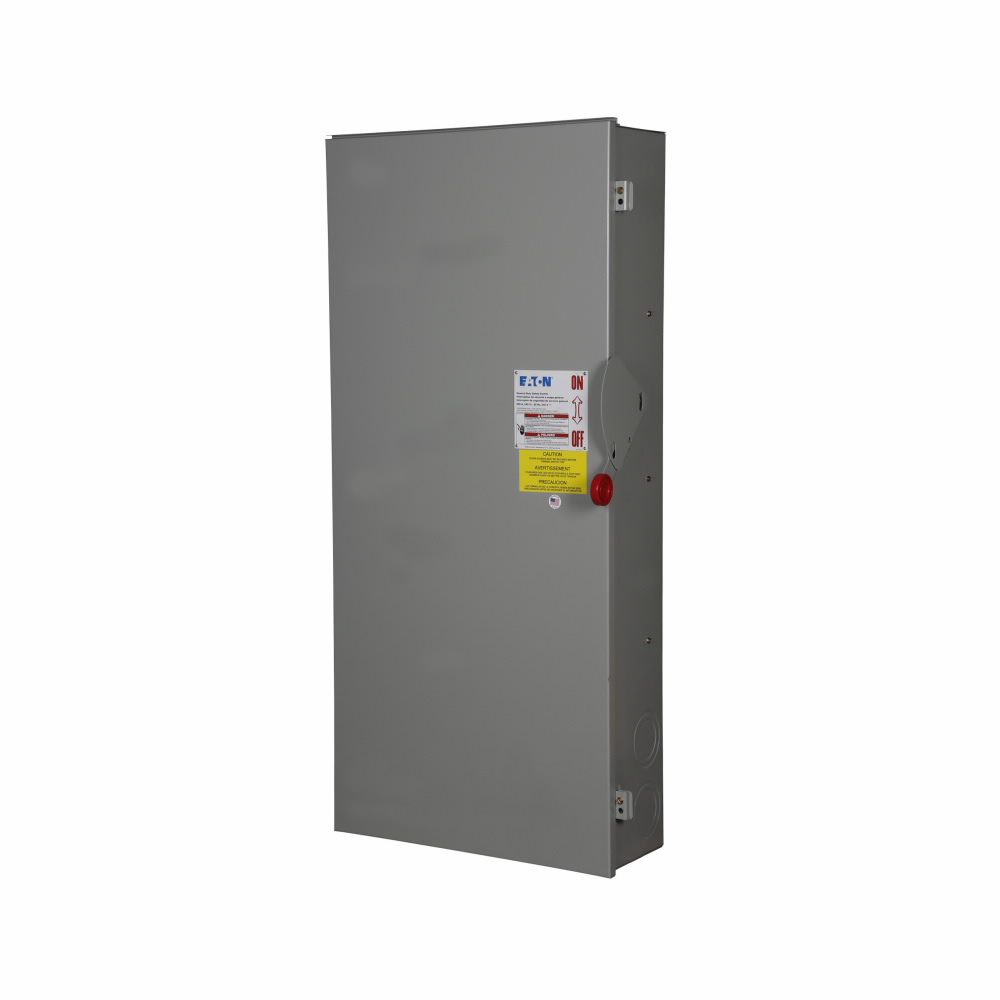

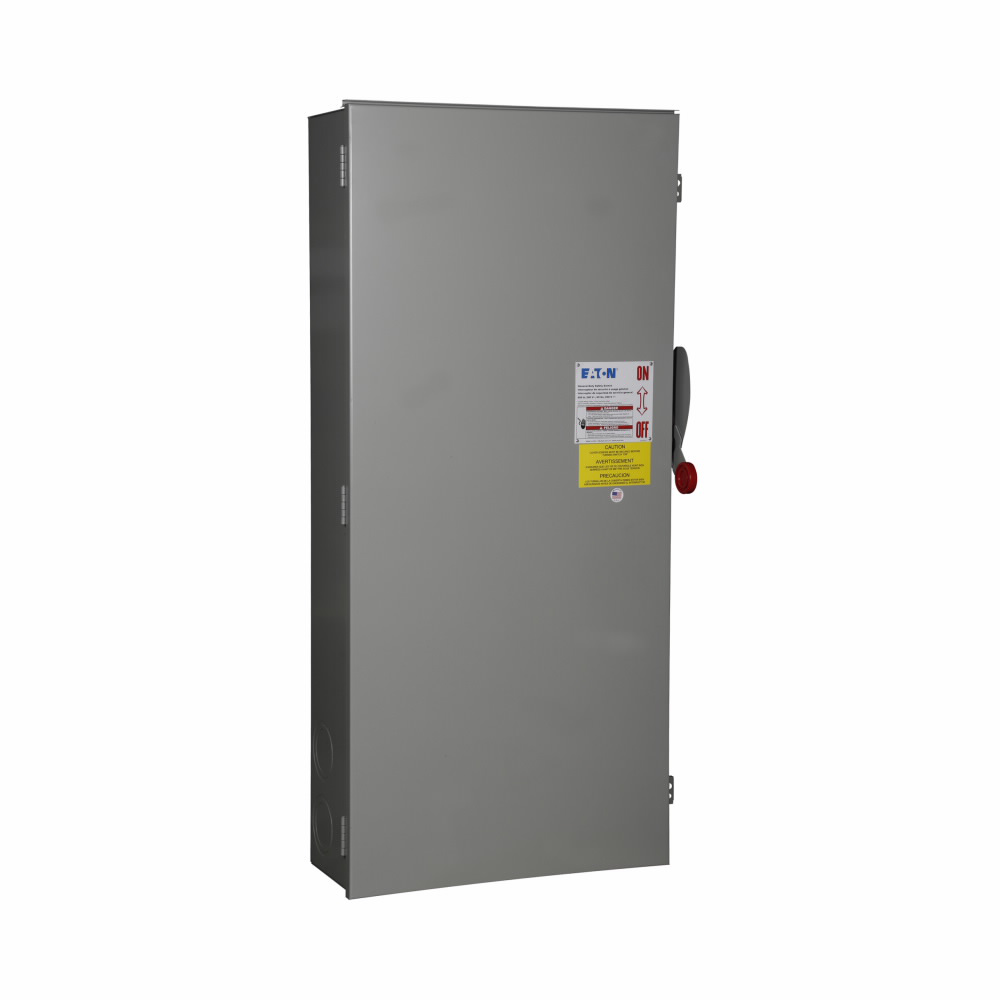

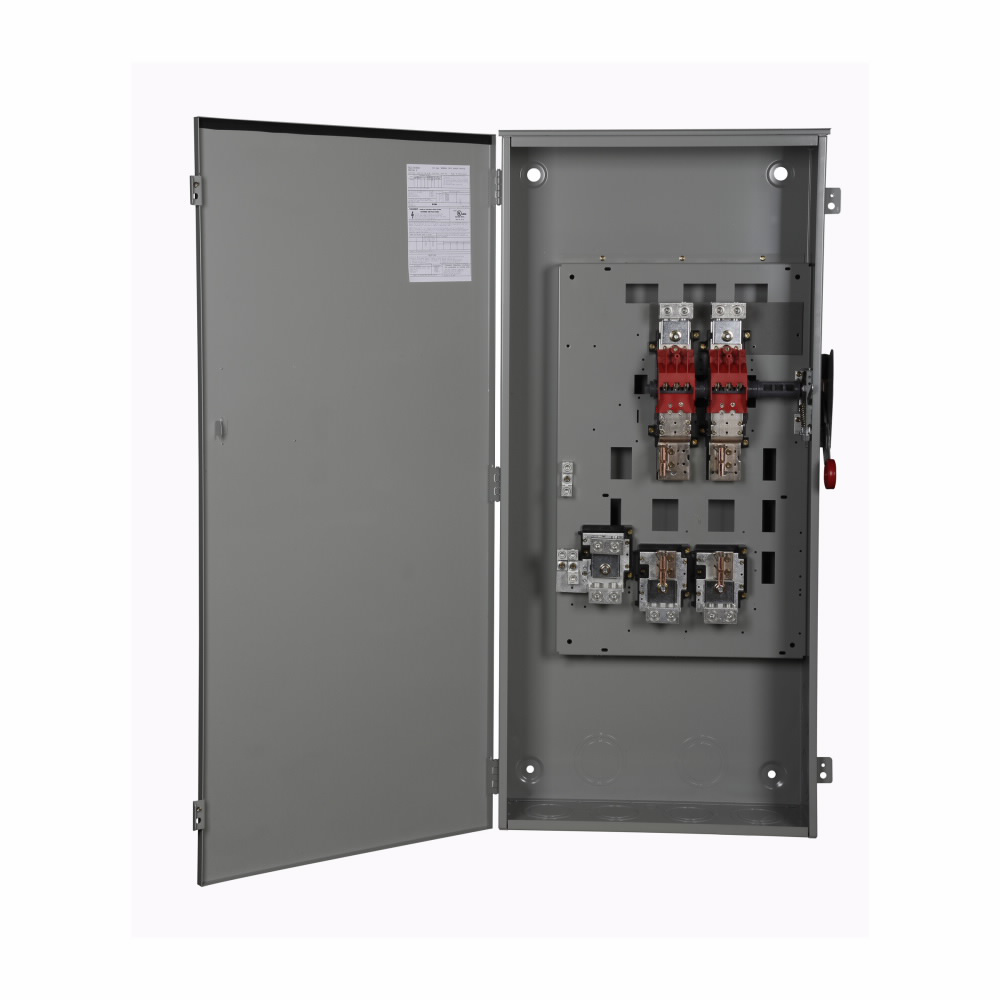

Eaton General Duty Cartridge Fuse Safety Switch 600 A NEMA 3R

The Eaton General Duty cartridge fuse safety switch is designed for reliable electrical distribution and protection in commercial and industrial settings. It features a 600 ampere rating and a NEMA 3R enclosure suitable for outdoor and indoor applications requiring protection against rain and sleet. The switch is fusible with neutral, accommodating Class H fuses, and is configured as a two-pole, three-wire device operating at 240 volts. Constructed with a painted galvanized steel enclosure, it offers durability and corrosion resistance. This product is ideal for electrical distributors and switchgear suppliers seeking dependable lighting solutions, wire and cable protection, and power distribution components.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: DG226NRK
• Amperage: 600 amperes
• Voltage: 240 V
• Number of Poles: 2
• Enclosure Type: NEMA 3R
• Enclosure Material: Painted Galvanized Steel
• Dimensions (W x H x D): 24 in x 52.7 in x 14.25 in
• Product Weight: 155 lbs
• Wire Configuration: Three-wire
• Fuse Class: Class H

Features

• General duty safety switch with cartridge fuse protection
• Fusible with neutral for enhanced circuit protection
• Painted galvanized steel enclosure provides corrosion resistance and durability
• NEMA 3R rating suitable for outdoor and indoor use
• Two-pole design for reliable switching and isolation
• Compatible with Class H fuses for high interrupting capacity
• Designed for 240 V applications in commercial distribution systems
