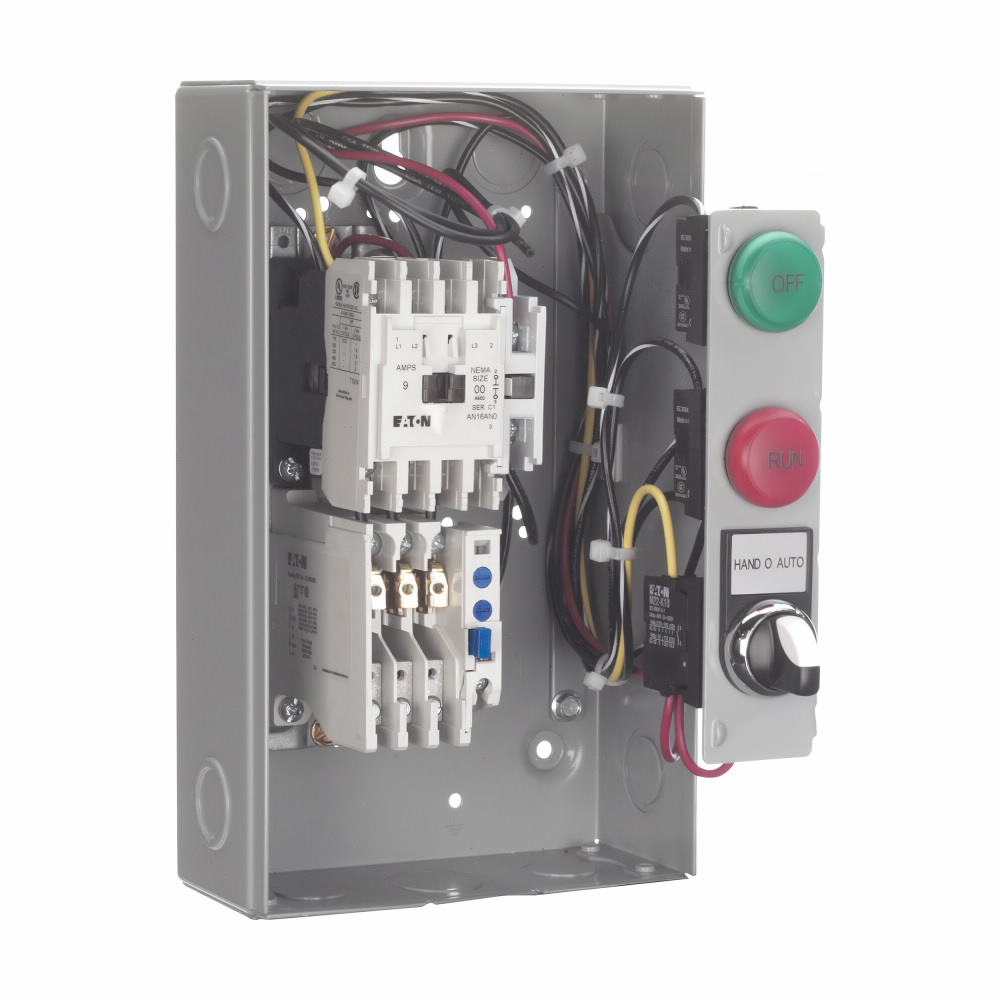

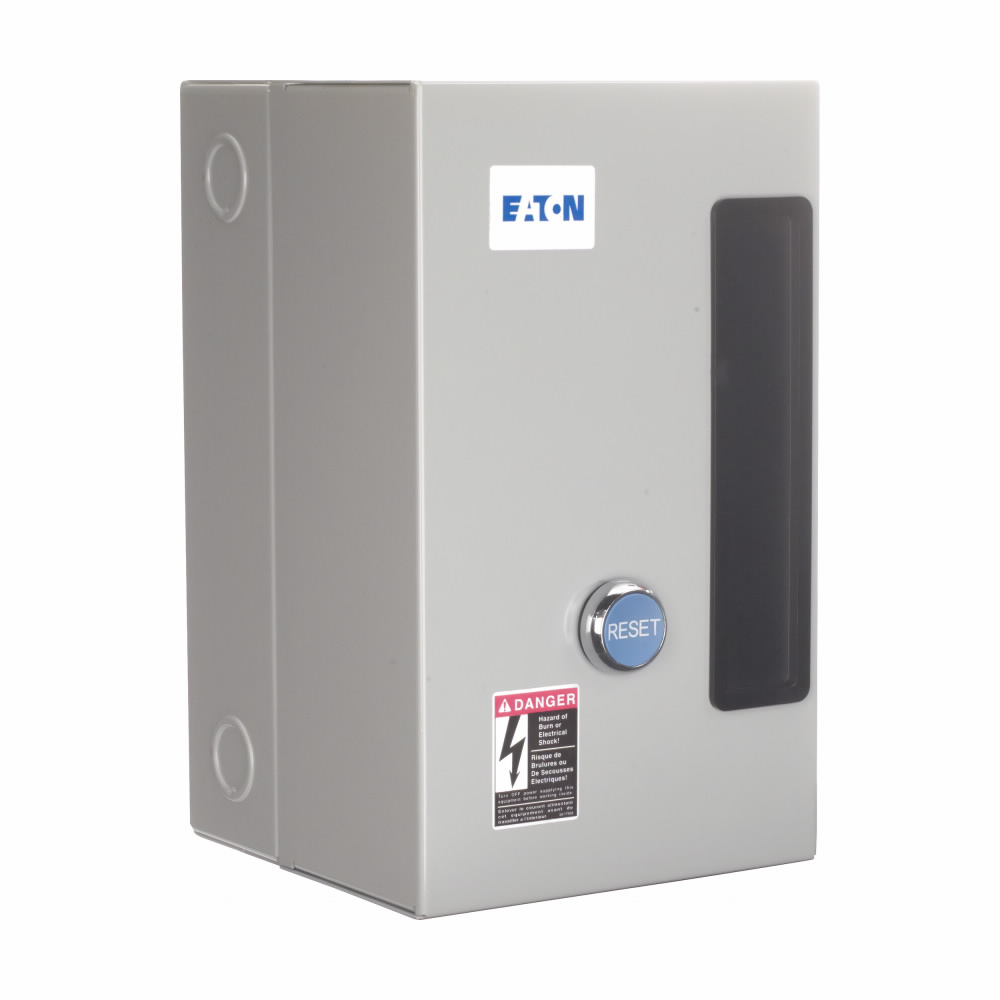

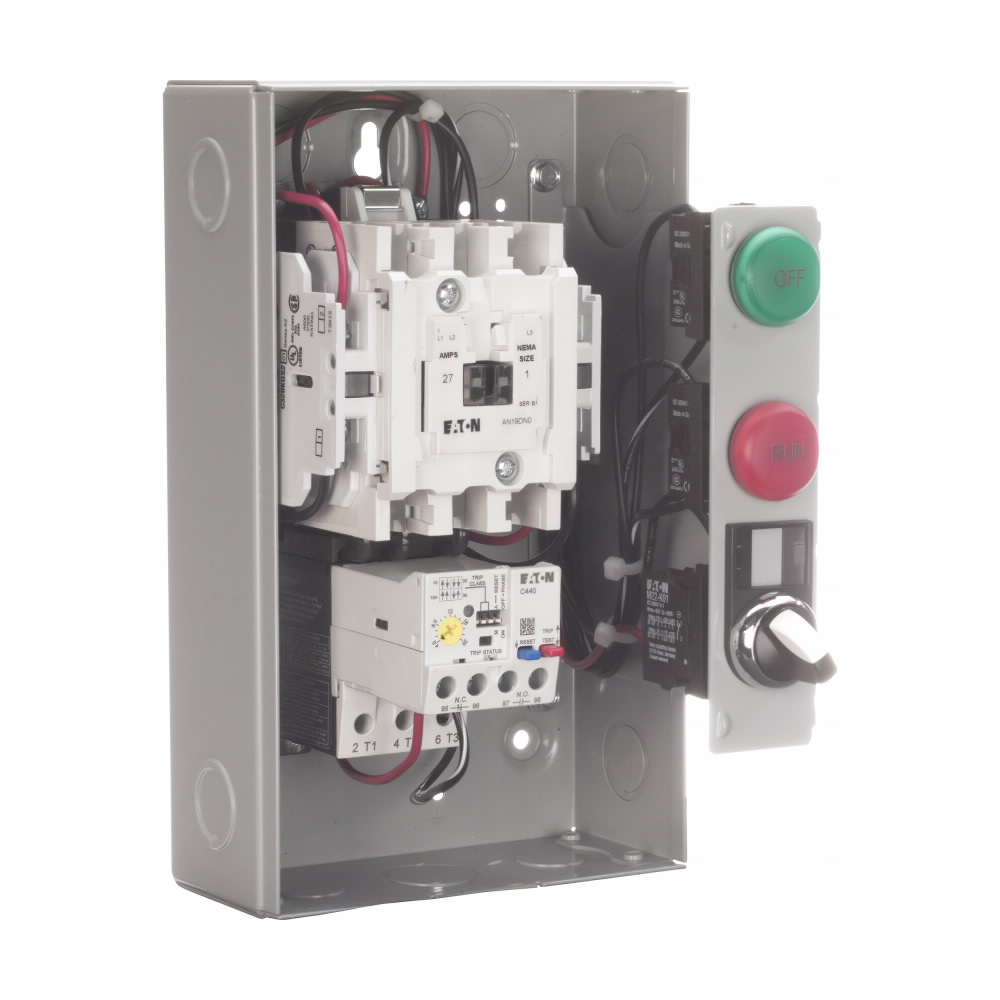

Eaton Freedom NEMA Motor Control Starter - NEMA Size 0

The Eaton Freedom NEMA motor control starter is designed for full voltage motor control applications, suitable for use at 440V/50 Hz and 460V/60 Hz power supplies. This NEMA 1 rated non-combination, non-reversing starter is engineered for industrial and commercial electrical control systems. It provides reliable motor starting, stopping, and protection functions, making it a critical component for electrical distributors, lighting solutions, wire and cable systems, and switchgear suppliers requiring robust motor control equipment.

Specifications

• Manufacturer: Eaton
• Manufacturer Part Number: ECN0501CAA
• Coil Voltage: 440 volts
• Voltage Frequency: 50 Hz / 60 Hz
• NEMA Size: 0
• Type: Non-combination, Non-reversing starter
• Enclosure Rating: NEMA 1 (Indoor use)
• Dimensions (W x H x L): 7.8 in x 7.4 in x 11.6 in
• Product Weight: 5.5 lbs
• UPC: 782114015810

Features

• Compact and space-saving design with high strength, impact, and temperature-resistant insulating materials
• Designed for easy installation and wiring with top-located coil terminals for convenient access
• Screw-type power terminals with captive, backed-out self-lifting pressure plates reduce wiring time
• Horizontal or vertical mounting options for application flexibility
• Meets or exceeds UL, CSA, IEC, VDE, and other international standards for safety and reliability
• Includes adjustable bimetallic ambient compensated overload relays (optional) and encapsulated dual voltage/frequency magnet coils
• Certified for Type 2 coordination, suitable for short-circuit fault currents up to 100,000 A, allowing for further use after fault clearance
• Available with a variety of cover control options and accessories for customized motor control solutions
