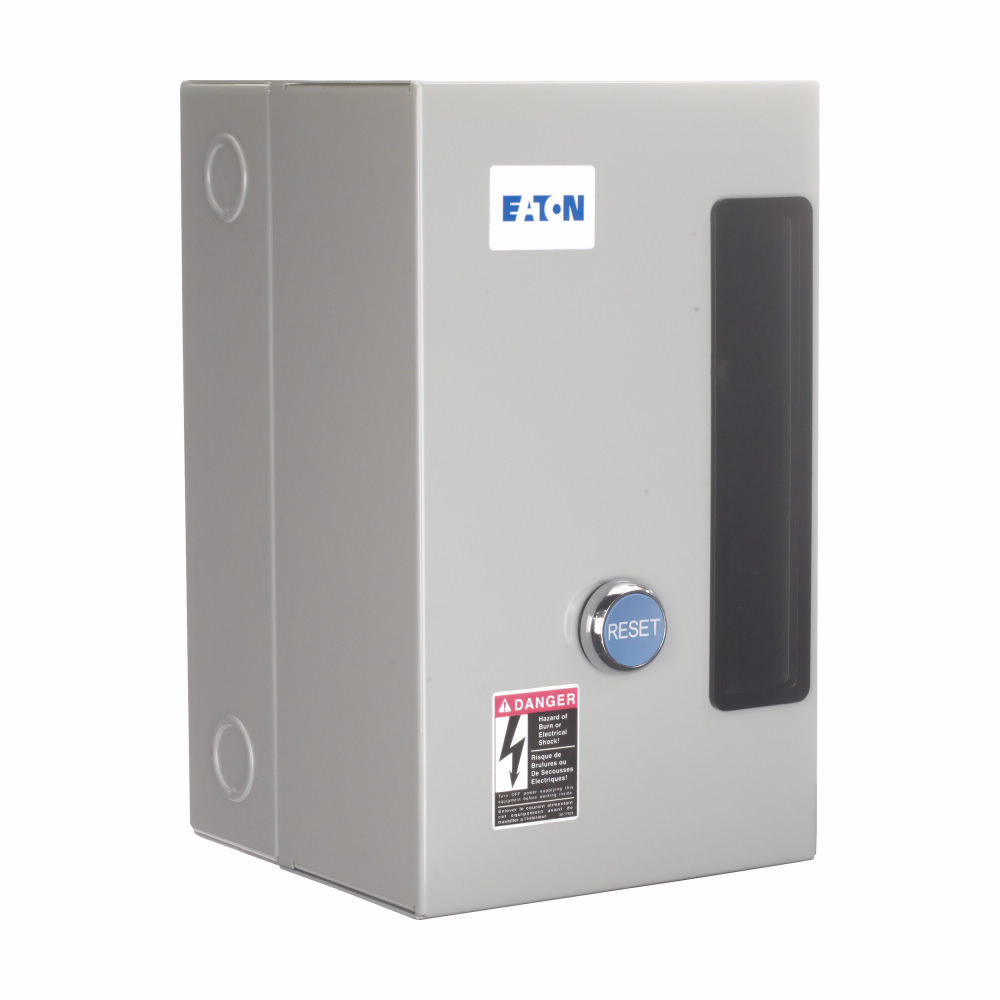

Eaton Freedom NEMA Motor Control Starter – Non-Reversing Starter

The Eaton Freedom NEMA motor control starter is designed for single-phase motor control applications, offering reliable full voltage motor starting and protection. This non-combination, non-reversing starter is intended for use in industrial and commercial electrical distribution systems. It is suitable for applications requiring a compact, rugged motor control solution compliant with NEMA standards. Eaton, a leading electrical distributor and switchgear supplier, provides this starter as part of its comprehensive motor control and enclosed control product portfolio.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: ECN05A1AAA
• Coil Voltage: 110 volts
• Number of Phases: 1
• Enclosure Type: NEMA 1
• NEMA Size: 00
• Type: Non-combination non-reversing starter
• Weight: 6.3 lbs
• Dimensions (W x H x L): 7.25 in x 7.4 in x 11.5 in
• UPC: 782114015612

Features

• Compact, space-saving design with high strength, impact and temperature resistant insulating materials

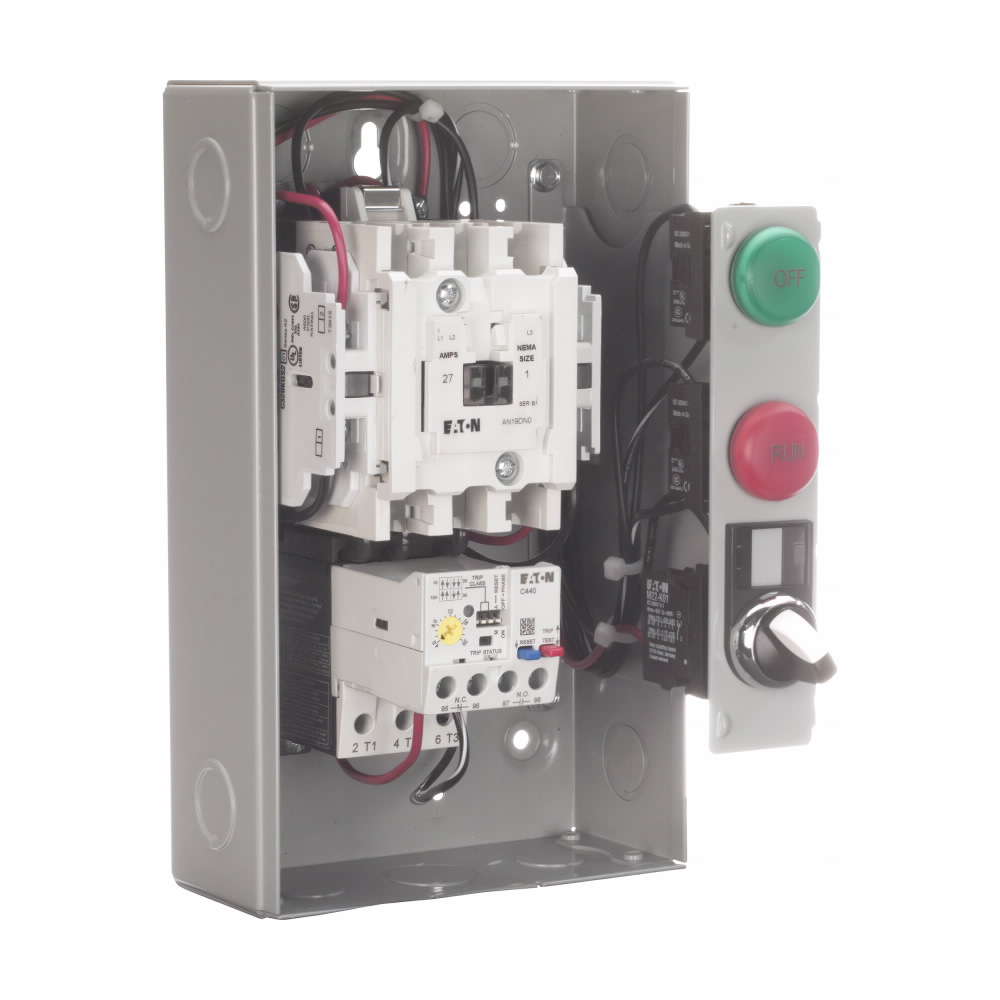

• C440 solid-state electronic overload providing reliable, accurate motor protection with selectable trip class and communication capabilities
• Adjustable bimetallic ambient compensated overload relays with interchangeable heater packs

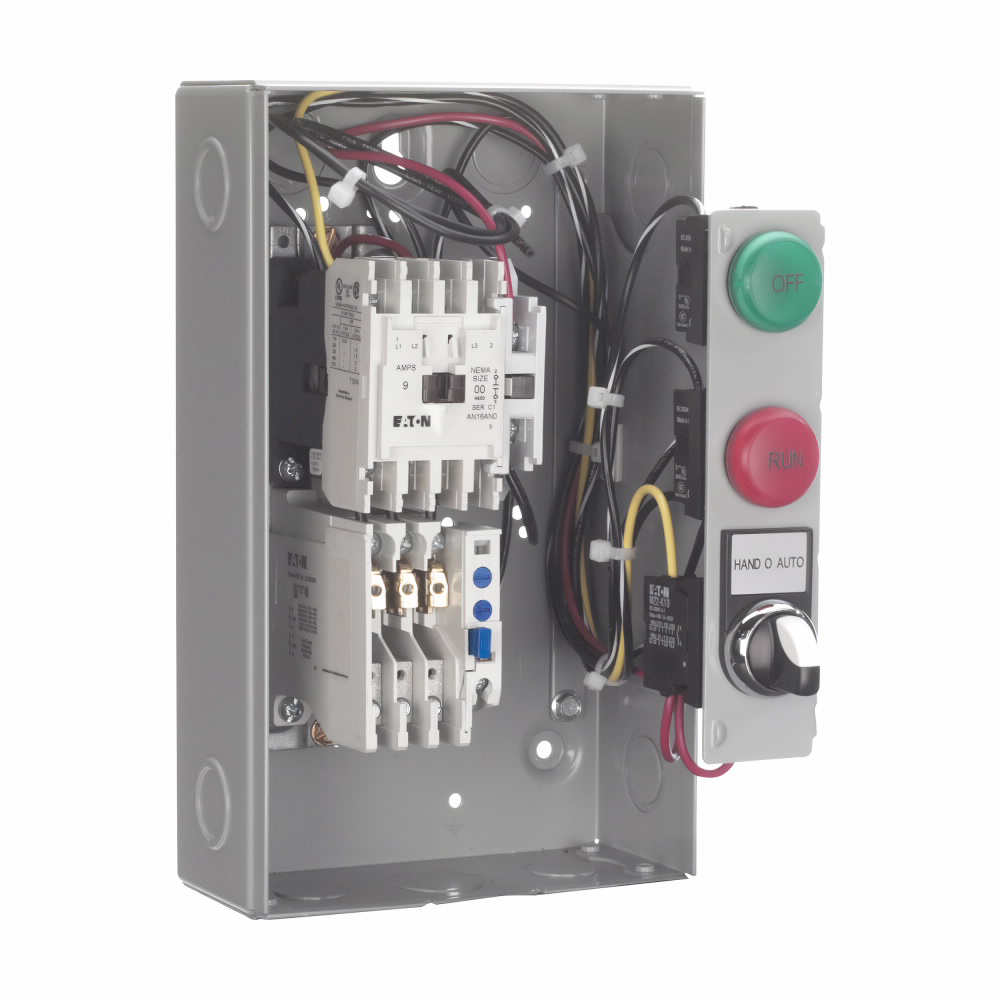

• Straight-through wiring with line lugs at top and load lugs at bottom for reduced wiring time
• Top-located coil terminals for easy access and flexible wiring
• Designed to meet or exceed UL, CSA, IEC, VDE, BS and other international standards and listings
• UL and cUL Listed, ABS Type Approved, OSHPD Certified
• Certified Type 2 Coordination for short-circuit fault currents up to 100,000 A, allowing the starter to be suitable for further use after a short-circuit event

Downloads & Links

• Eatons Volume 10-Enclosed Control
