Eaton Freedom NEMA auxiliary contact, Used on Starter and Contactors, 1NO 1NC contacts, Side mounting
SKU: #161021
Part: #C320KGS3
UPC: 782113413501
Eaton Freedom NEMA auxiliary contact, Used on Starter and Contactors, 1NO 1NC contacts, Side mounting
SKU: #161021
Part: #C320KGS3
UPC: 782113413501
Description

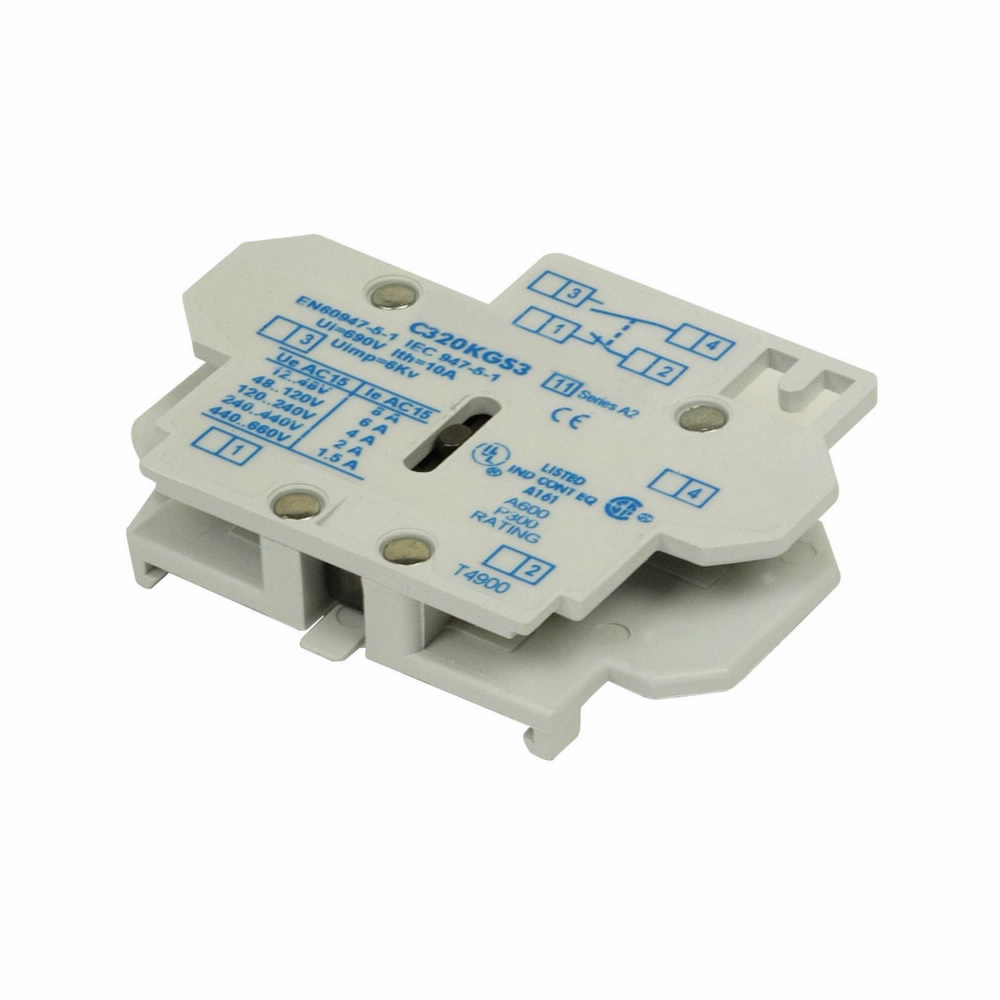

Eaton Freedom NEMA Auxiliary Contact - Auxiliary Contact for Electrical Distribution
The Eaton Freedom NEMA auxiliary contact (Manufacturer Part #: C320KGS3) is designed for use with starters and contactors, providing reliable auxiliary switching functionality. This side-mounted auxiliary contact features a 1NC (one normally closed) contact configuration, suitable for integration in control panels and electrical distribution systems. Eaton, a recognized electrical distributor and switchgear supplier, offers this component as part of its Freedom Series, supporting industrial, HVAC, pump, and project construction applications where auxiliary contact switching is required.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: C320KGS3
- Contact Configuration: 1NC
- Dimensions: 4 in (Length) x 2.5 in (Width) x 1.1 in (Height)
- Weight: 0.1300 lbs
- Mounting: Side mounting
Features
- Designed for use with Eaton Freedom Series starters and contactors
- Reliable 1 normally closed (1NC) auxiliary contact for control applications
- Compact side-mount design for easy installation in electrical panels
- Compatible with NEMA sizes 00 to 2 and IEC sizes A to K
