EATON FDPWS323R FUSIBLE PANELBOARD SWITCH, FDPW, 100A, THREE-POLE, 240 VAC, 250 VDC, 200 KAIC AT
SKU: #411873
Part: #FDPWS323R
UPC: 786679021842
EATON FDPWS323R FUSIBLE PANELBOARD SWITCH, FDPW, 100A, THREE-POLE, 240 VAC, 250 VDC, 200 KAIC AT
SKU: #411873
Part: #FDPWS323R
UPC: 786679021842
Description

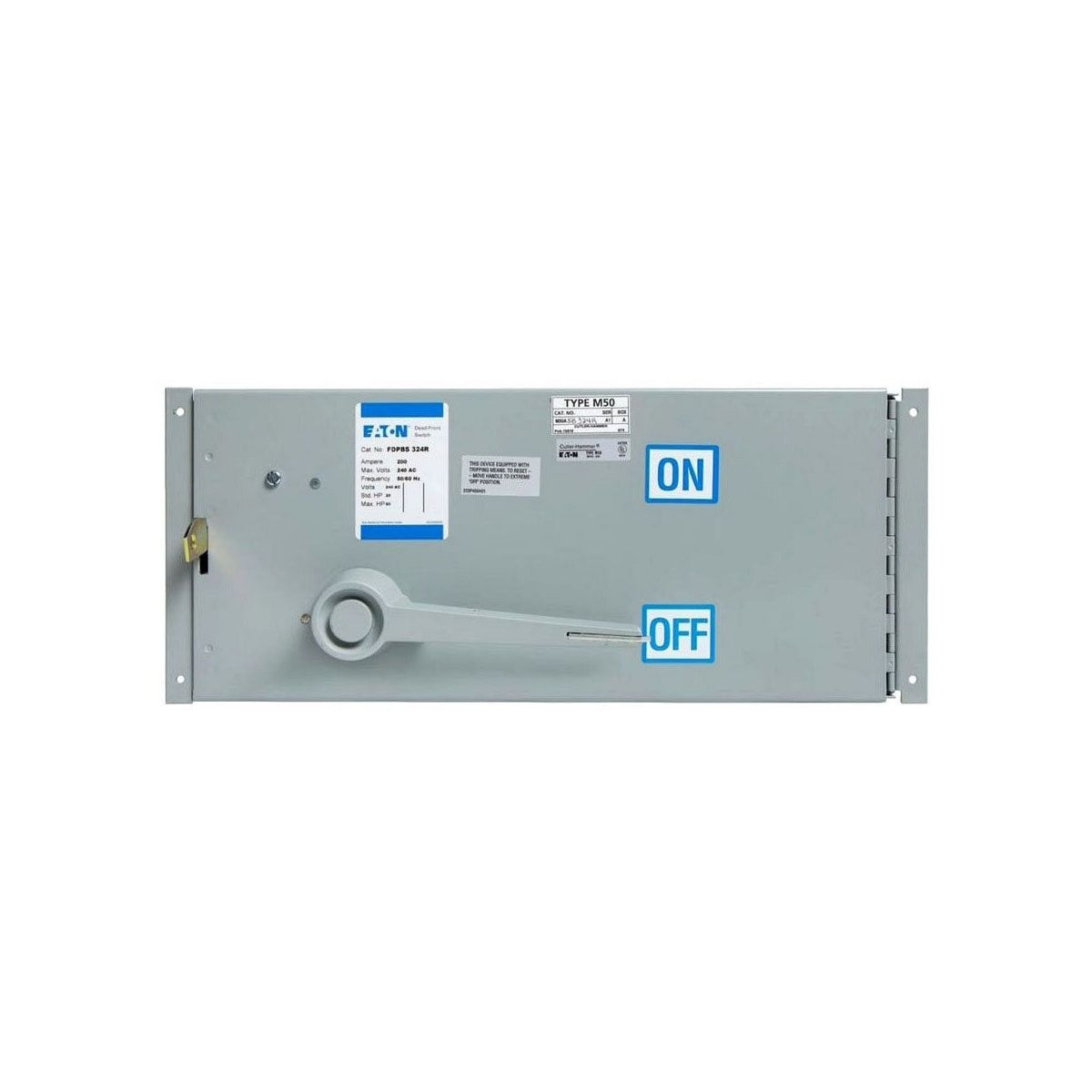

EATON FDPWS323R Fusible Panelboard Switch 100A Three-Pole
The EATON FDPWS323R fusible panelboard switch is designed for commercial, industrial, and service entrance applications to protect and switch feeder and branch circuits. This switch is suitable for electrical distributors and switchgear suppliers requiring reliable, high-interrupting-capacity switching solutions. It supports 100A current at 240 VAC and 250 VDC with a 200 kA interrupting rating, making it compatible with wire and cable systems in demanding electrical installations.
Specifications
- Manufacturer: Eaton
- Model Number: FDPWS323R
- Type: Fusible Panelboard Switch (FDPW)
- Current Rating: 100 Amperes
- Poles: Three-Pole
- Voltage Rating: 240 VAC, 250 VDC
- Interrupting Capacity: 200 kAIC (kiloampere interrupting capacity)
- Product Weight: 14.6 lbs
- UPC: 786679021842
Features
- Quick-make, quick-break switch mechanism housed in a durable sheet steel enclosure
- Designed for installation in PRL4-F or CDP/FDP distribution panelboard chassis
- Maximum interrupting capacity of 200,000 RMS symmetrical amps at 600 VAC
- Interlock mechanism prevents opening the switch cover while in the ON position for safety
- Switch can be padlocked in ON or OFF positions for secure operation
- Suitable for use with Class R and other specified fuse types
