EATON FD3080 EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, F-FRAME, FD, COMPLETE BREAK
SKU: #398785
Part: #FD3080
UPC: 786679305744
EATON FD3080 EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER, F-FRAME, FD, COMPLETE BREAK
SKU: #398785
Part: #FD3080
UPC: 786679305744
Description

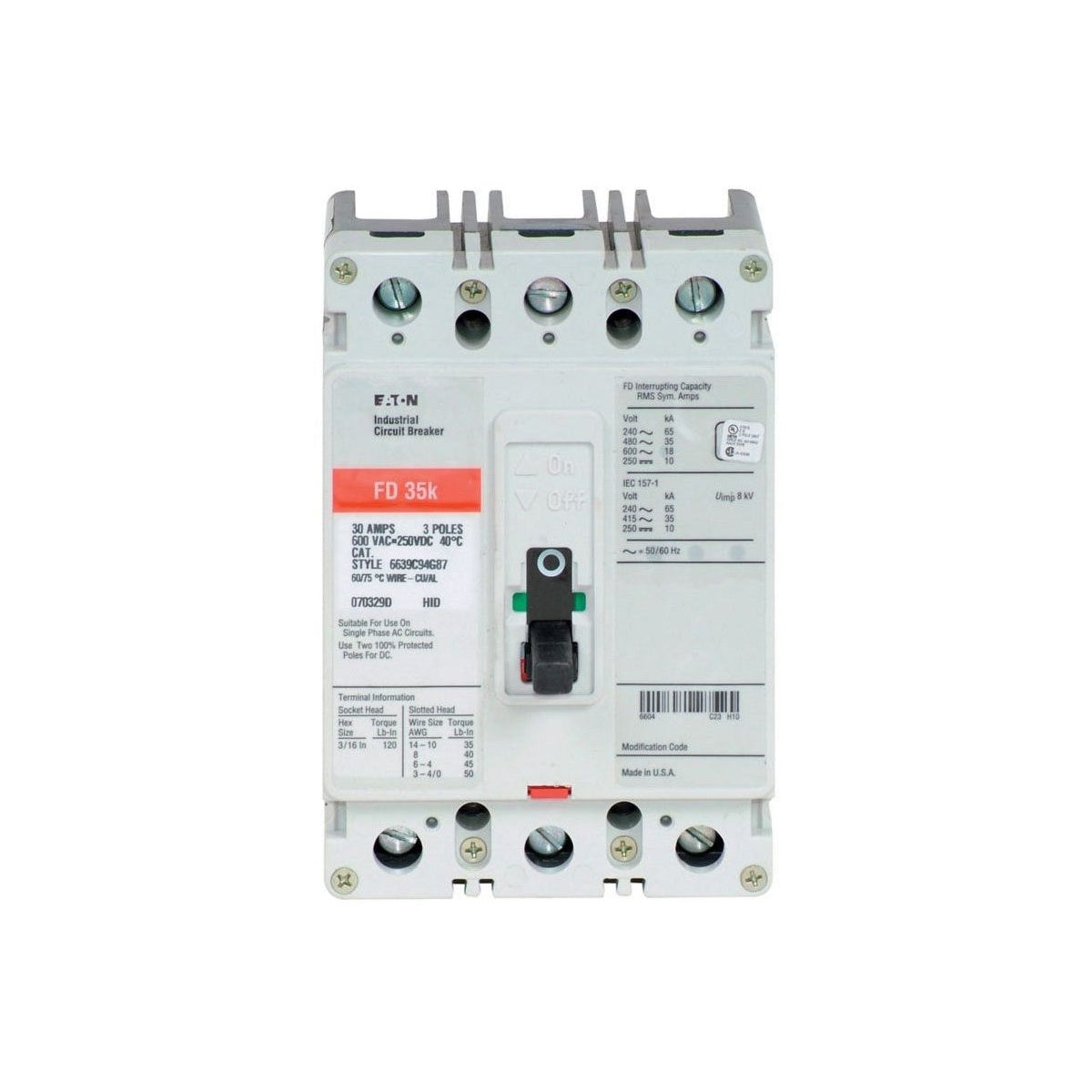

EATON FD3080 EATON SERIES C COMPLETE MOLDED CASE CIRCUIT BREAKER - Molded Case Circuit Breaker
The Eaton FD3080 Series C molded case circuit breaker is a thermal-magnetic, F-frame breaker designed for industrial electrical distribution applications. It offers reliable overcurrent protection for single-phase AC circuits and is suitable for use in lighting solutions, wire and cable protection, and switchgear assemblies. This circuit breaker supports continuous current ratings up to 80 amperes and voltage ratings up to 600 VAC and 250 VDC, making it compatible with a wide range of electrical distributor systems.
Specifications
- Manufacturer: Eaton
- Catalog Number: FD3080
- Frame Type: F-Frame
- Poles: 3
- Continuous Current Rating: 80 Amperes
- Voltage Rating: 600 VAC / 250 VDC
- Interrupting Capacity: 35 kA at 480 VAC, 65 kA at 240 VAC
- Trip Unit Technology: Thermal-Magnetic
- Operating Temperature: 40°C
- UL Listed to UL489 and IEC 157-1 standards
- Suitable for HID (High Intensity Discharge) use
- Weight: 4.5 lbs
Features
- HACR rated for HVAC equipment applications
- Suitable for reverse feed use
- Non-interchangeable trip units for reliable operation
- Includes terminals on load end only for simplified installation
- Factory sealed with internal accessories installed to UL requirements
- Manual operation with ON/OFF handle and push-to-trip button for testing
- Compatible with copper and aluminum wire with recommended torque values
- Designed to meet NEC Article 240.83(d) for switchgear applications
