Eaton Enhanced visible blade single-throw safety switch, Corrosion resistant, 60 A, NEMA 4X, 304 stainless steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
SKU: #163581
Part: #DH362NWK
UPC: 782113206196
Eaton Enhanced visible blade single-throw safety switch, Corrosion resistant, 60 A, NEMA 4X, 304 stainless steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 20, 25/ 30, 50 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
SKU: #163581
Part: #DH362NWK
UPC: 782113206196
Next day delivery
Description

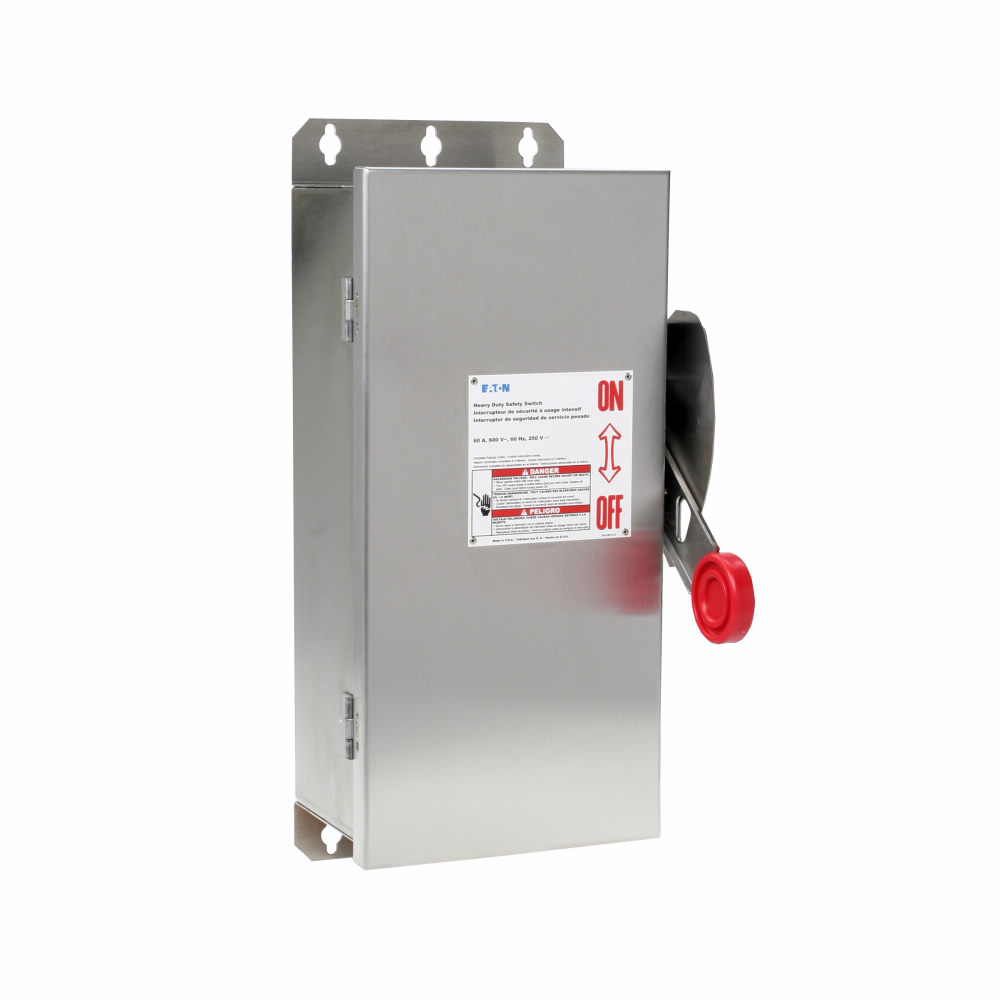

Eaton Enhanced visible blade single-throw safety switch - Heavy-Duty Safety Switch
The Eaton Enhanced Visible Blade Single-Throw Safety Switch is a heavy-duty electrical disconnect designed for safe and reliable power distribution applications. This switch is suitable for industrial and commercial use, providing a visible blade mechanism for enhanced operational safety and maintenance. Ideal for electrical distributors, lighting solutions, wire and cable systems, and switchgear suppliers, it supports up to 60 amperes and 600 volts. The enclosure is corrosion-resistant 304 stainless steel with a NEMA 4X rating, ensuring durability in harsh environments.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: DH362NWK
- Amperage: 60 amperes
- Voltage Rating: 600 V
- Enclosure Material: Stainless Steel (304 grade)
- NEMA Rating: 4X
- Poles: Three-pole
- Wires: Four-wire with neutral
- Fusible: Yes (Class H)
- Max Horsepower: 20 hp at 240V, 25/30 hp at 480V, 50 hp at 600V (1/3 phase)
- Wire Size Range: #14 - #2 Copper/Aluminum
- Dimensions (W x H x D): 7.73 in x 19.08 in x 10.2 in
- Product Weight: 22 lbs
- UPC: 782113206196
Features
- Enhanced visible blade design for clear ON/OFF status verification
- Corrosion-resistant 304 stainless steel enclosure suitable for harsh environments
- Fusible safety switch with Class H fuses for reliable circuit protection
- Rated for 600 VAC maximum voltage and 60 amperes continuous current
- Triple padlocking capability for secure operation
- Mechanically interlocked door to prevent accidental contact with live components
- Compatible with #14 to #2 copper or aluminum wire
- Designed to meet UL 98 standards for enclosed deadfront switches and UL 50 for enclosures
