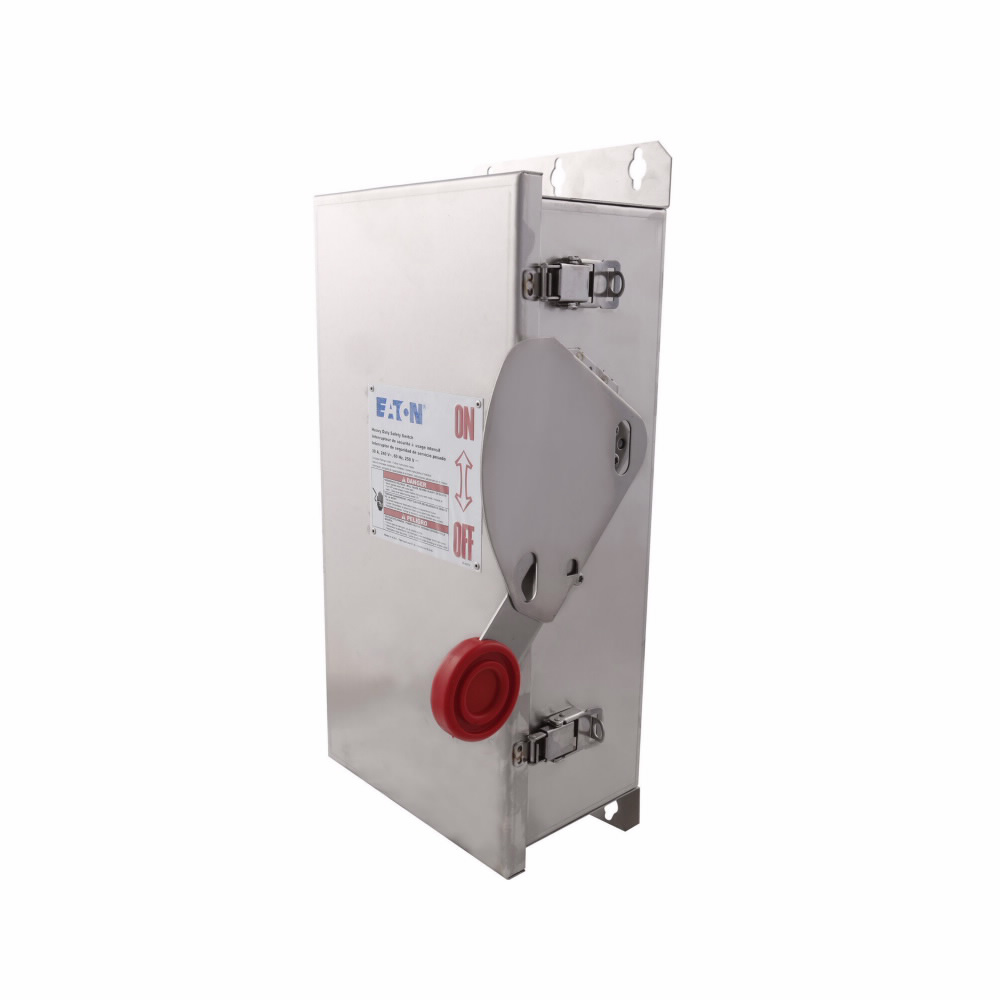

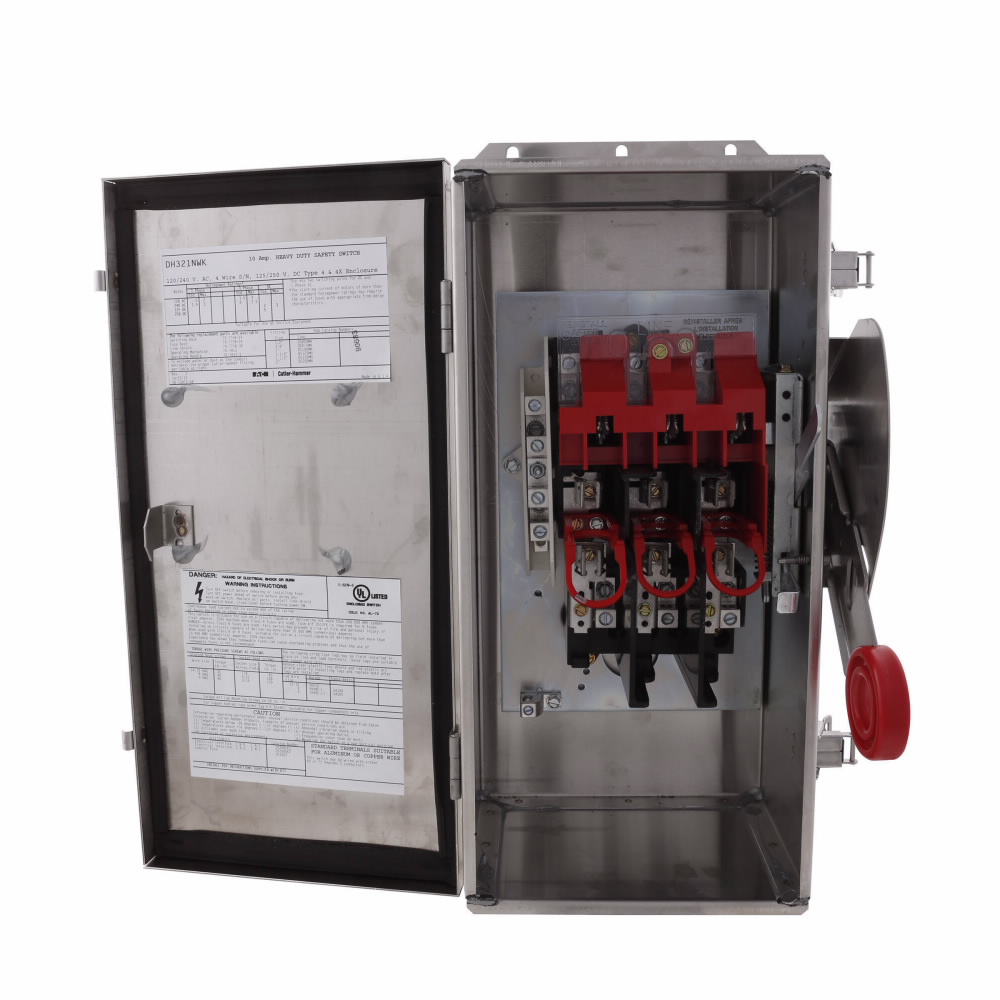

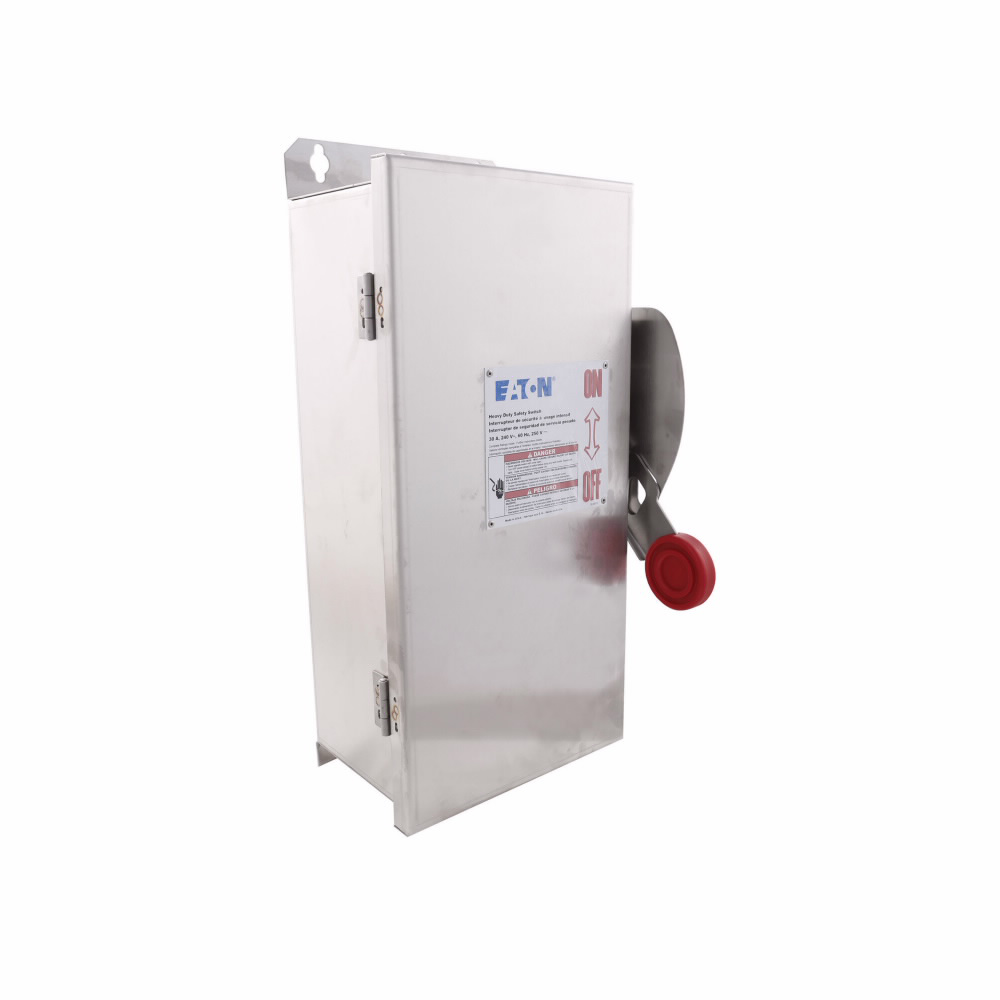

Eaton Enhanced visible blade single-throw safety switch, Corrosion resistant, 30 A, NEMA 4X, 304 stainless steel, Class H, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 1.5, 3/ 3, 7.5/ 5 hp (1,3PH @Std/TD, 250 Vdc), #14-#2 Cu/Al
SKU: #395329
Part: #DH321NWK
UPC: 782113205441
Eaton Enhanced visible blade single-throw safety switch, Corrosion resistant, 30 A, NEMA 4X, 304 stainless steel, Class H, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 1.5, 3/ 3, 7.5/ 5 hp (1,3PH @Std/TD, 250 Vdc), #14-#2 Cu/Al
SKU: #395329
Part: #DH321NWK
UPC: 782113205441
Description
Eaton Enhanced Visible Blade Single-Throw Safety Switch – Heavy-Duty Electrical Safety Solution
This Eaton Enhanced visible blade single-throw safety switch is designed for industrial and commercial electrical distribution applications. It serves as a critical component for safely disconnecting electrical power circuits, suitable for use by electrical distributors, lighting solutions providers, wire and cable installers, and switchgear suppliers. The switch features corrosion-resistant construction with a 304 stainless steel enclosure rated for NEMA 4X, ensuring durability in harsh environments.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: DH321NWK
- Amperage: 30 amperes
- Voltage: 240 V
- Enclosure Material: Stainless Steel (304 grade)
- Poles: Three-pole
- Wires: Four-wire
- Dimensions (HxWxD): 19.08 in x 7.73 in x 10.22 in
- Product Weight: 22 lbs
- Maximum Horsepower: 1.5 HP (3-phase at standard/TD, 250 Vdc)
- Wire Size Range: #14–#2 Cu/Al
- Class: H
- Neutral: Included
Features
- Enhanced visible blade for clear ON/OFF status indication
- Heavy-duty single-throw design for reliable power disconnection
- Corrosion-resistant 304 stainless steel enclosure rated NEMA 4X for indoor/outdoor use
- Suitable for use in demanding electrical distribution and lighting solutions applications
- Compatible with copper and aluminum conductors (#14–#2 AWG)
- Three-pole, four-wire configuration with neutral for balanced load management
- Compact dimensions enabling easy integration into existing electrical systems
