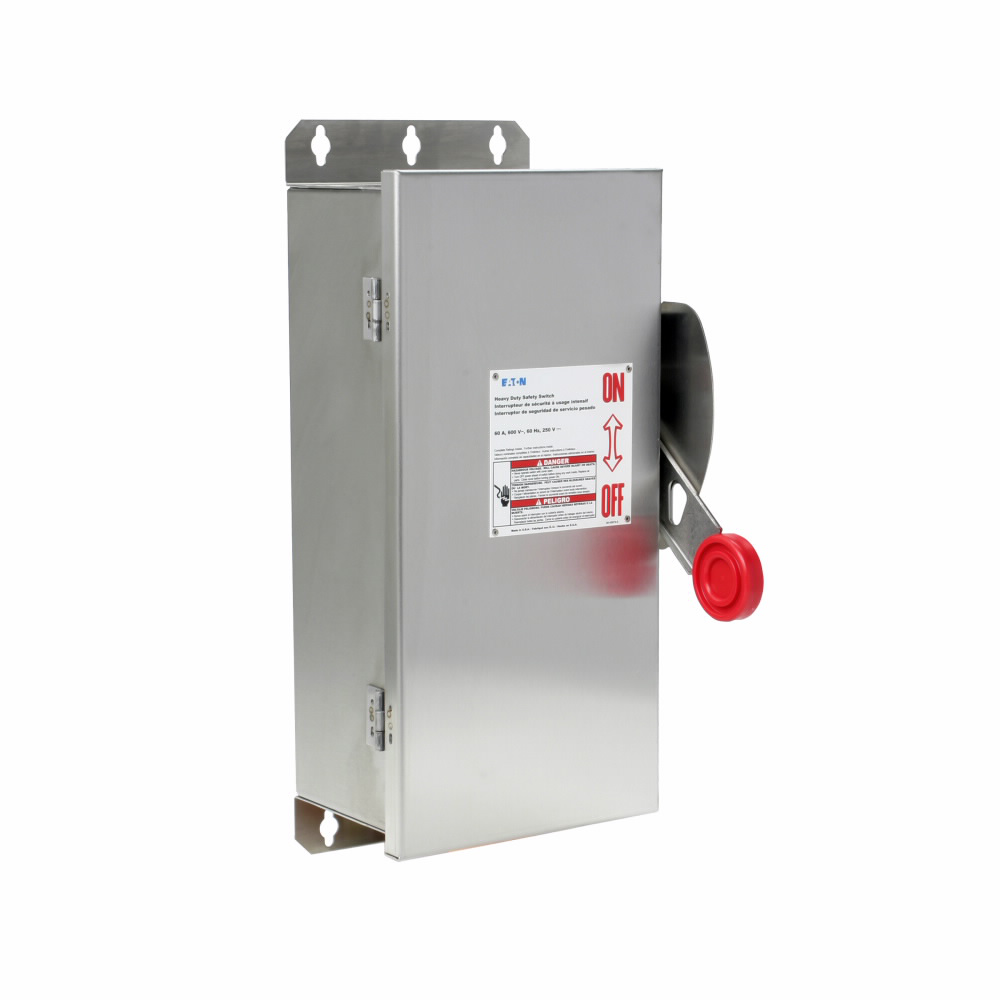

Eaton Enhanced visible blade single-throw safety switch, Corrosion resistant, 30 A, NEMA 4X, 304 stainless steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
SKU: #163485
Part: #DH361NWK
UPC: 782113211770
Eaton Enhanced visible blade single-throw safety switch, Corrosion resistant, 30 A, NEMA 4X, 304 stainless steel, Class H, Fusible with neutral, Three-pole, Four-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
SKU: #163485
Part: #DH361NWK
UPC: 782113211770
Description
Eaton Enhanced Visible Blade Single-Throw Safety Switch - Heavy-Duty Fusible Safety Switch
The Eaton Enhanced visible blade single-throw safety switch is a heavy-duty electrical safety switch designed for industrial and commercial power distribution applications. It features a corrosion-resistant 304 stainless steel enclosure rated to NEMA 4X standards, making it suitable for harsh environments requiring robust protection. This fusible safety switch supports 30 amperes and is suitable for use with #14 to #2 copper or aluminum wire. It is a three-pole, four-wire switch rated for 600 volts, with a maximum horsepower rating of 7.5 hp at 240 V and up to 20 hp at 480/600 V. Eaton’s safety switches are commonly distributed by electrical distributors and used in lighting solutions, wire and cable management, and switchgear assemblies.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: DH361NWK
- Amperage: 30 amperes
- Voltage Rating: 600 V
- Enclosure Material: Stainless Steel (304 grade)
- Enclosure Type: NEMA 4X
- Poles: Three-pole
- Wires: Four-wire
- Max Horsepower: 7.5 hp (240 V), 10/15/20 hp (480/600 V)
- Wire Size Range: #14 - #2 Cu/Al
- Dimensions (W x H x D): 7.73 in x 19.08 in x 10.22 in
- Product Weight: 22 lbs
- Fuse Type: Fusible with neutral
Features
- Enhanced visible blade design for clear ON/OFF status indication
- Corrosion-resistant 304 stainless steel enclosure suitable for NEMA 4X environments
- Heavy-duty Class H fusible switch with neutral
- Rated for up to 600 V and 30 A with high horsepower motor circuit protection
- Compatible with Eaton’s CUBEFuse fuse clips providing finger-safe operation and arc flash safety
- Triple padlocking capability and mechanically interlocked door for safety and security
- Extended line terminal shielding to prevent accidental contact with energized parts
- Designed for use in industrial power distribution, lighting solutions, and switchgear assemblies
