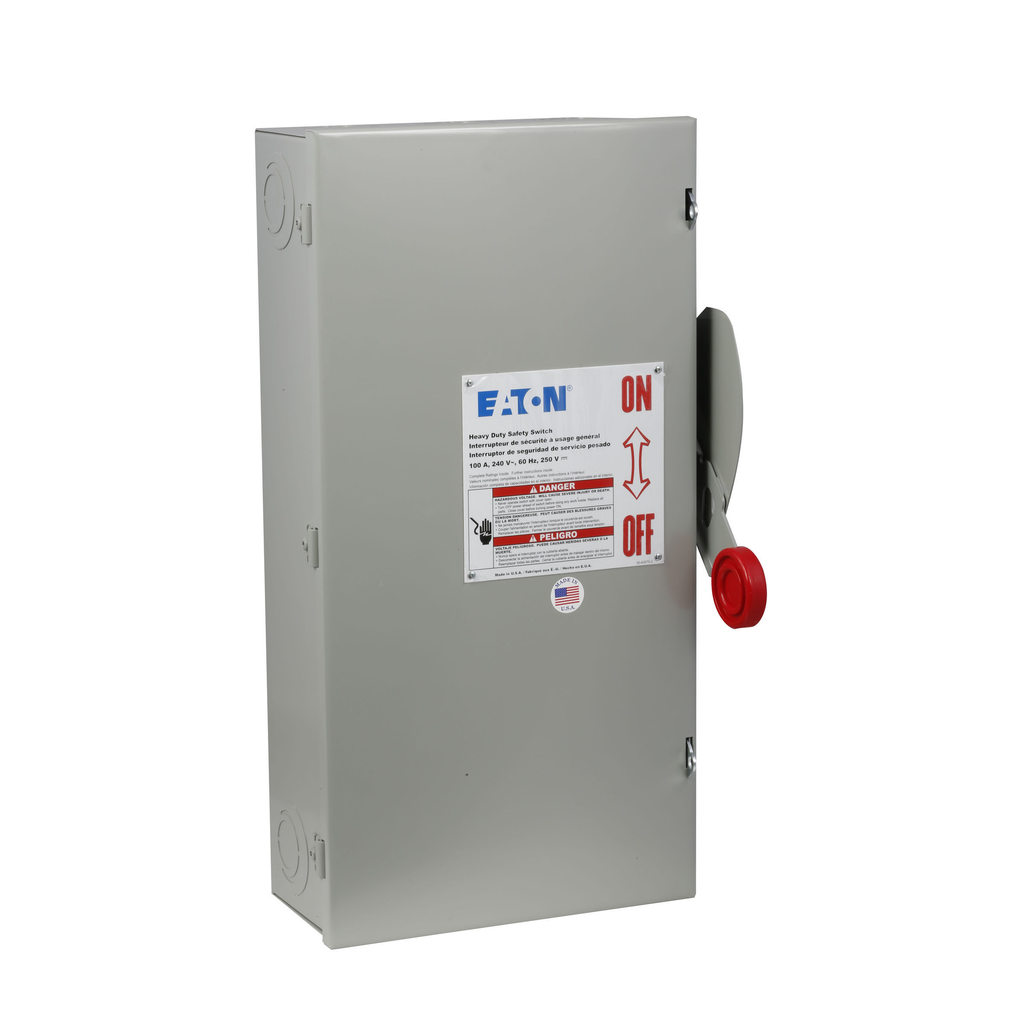

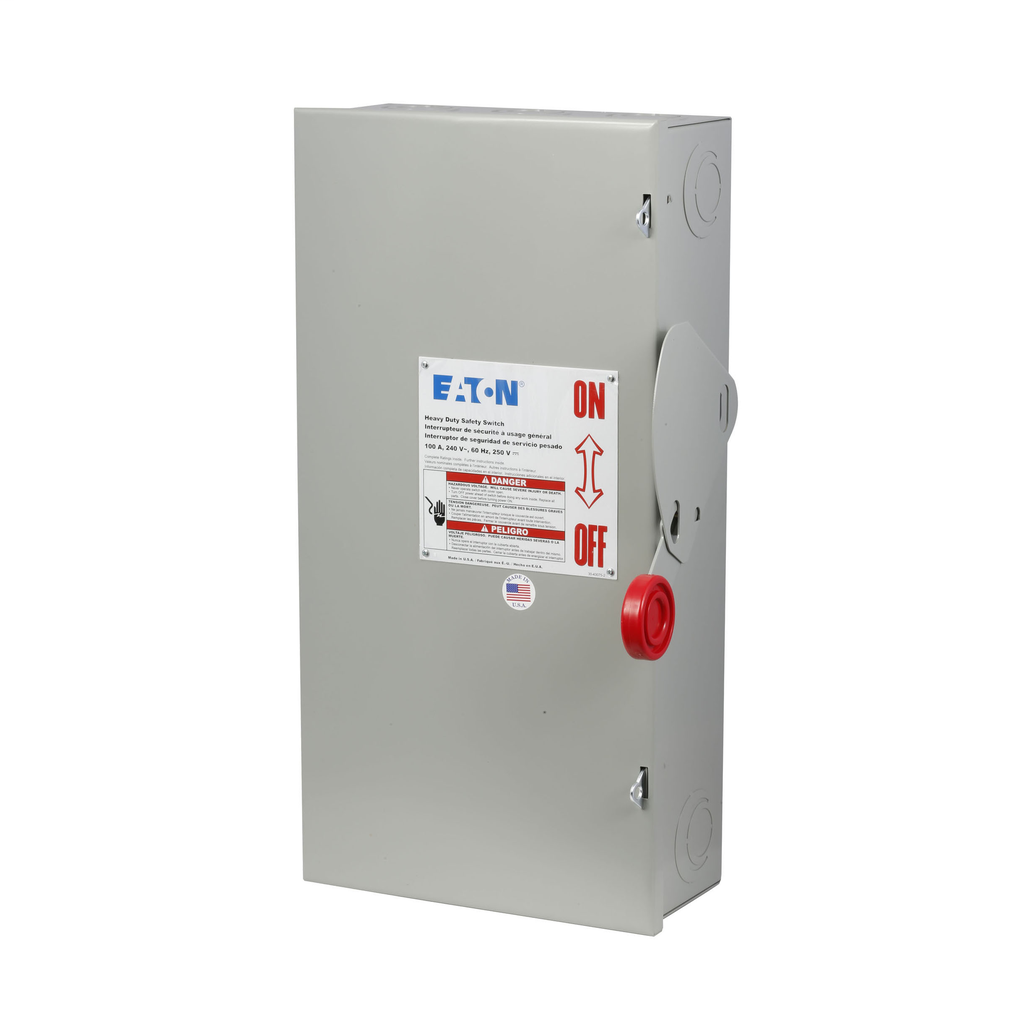

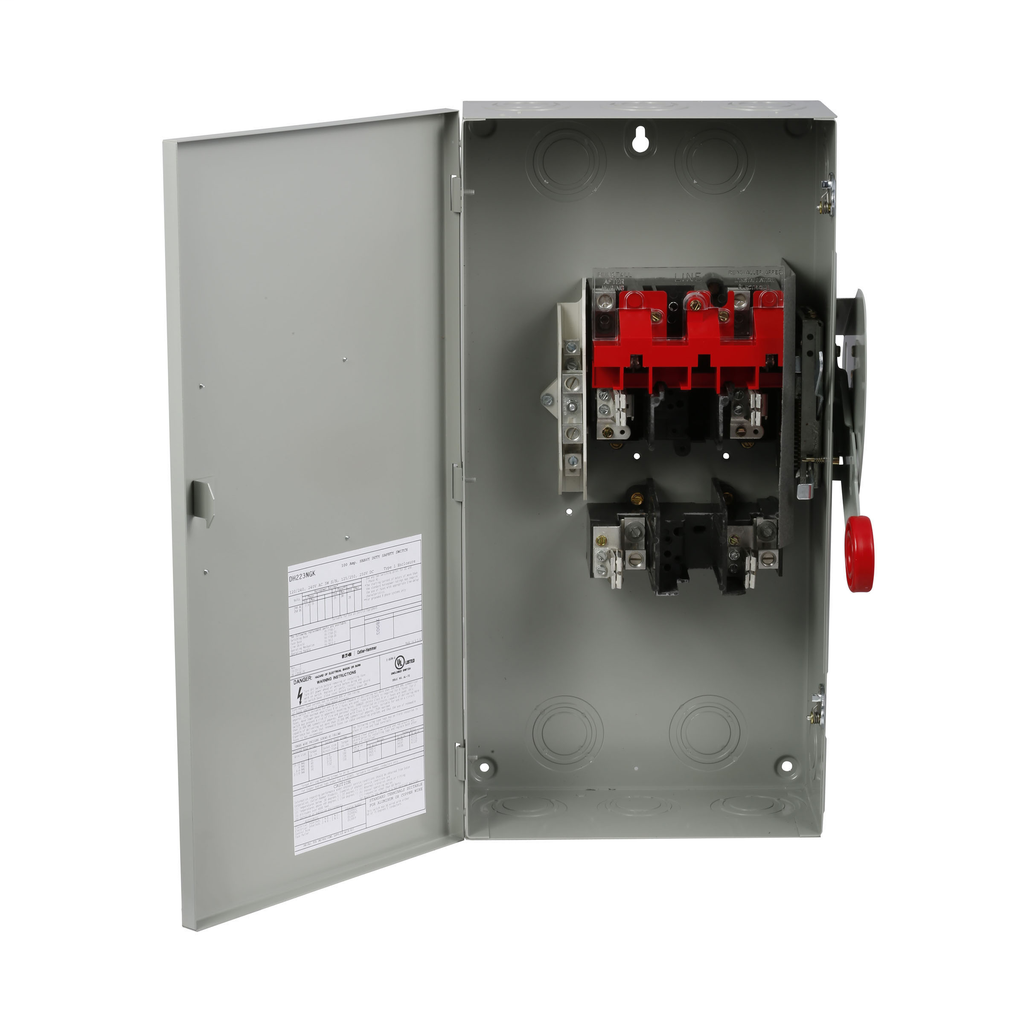

Eaton enhanced visible blade single-throw fused safety switch
SKU: #163206
Part: #DH323FGK
UPC: 782113206240
Eaton enhanced visible blade single-throw fused safety switch
SKU: #163206
Part: #DH323FGK
UPC: 782113206240
Next day delivery
Description
Specifications
- Height: 21.99 IN
- Length: 22.5 IN
- Width: 12.75 IN
- Weight: 18 LB
- Type: Heavy duty fusible safety switch
- Amperage Rating: 100A
- Enclosure: NEMA 1
- Enclosure Material: Painted steel
- Fuse Class Provision: Class H
- Fuse Configuration: Fusible without neutral
- Number Of Poles: Three-pole
- Number Of Wires: Three-wire
- Product Category: Heavy Duty, Fusible without neutral
- Voltage Rating: 240V
- Max Hp Rating: 7.5, 15/ 15, 30/ 20 hp (1,3PH @Std/TD/250 Vdc)
- Wire Size: #14-1/0 AWG Cu/Al
- Notes: Suitable for service entrance use with a Neutral Kit installed
