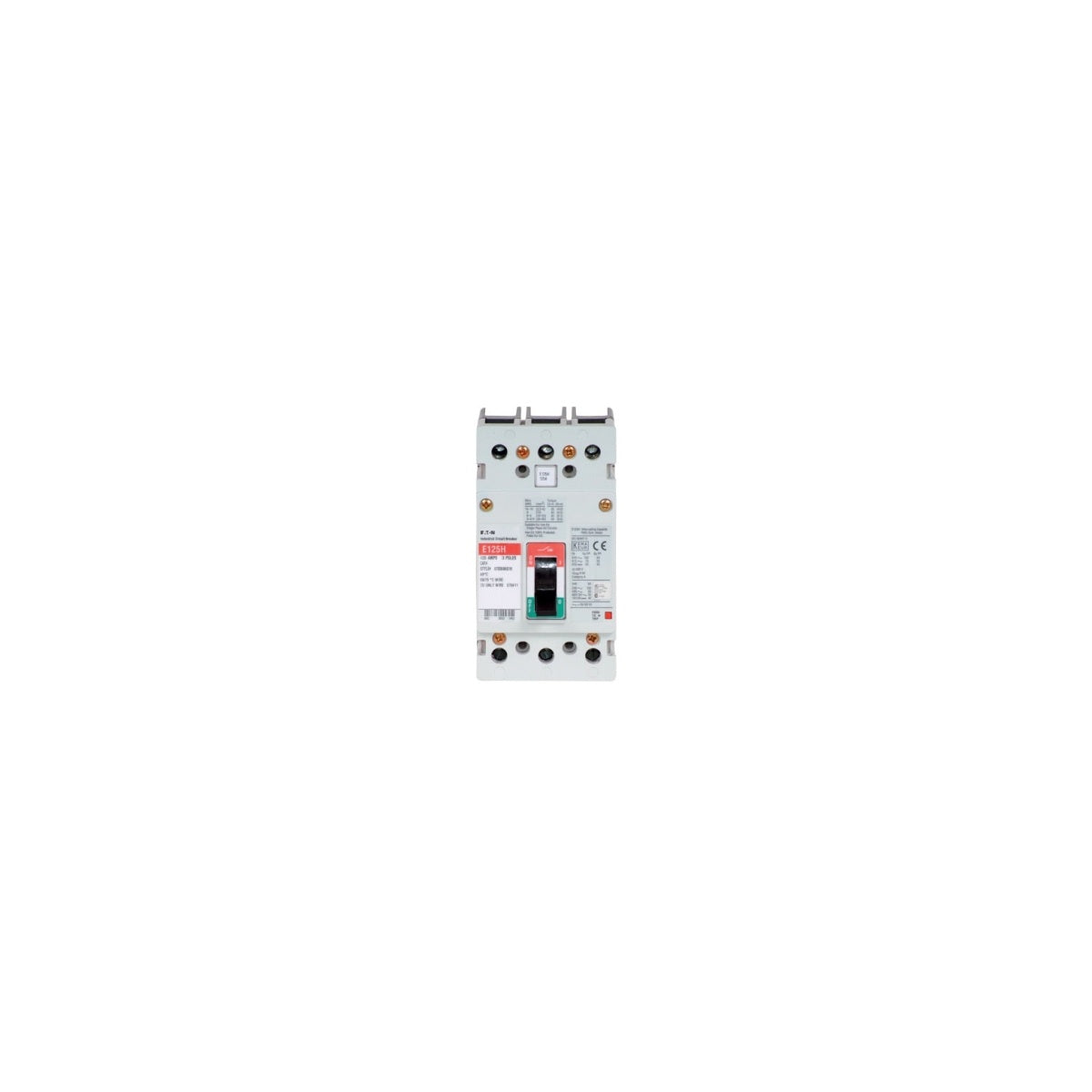

EATON EGH3035FFB EGH Bolt On 3P 35A Branch Breaker - Molded Case Circuit Breaker

The Eaton EGH3035FFB is a 3-pole, 35 Amp bolt-on branch circuit breaker from the EG-Frame series designed for circuit protection in electrical distribution systems. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable protection solutions. This breaker is HACR rated, compatible with copper and aluminum wiring, and ideal for industrial and commercial lighting solutions, wire and cable applications, and general electrical distribution.

Specifications

• Manufacturer: Eaton
• Catalog Number: EGH3035FFB
• Frame Series: EG-Frame (15‚Äì125 Amperes)
• Poles: 3
• Amperage: 35 A
• Mounting Type: Bolt-on
• Breaker Type: Fixed Thermal, Fixed Magnetic
• Interrupting Rating: 65 kAIC at 480 Vac
• Terminal Material: Aluminum
• Wire Type Compatibility: Copper/Aluminum
• Wire Range: 2.5‚Äì50 mm¬≤ (AWG #14‚Äì1/0) for 15‚Äì50 A breakers; 16‚Äì70 mm¬≤ (AWG #6‚Äì3/0) for 60‚Äì125 A breakers
• Product Weight: 3.0 lbs
• UPC: 786685381862

Features

• HACR rated for heating, air conditioning, and refrigeration applications
• Fixed thermal and magnetic trip units for reliable overcurrent protection
• Bolt-on mounting for secure installation in panelboards
• Compatible with both copper and aluminum conductors
• High interrupting capacity of 65 kAIC at 480 Vac for enhanced safety
