Eaton Edison series JDL fuse, Time-delay current-limiting fuse, Non-indicating, 350 A, Class J, Non-indicating, 200 kAIC, Standard, 1, 600 V
SKU: #333737
Part: #JDL350
UPC: 782634803584
Eaton Edison series JDL fuse, Time-delay current-limiting fuse, Non-indicating, 350 A, Class J, Non-indicating, 200 kAIC, Standard, 1, 600 V
SKU: #333737
Part: #JDL350
UPC: 782634803584
Description

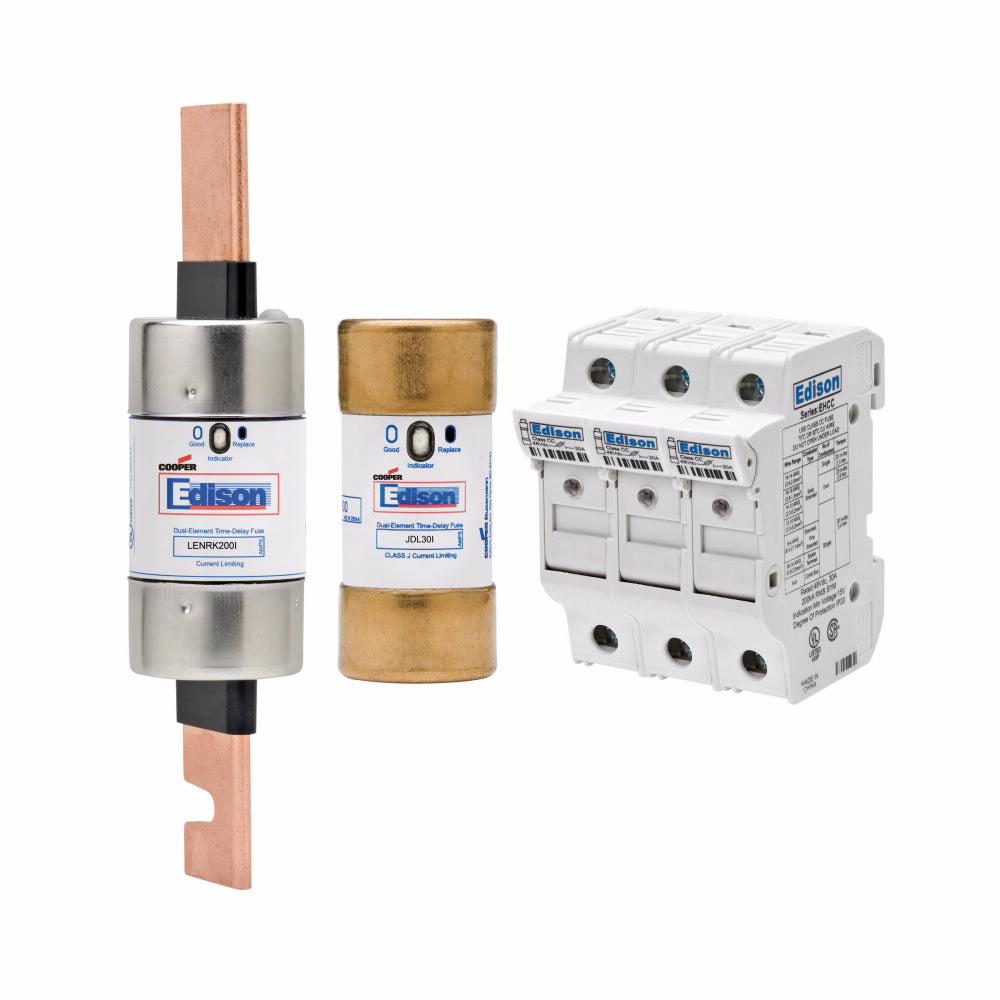

Eaton Edison series JDL fuse Time-delay current-limiting fuse
The Eaton Edison series JDL fuse is a time-delay, current-limiting fuse designed for use in electrical distribution and switchgear applications. This non-indicating Class J fuse is rated for 350 amperes and 600 volts, providing reliable protection in industrial and commercial electrical systems. Suitable for electrical distributors and lighting solutions requiring robust wire and cable protection.
Specifications
- Amperage: 350 amperes
- Class: J
- Interrupt Rating: 200 kiloamps
- Enclosure Material: Stainless Steel
- Dimensions: 7.13 in (Length) x 2.13 in (Width) x 2.13 in (Height)
- Product Weight: 1.7 lbs
- Voltage Rating: 600 V
- Manufacturer Part #: JDL350
- UPC: 782634803584
Features
- Time-delay operation for protection against temporary overloads
- Current-limiting design reduces damage during short circuits
- Non-indicating fuse type for straightforward installation
- Durable stainless steel enclosure for enhanced mechanical strength
