Eaton Eaton BR main lug loadcenter ,No feed-thru lugs,Main lug,200 A,D1R,Aluminum,Cover included,NEMA 3R,Metallic,25 kAIC,BWH,NEMA 3R,40 Circuits,Twenty-four pole,30 Spaces,Three-wire
SKU: #159198
Part: #BR1224L125
UPC: 786676446556
Eaton Eaton BR main lug loadcenter ,No feed-thru lugs,Main lug,200 A,D1R,Aluminum,Cover included,NEMA 3R,Metallic,25 kAIC,BWH,NEMA 3R,40 Circuits,Twenty-four pole,30 Spaces,Three-wire
SKU: #159198
Part: #BR1224L125
UPC: 786676446556
Description

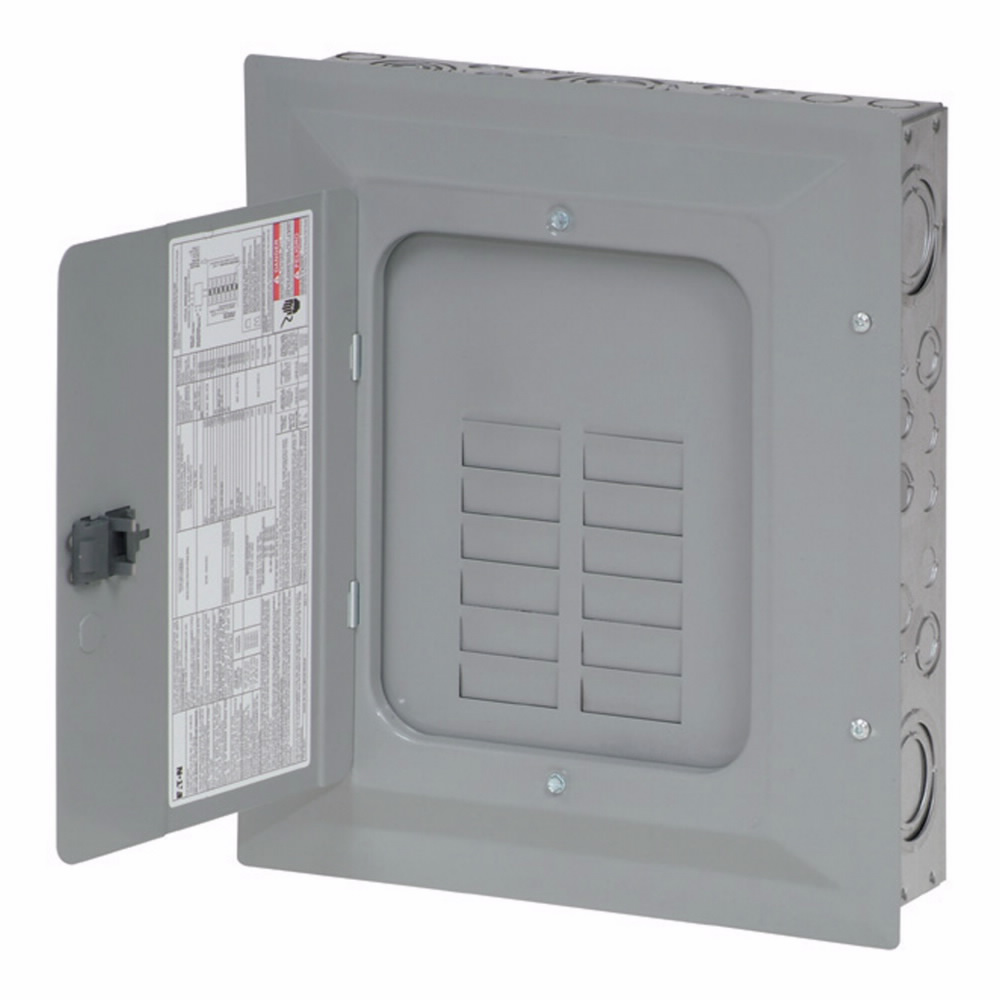

Eaton BR Main Lug Loadcenter 125 Amp Electrical Distributor
The Eaton BR Main Lug Loadcenter is a 125-amp, single-phase electrical distribution panel designed for residential and light commercial applications. It is engineered to house branch circuit breakers and wiring necessary to distribute power safely and efficiently. This loadcenter features a main lug only configuration without feed-thru lugs and is suitable for use as a sub-panel to add circuits to existing electrical services. It is ideal for electrical distributors and switchgear suppliers seeking reliable wire and cable management and lighting solutions in NEMA 1 indoor environments.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BR1224L125
- Amperage: 125 amperes
- Number of Circuits: 24
- Number of Poles: 24
- Number of Phases: 1
- Interrupt Rating: 10 kiloamps
- Bus Material: Aluminum (Tin Plated)
- Enclosure Material: Metallic
- Mounting Type: Combination (Flush/Surface)
- Dimensions (HxWxD): 16.75 in x 14.31 in x 3.88 in
- Wire Size Range: #6 to 2/0 Cu/Al (60 °C or 75 °C)
- UPC: 786676446556
- Enclosure Rating: Indoor NEMA 1
- Weight: 15.6 lbs
Features
- Main lug only design without feed-thru lugs, suitable for sub-panel applications
- Combination trim with ANSI 61 light gray finish for indoor use
- Steel backpan for reliable breaker mounting
- Single keyhole mounting at top and bottom for easy installation and leveling
- Split neutral bar assembly for improved load wire management
- Drywall marking on enclosure for accurate flush mounting
- Top or bottom feed capability for flexible wiring options
- Compatible with Type BR breakers and accessories
- Includes multiple ground terminal options depending on catalog variant
- 10-year limited warranty on loadcenters and breakers
