Eaton Eaton BR main lug loadcenter,No feed-thru lugs,includes BREQS125 hold-down screw, 125 A,B1R,Aluminum, NEMA 3R,Metallic,10 kAIC,BR,NEMA 3R,24 Circuits,Twenty-four pole,12 Spaces,Three-wire,Single-phase,120/240V,#6-2/0 AWG Cu/Al
SKU: #159203
Part: #BR1224L125R
UPC: 786676446709
Eaton Eaton BR main lug loadcenter,No feed-thru lugs,includes BREQS125 hold-down screw, 125 A,B1R,Aluminum, NEMA 3R,Metallic,10 kAIC,BR,NEMA 3R,24 Circuits,Twenty-four pole,12 Spaces,Three-wire,Single-phase,120/240V,#6-2/0 AWG Cu/Al
SKU: #159203
Part: #BR1224L125R
UPC: 786676446709
Next day delivery
Description

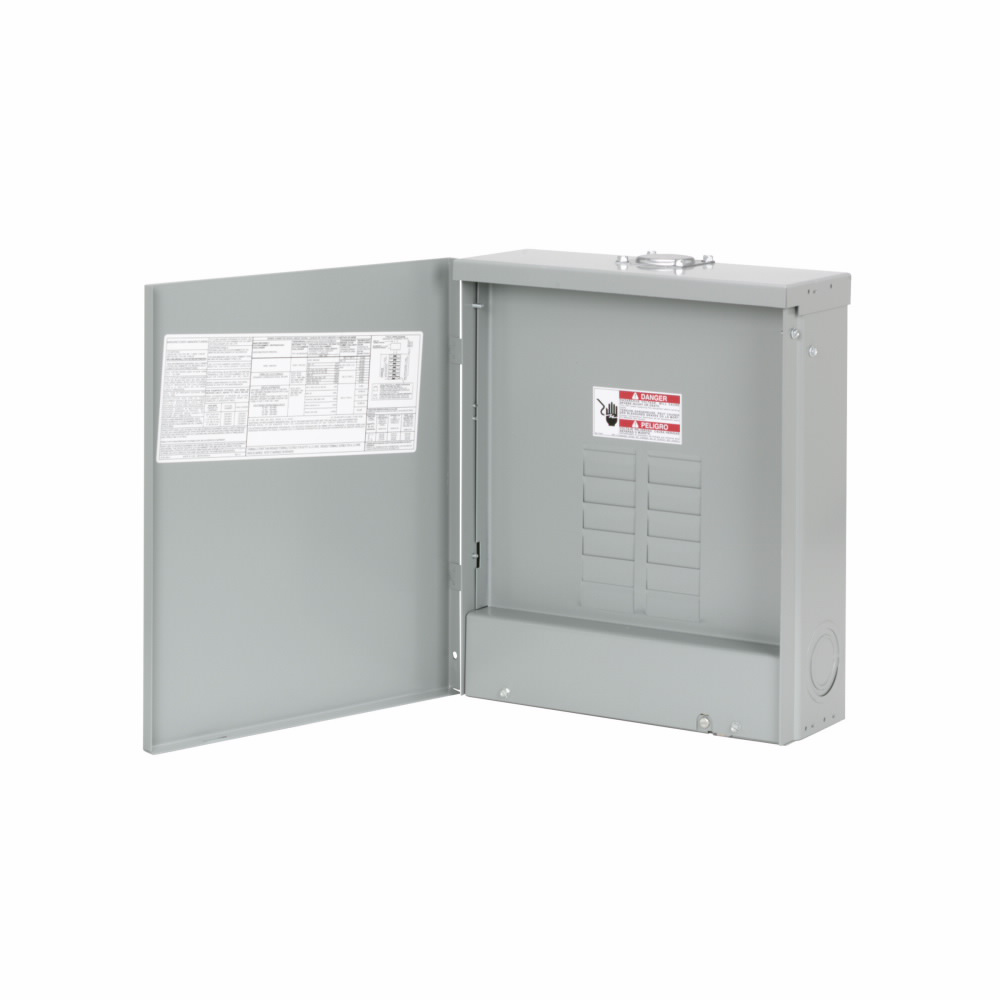

Eaton BR Main Lug Loadcenter – Electrical Distributor Load Center
The Eaton BR main lug loadcenter is a robust electrical distribution solution designed for single-phase, 120/240V applications. It is suitable for residential and light commercial electrical systems, offering reliable circuit protection and power distribution. This loadcenter features a main lug only design without feed-thru lugs, making it ideal for sub-panel applications. Its NEMA 3R metallic enclosure ensures durability for outdoor installations, while the aluminum bus material supports efficient electrical conductivity. As a trusted component from a leading switchgear supplier, this loadcenter supports up to 24 circuits with 12 spaces, accommodating wire sizes from #6 to 2/0 AWG copper or aluminum.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BR1224L125R
- Amperage: 125 amperes
- Number of Circuits: 24
- Number of Spaces: 12
- Number of Phases: 1
- Voltage: 120/240V, Single-phase
- Bus Material: Aluminum
- Interrupt Rating: 10 kiloamps
- Enclosure Material: Metallic
- Enclosure Type: NEMA 3R (Outdoor rainproof)
- Dimensions (W x H x D): 14.31 in x 16.75 in x 5.19 in
- Wire Size Range: #6-2/0 AWG Cu/Al
- Weight: 20.5 lbs
Features
- Main lug only design without feed-thru lugs for sub-panel use
- Durable metallic NEMA 3R enclosure suitable for outdoor installation
- Aluminum bus bars for superior conductivity and corrosion resistance
- Supports up to 24 circuits with 12 spaces for flexible electrical distribution
- Accepts wire sizes from #6 to 2/0 AWG copper or aluminum
- Compact dimensions for space-efficient mounting
- Includes BREQS125 hold-down screw for secure breaker installation
