Eaton Eaton BR main lug loadcenter,Main Lug Only,Main lug only,125 A,X3,Aluminum, NEMA 1,Metallic,10kAIC,BR,Surface,flush,NEMA 1,48 Circuits,Single-pole,24 Spaces,Two hots,a neutral and a ground,Single-phase,1,120/240V,#6-1/0 AWG Cu/Al
SKU: #160449
Part: #BRP24L125GW
UPC: 786689054984
Eaton Eaton BR main lug loadcenter,Main Lug Only,Main lug only,125 A,X3,Aluminum, NEMA 1,Metallic,10kAIC,BR,Surface,flush,NEMA 1,48 Circuits,Single-pole,24 Spaces,Two hots,a neutral and a ground,Single-phase,1,120/240V,#6-1/0 AWG Cu/Al
SKU: #160449
Part: #BRP24L125GW
UPC: 786689054984
Next day delivery
Description

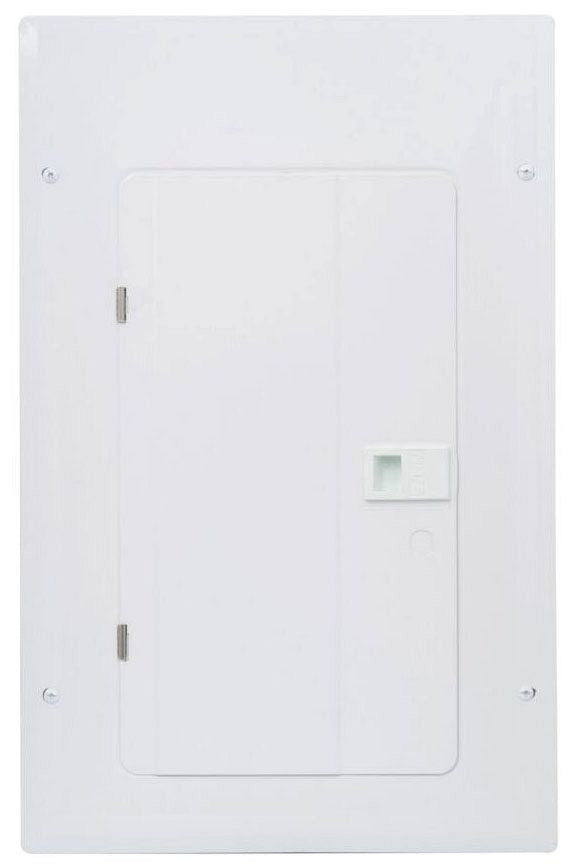

Eaton BR Main Lug Loadcenter – Electrical Distributor Loadcenter
The Eaton BR Main Lug Loadcenter is designed for electrical power distribution in residential and light commercial applications. It serves as a main lug only panelboard suitable for use as a sub-panel to add circuits to existing service. This loadcenter is ideal for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking a reliable panel with robust features for power distribution and circuit protection.
Specifications
- Manufacturer: Eaton
- Amperage: 125 amperes
- Number of Circuits: 48
- Bus Material: Aluminum
- Interrupt Rating: 10 kiloamps (kAIC)
- Number of Phases: 1 (Single-phase)
- Enclosure Material: Metallic
- Mounting Type: Surface, Flush
- Dimensions (W x H x L): 14.31 in x 3.88 in x 23 in
- Wire Size Range: #6 to 1/0 AWG Copper/Aluminum
- Manufacturer Part #: BRP24L125GW
- Voltage Rating: 120/240V
- Weight: 20 lbs
- Panel Spaces: 24
- Panel Poles: Single-pole
Features
- Main lug only design suitable for sub-panel applications
- Aluminum bus for superior conductivity and corrosion resistance
- Metallic NEMA 1 enclosure with durable powder-coated finish
- Surface or flush mounting options for flexible installation
- 10 kAIC interrupt rating for reliable short-circuit protection
- Supports up to 48 circuits with 24 spaces for single-pole breakers
- Compatible with #6 to 1/0 AWG copper or aluminum wiring
- Factory-installed ground bar included
