Eaton Eaton BR main lug loadcenter,Indoor,Main lug only,200 A,X5,Aluminum,Gray, NEMA 1,Metallic,10kAIC,CSR2200,Surface,flush,NEMA 1,60 Circuits,Twenty-four pole,30 Spaces,Two hots,a neutral,and a ground,Single-phase,120/240V,#1–300 kcmil
SKU: #160472
Part: #BRP30L200
UPC: 786689052881
Eaton Eaton BR main lug loadcenter,Indoor,Main lug only,200 A,X5,Aluminum,Gray, NEMA 1,Metallic,10kAIC,CSR2200,Surface,flush,NEMA 1,60 Circuits,Twenty-four pole,30 Spaces,Two hots,a neutral,and a ground,Single-phase,120/240V,#1–300 kcmil
SKU: #160472
Part: #BRP30L200
UPC: 786689052881
Next day delivery
Description

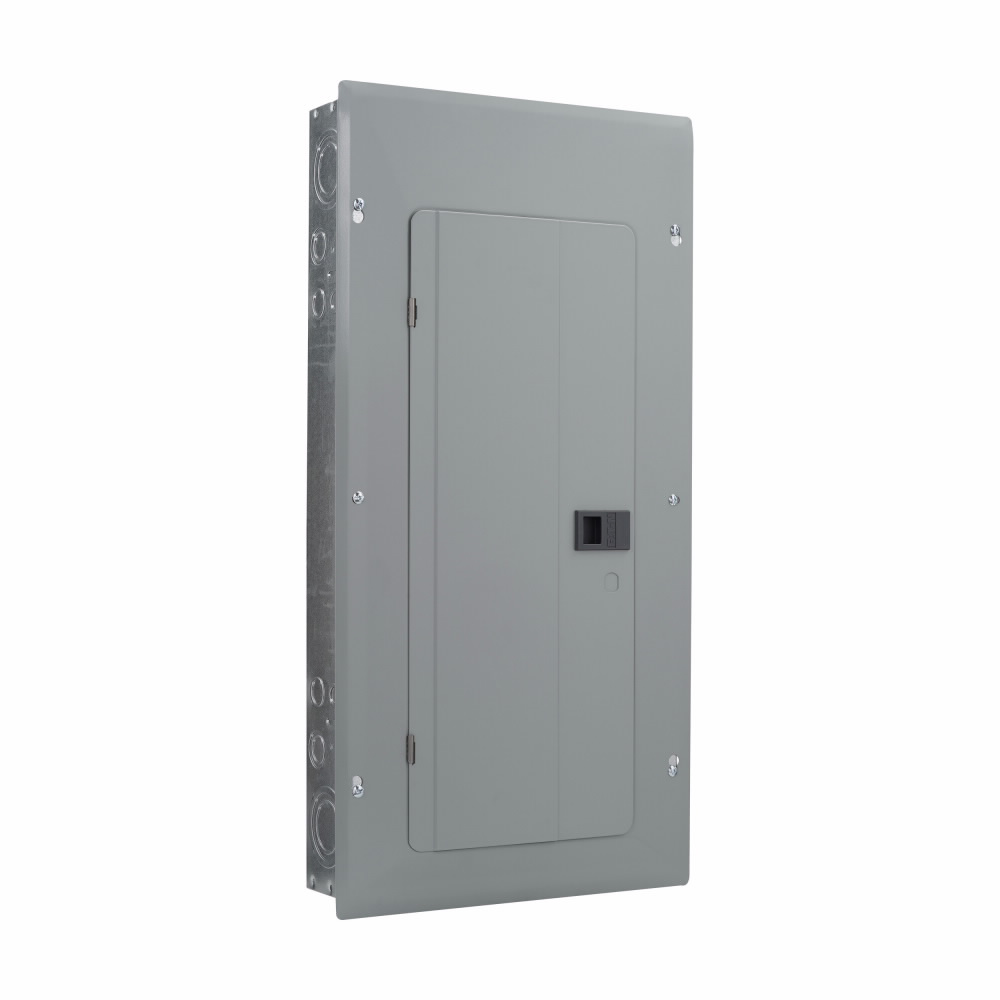

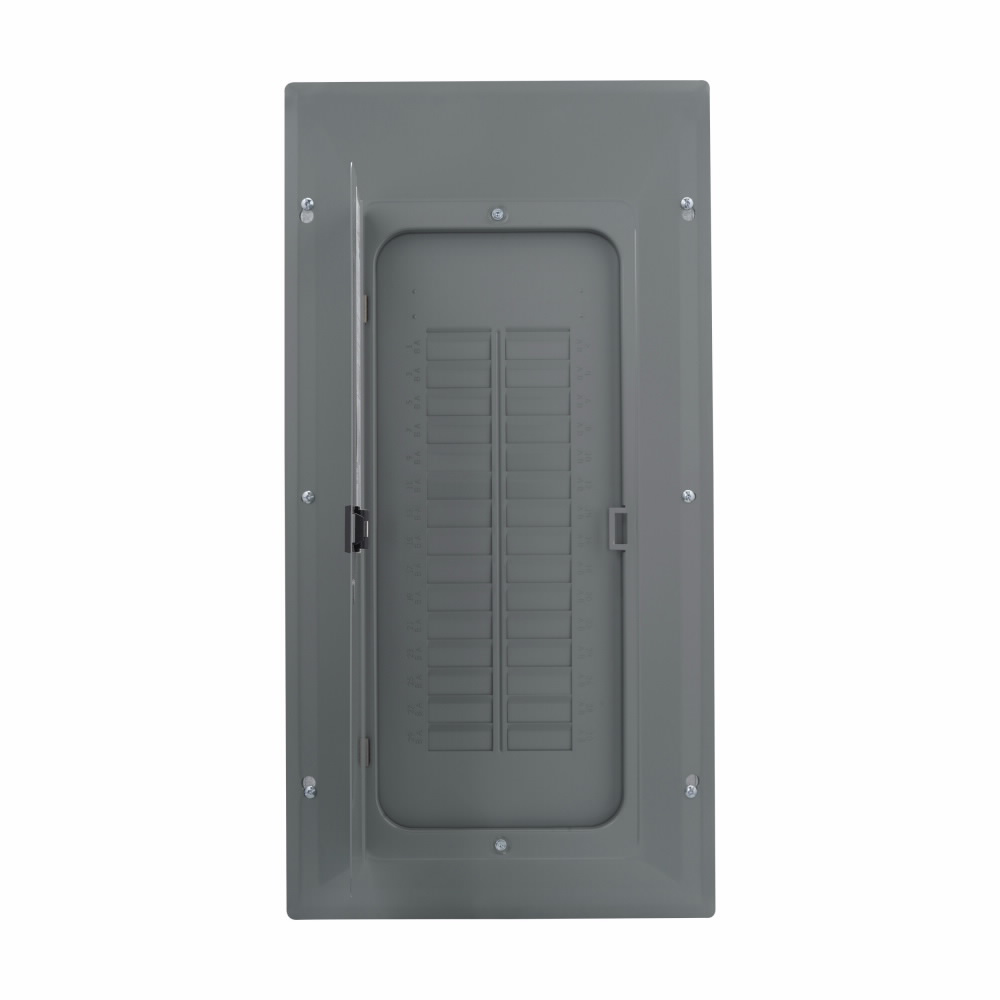

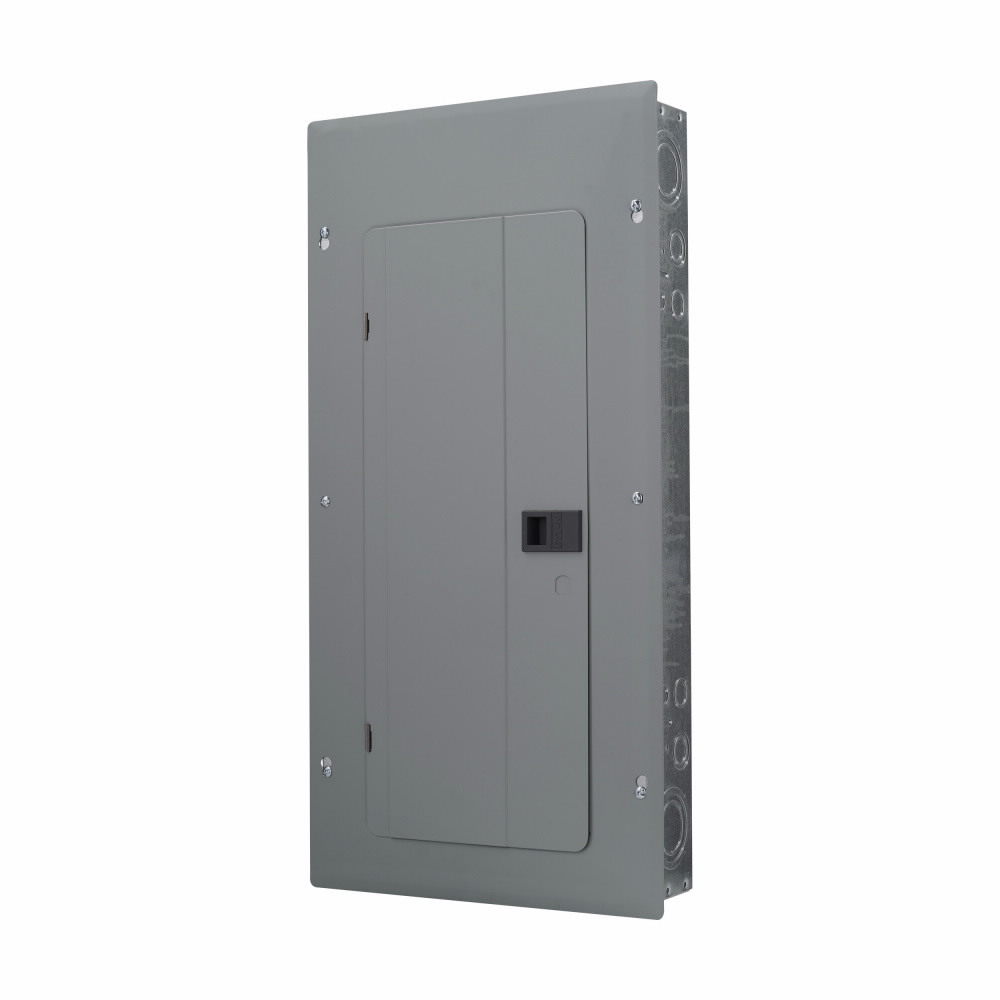

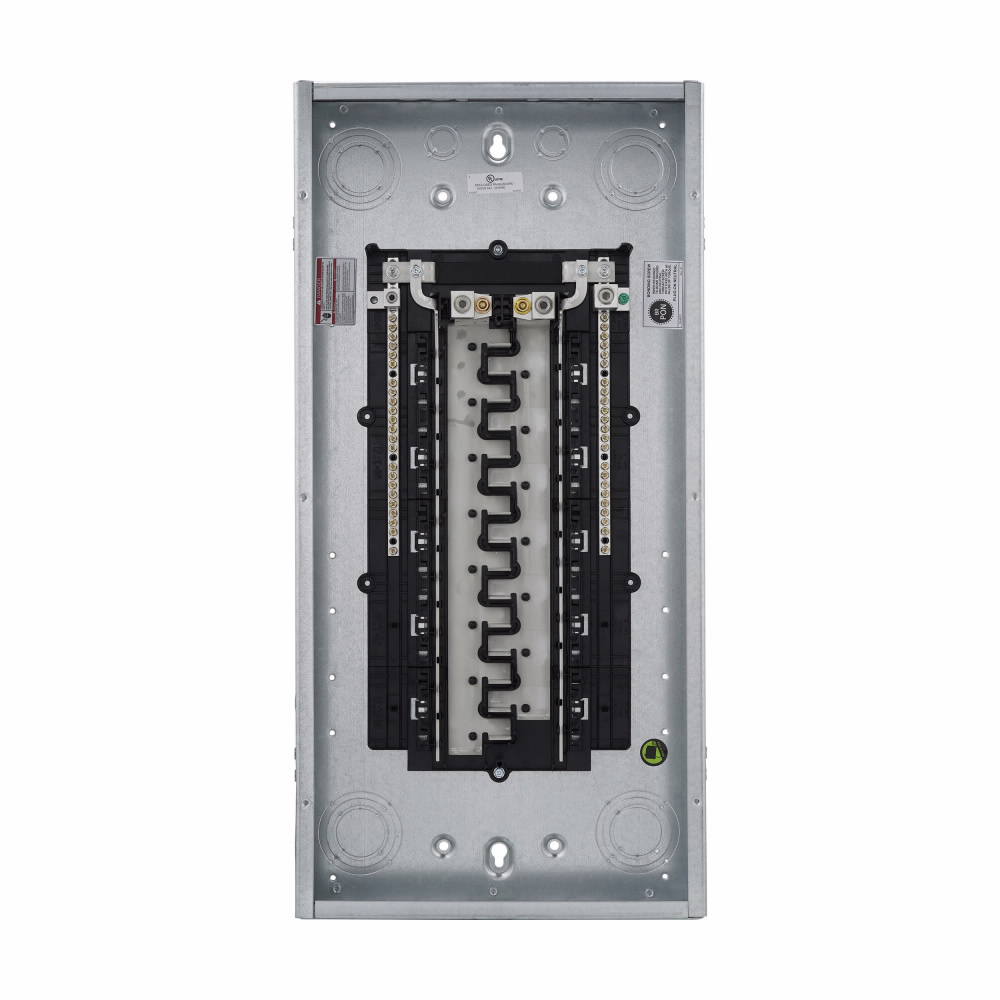

Eaton BR Main Lug Loadcenter 200A - Electrical Distributor Loadcenter
The Eaton BR main lug loadcenter is designed for indoor use as a main lug only panelboard, providing reliable power distribution in residential and light commercial applications. This loadcenter features a 200 ampere capacity with a single-phase 120/240V configuration. It is suitable for electrical distributors and switchgear suppliers requiring durable and efficient panelboards for wire and cable management and lighting solutions.
Specifications
- Manufacturer: Eaton
- Amperage: 200 amperes
- Number of Circuits: 60
- Number of Phases: 1
- Interrupt Rating: 10 kiloamps
- Bus Material: Aluminum
- Enclosure Material: Metallic
- Mounting Type: Surface, Flush
- Dimensions (W x H x L): 14.31 in x 3.88 in x 29.12 in
- Color: Gray
- Manufacturer Part Number: BRP30L200
- UPC: 786689052881
Features
- Main lug only design for use as sub-panel to add circuits to existing service
- Durable metallic enclosure with powder-coated finish for indoor applications
- Aluminum bus for superior conductivity and corrosion resistance
- Surface or flush mounting flexibility
- High interrupt rating of 10kAIC for enhanced circuit protection
- Accommodates up to 60 circuits with 30 spaces and twenty-four poles
- Includes factory-installed ground bar for grounding convenience
- Compatible with Eaton BR circuit breakers for streamlined installation
