Eaton Eaton BR main lug loadcenter, Ground bar, Main lug only, 200 A, X5, Aluminum, Gray, NEMA 1, Metallic, 10kAIC, CSR, Surface, flush, NEMA 1, 60 Circuits, Single-pole, 30 Spaces, Two hots, a neutral, and a ground, Single-phase
SKU: #160487
Part: #BRP30L200G
UPC: 786689044084
Eaton Eaton BR main lug loadcenter, Ground bar, Main lug only, 200 A, X5, Aluminum, Gray, NEMA 1, Metallic, 10kAIC, CSR, Surface, flush, NEMA 1, 60 Circuits, Single-pole, 30 Spaces, Two hots, a neutral, and a ground, Single-phase
SKU: #160487
Part: #BRP30L200G
UPC: 786689044084
Next day delivery
Description

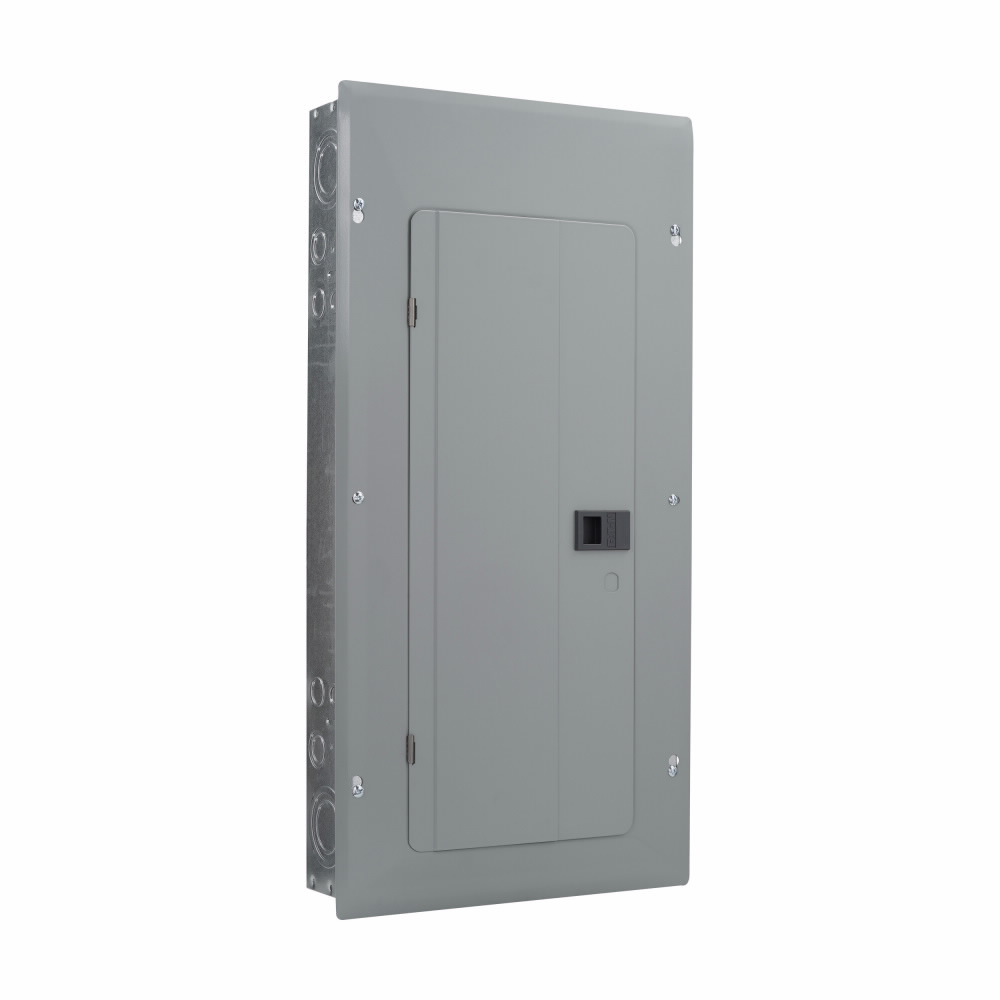

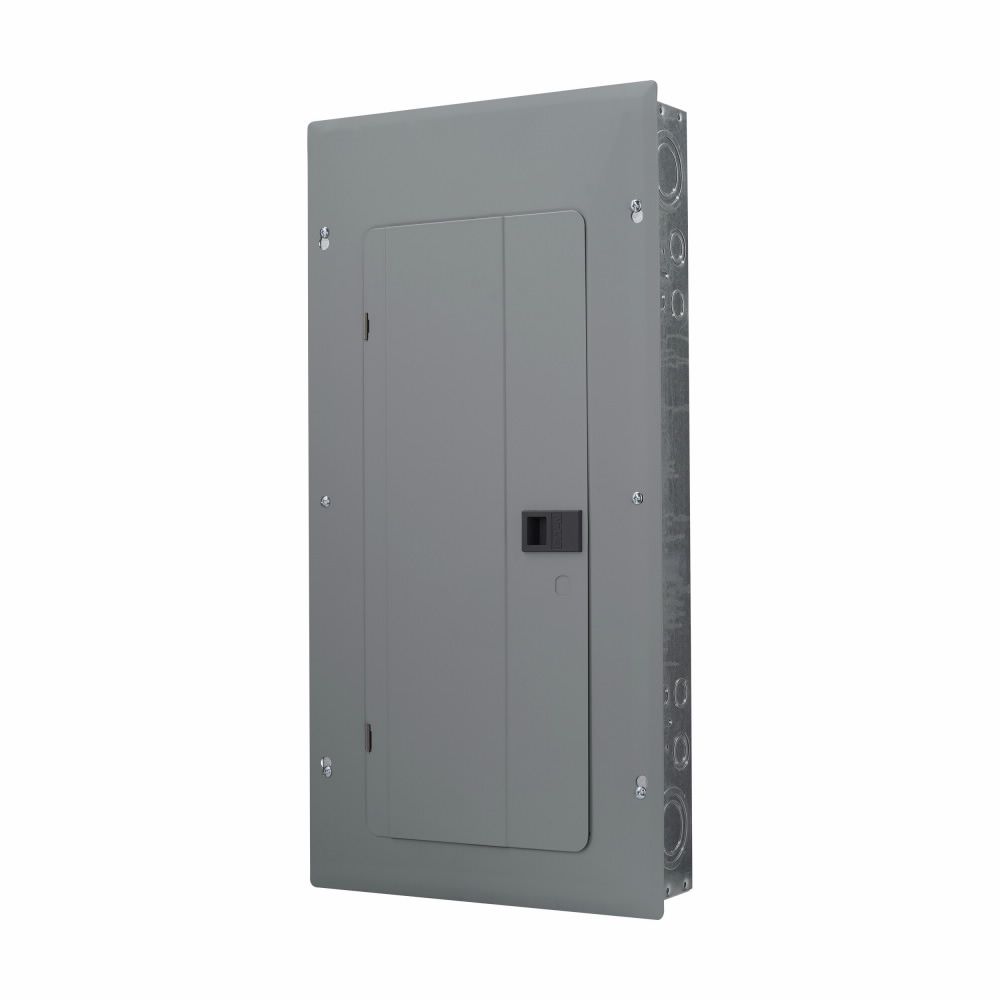

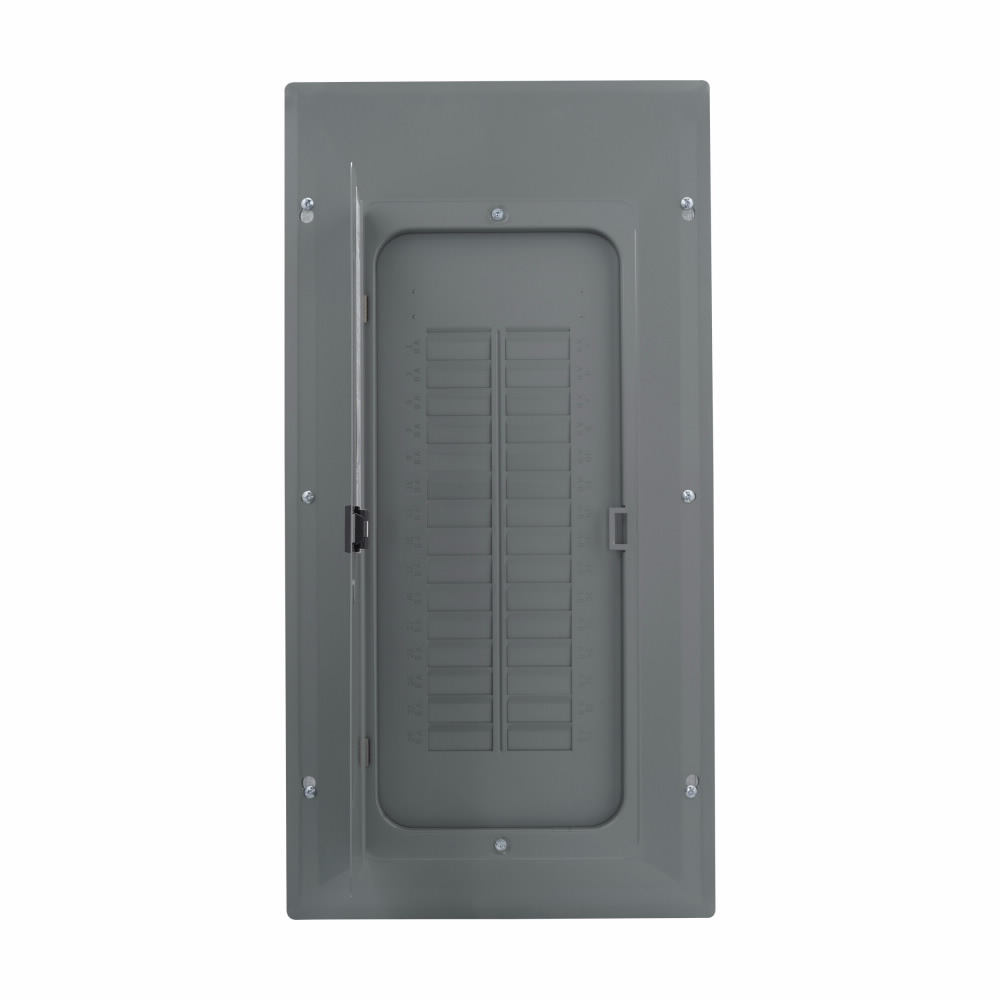

Eaton BR Main Lug Loadcenter - Electrical Distributor Loadcenter Solutions
The Eaton BR main lug loadcenter is a durable electrical distribution panel designed for residential and light commercial applications. It serves as a sub-panel or main panel, housing branch circuit breakers to distribute power safely and efficiently. This loadcenter is suitable for use by electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring reliable power distribution equipment.
Specifications
- Manufacturer: Eaton
- Model Number: BRP30L200G
- Amperage: 200 amperes
- Number of Circuits: 60
- Number of Spaces: 30
- Number of Phases: 1 (Single-phase)
- Interrupt Rating: 10 kiloamps (10kAIC)
- Bus Material: Aluminum
- Enclosure Material: Metallic
- Color: Gray
- Mounting Type: Surface, Flush
- Dimensions (W x H x D): 14.31 in x 29.12 in x 3.88 in
- Weight: 26.3 lbs
Features

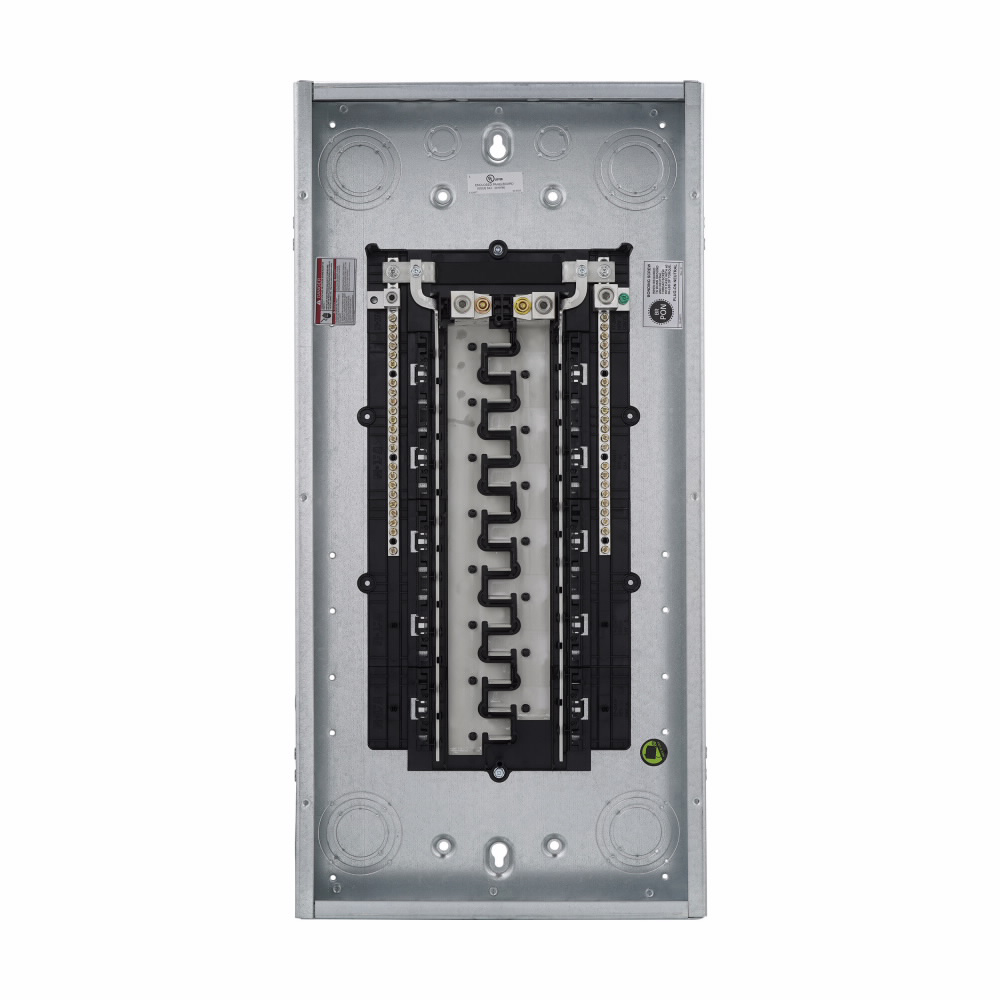

- Main lug only design with factory-installed ground bar for ease of installation
- Durable metallic enclosure with gray electrostatic powder coat finish suitable for indoor NEMA 1 applications
- High interrupt rating of 10kAIC for enhanced protection against short circuits
- Aluminum bus for reliable conductivity and corrosion resistance
- Supports single-phase power distribution with 60 circuits and 30 spaces for branch breakers
- Flexible mounting options: surface or flush mount to accommodate installation preferences
