Eaton Eaton BR main lug loadcenter ,Ground bar, includes BREQS125 hold-down screw,Main lug,125 A,C1,Aluminum,Cover included,NEMA 1,Metallic,10 kAIC,BR,Combination,NEMA 1,24 Circuits,Twenty-four pole
SKU: #159940
Part: #BR816L125SP
UPC: 786676002127
Eaton Eaton BR main lug loadcenter ,Ground bar, includes BREQS125 hold-down screw,Main lug,125 A,C1,Aluminum,Cover included,NEMA 1,Metallic,10 kAIC,BR,Combination,NEMA 1,24 Circuits,Twenty-four pole
SKU: #159940
Part: #BR816L125SP
UPC: 786676002127
Next day delivery
Description

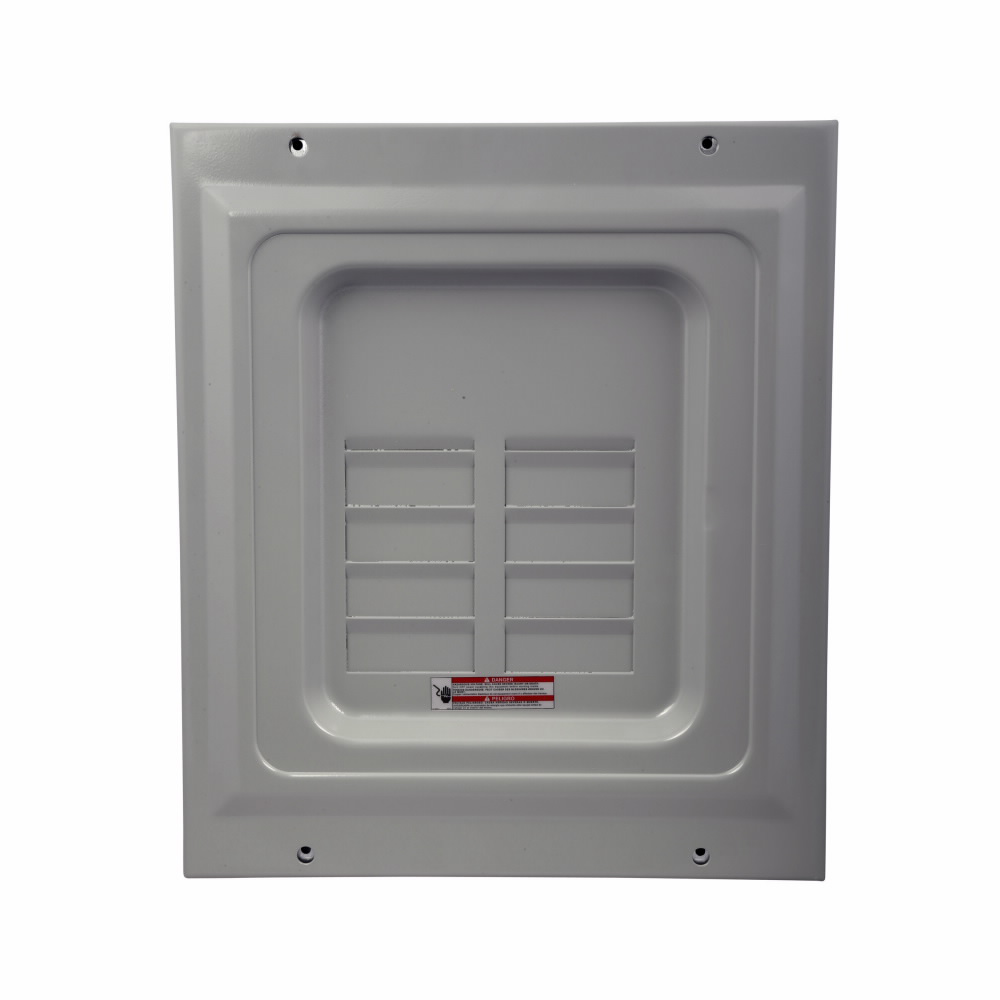

Eaton BR Main Lug Loadcenter – Electrical Distributor Loadcenter Solutions
The Eaton BR main lug loadcenter is designed for power distribution in residential and light commercial applications. It features a metallic enclosure with a NEMA 1 rating, suitable for indoor surface mounting. This loadcenter is built to house branch circuit breakers and wiring, providing reliable circuit protection and power distribution. Ideal for electrical distributors and switchgear suppliers, it supports up to 16 circuits with a main lug configuration rated at 125 amperes and a 10 kAIC interrupt rating.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: BR816L125SP
- Amperage: 125 amperes
- Number of Circuits: 16
- Number of Phases: 1
- Interrupt Rating: 10 kiloamps
- Bus Material: Aluminum
- Enclosure Material: Metallic
- Mounting Type: Surface
- Dimensions (W x H x D): 11 in x 13 in x 3.56 in
- Product Weight: 11.6 lbs
Features
- Main lug only configuration for use as a sub-panel
- Aluminum bus for superior conductivity and corrosion resistance
- Metallic NEMA 1 enclosure suitable for indoor applications
- Surface mount design for ease of installation
- Rated for 16 circuits, supporting comprehensive branch circuit protection
- 10 kAIC interrupt rating for reliable short-circuit protection
- Compact dimensions for space-efficient installations
