Eaton Eaton BR main lug loadcenter, 125 A,7,Aluminum, NEMA 1,Metallic,10 kAIC,BR,Surface,NEMA 1,16 Circuits,Twenty-four pole,8 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
SKU: #159936
Part: #BR816L125SDP
UPC: 786676001427
Eaton Eaton BR main lug loadcenter, 125 A,7,Aluminum, NEMA 1,Metallic,10 kAIC,BR,Surface,NEMA 1,16 Circuits,Twenty-four pole,8 Spaces,Three-wire,Single-phase,Type BR 1-inch breakers,120/240V,#14-1 AWG Cu/Al
SKU: #159936
Part: #BR816L125SDP
UPC: 786676001427
Description

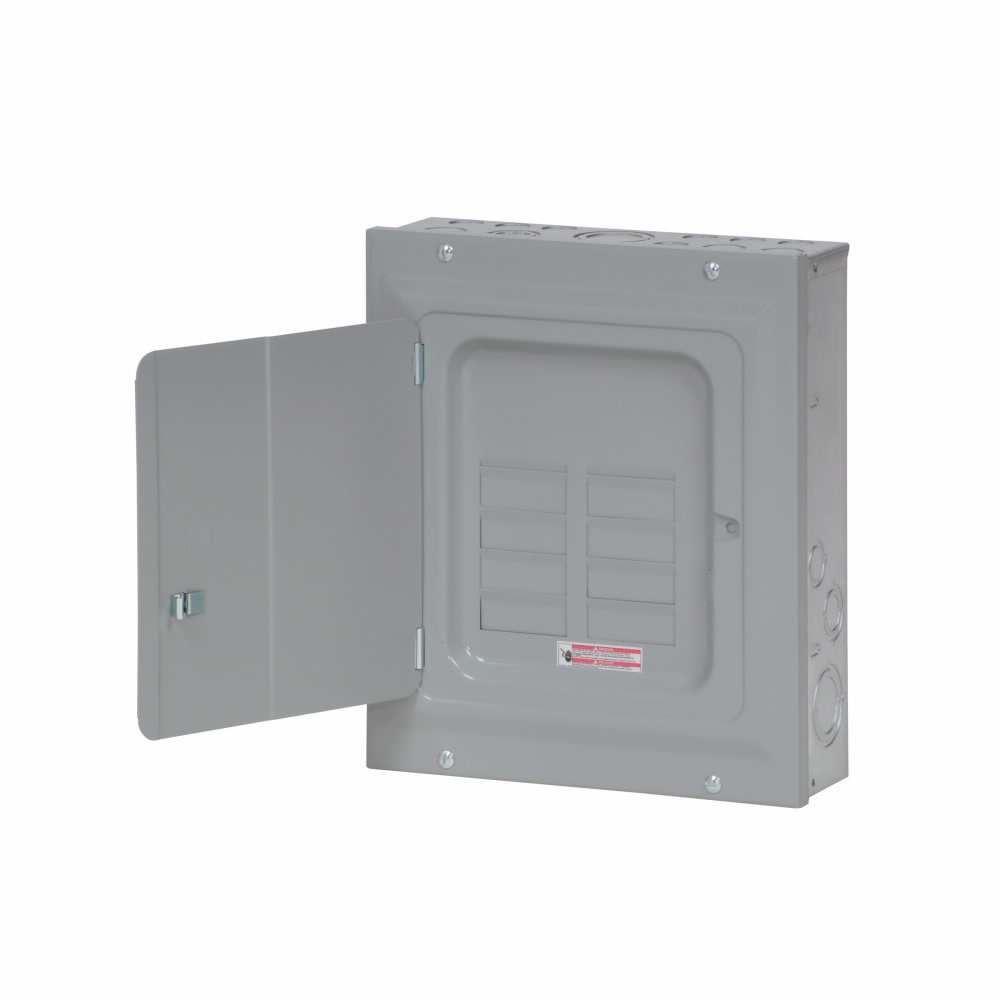

Eaton BR Main Lug Loadcenter 125A Aluminum Bus - Electrical Distributor Lighting Solutions
The Eaton BR main lug loadcenter is designed for safe and reliable power distribution in residential and light commercial applications. This loadcenter features a 125-ampere aluminum bus and is suitable for single-phase, three-wire systems operating at 120/240V. It is engineered for surface mounting with a metallic NEMA 1 enclosure, providing durable protection for branch circuit wiring and breakers. Ideal for electrical distributors and switchgear suppliers, it supports up to 16 circuits with a 10 kAIC interrupt rating, ensuring robust short-circuit protection.
Specifications
- Amperage: 125 amperes
- Number of Circuits: 16
- Bus Material: Aluminum
- Mounting Type: Surface
- Interrupt Rating: 10 kiloamps
- Number of Phases: 1
- Enclosure Material: Metallic
- Dimensions: Width 11 in, Height 13 in, Length 3.56 in
- Voltage: 120/240V
- Compatible Breaker Type: Type BR 1-inch breakers
- Wire Size Range: #14-1 AWG Copper/Aluminum
- Manufacturer Part Number: BR816L125SDP
Features
- Main lug loadcenter without main breaker, suitable as a sub-panel
- Durable metallic NEMA 1 enclosure with powder-coated finish
- Aluminum bus for superior conductivity and corrosion resistance
- Surface mount design for easy installation
- Supports up to 16 circuits with 8 spaces and 24 poles
- 10 kAIC interrupt rating for enhanced short-circuit protection
- Single-phase, three-wire configuration for residential and light commercial use
- Compatible with Eaton BR type 1-inch breakers
- Includes factory-installed ground bar
