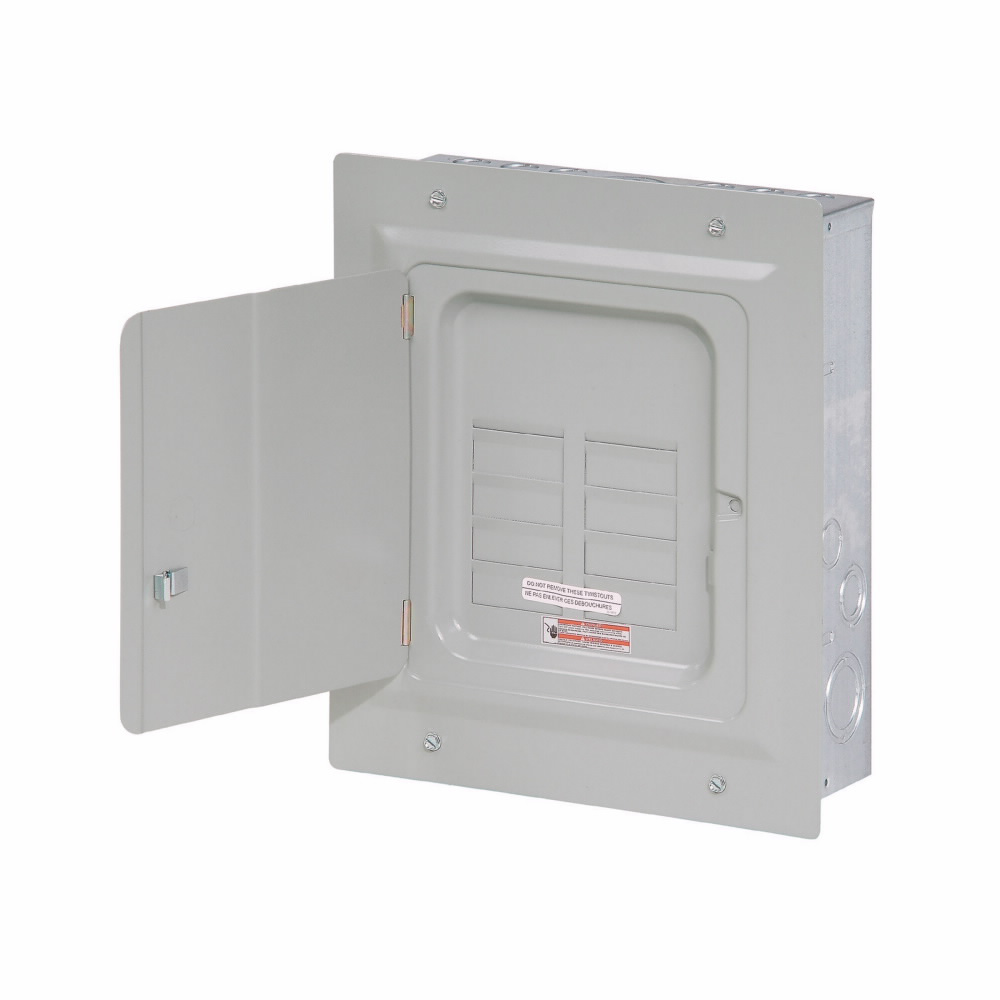

Eaton BR Main Lug Loadcenter 125 A - Electrical Distributor Loadcenter

The Eaton BR main lug loadcenter is designed for residential and light commercial electrical distribution applications. It provides reliable circuit protection and power distribution with a 125 ampere rating, suitable for single-phase, three-wire systems at 120/240V. This loadcenter supports up to 12 circuits with 6 spaces and twenty-four poles, accommodating Type BR 1-inch breakers. It features an aluminum bus for superior conductivity and a metallic NEMA 1 enclosure with flush mounting, offering a durable and professional installation solution for electrical distributors and lighting solutions.

Specifications

• Amperage: 125 amperes
• Number of Circuits: 12
• Number of Spaces: 6
• Number of Poles: Twenty-four pole
• Bus Material: Aluminum
• Mounting Type: Flush
• Interrupt Rating: 10 kiloamps
• Number of Phases: 1
• Enclosure Material: Metallic
• Voltage: 120/240V
• Wire Size Range: #14-1 AWG Cu/Al
• Dimensions (W x H x D): 11 in x 13 in x 3.56 in
• Product Weight: 9.3 lbs

Features

• Main lug loadcenter for sub-panel applications
• Aluminum bus for enhanced conductivity and corrosion resistance
• Metallic NEMA 1 enclosure suitable for indoor use
• Flush mounting for a clean, integrated installation
• Supports Type BR 1-inch circuit breakers
• Interrupt rating of 10 kAIC for reliable short-circuit protection
• Single-phase, three-wire configuration for typical residential distribution
• Compatible with #14-1 AWG copper or aluminum wire
