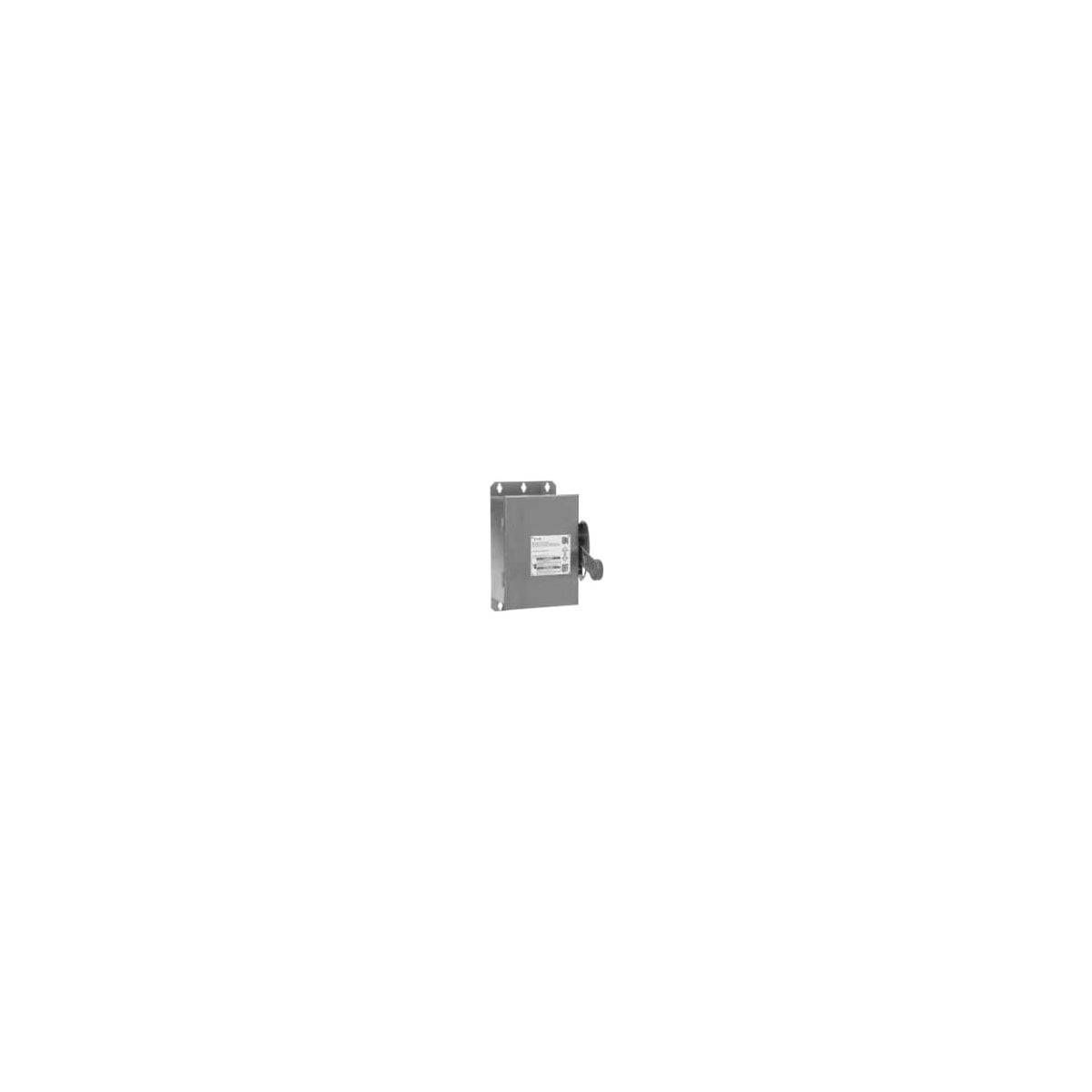

EATON DH361UWKN316 3P 30A Safety Switch - Heavy-Duty Electrical Distributor Solution

The EATON DH361UWKN316 is a heavy-duty, non-fusible, single-throw safety switch designed for heavy commercial and industrial electrical distribution applications. It offers reliable performance and service continuity, suitable for use by electrical distributors and switchgear suppliers requiring robust wire and cable protection and control solutions. This safety switch supports 30A current at 600 Vac/600 Vdc maximum and is built for service entrance applications with a NEMA 4X corrosion-resistant stainless steel enclosure.

Specifications

• Manufacturer: B-Line
• Manufacturer Part #: DH361UWKN316
• Poles: 3-pole
• Ampere Rating: 30A
• Voltage Rating: 600 Vac / 600 Vdc maximum
• Switch Type: Heavy-Duty, Non-Fusible, Single-Throw
• Enclosure: NEMA 4X corrosion-resistant stainless steel
• Product Weight: 14.55 lbs
• UPC: 786685940991

Features

• Visible double-break rotary blade mechanism providing positive open and close with longer contact life
• Clearly visible palm fitting red handle for easy operation and position identification
• Mechanically interlocked cover preventing access when switch is ON
• Clear line shield for protection against accidental contact with energized parts and allows voltage testing without removal
• Triple padlocking capability for personnel safety with up to three 3/8-inch shank locks
• Additional locking capability on cabinet door at top and bottom
• Tangential knockouts on top, bottom, and sides for wiring flexibility (NEMA Types 1 and 3R enclosures through 200A)
• UL Listed (File No. E5239), meets UL 98 and NEMA Std. KS-1 standards
• Seismic qualified exceeding Uniform Building Code (UBC) and California Code Title 24 requirements
• Tri-lingual nameplates for clear identification
