Description

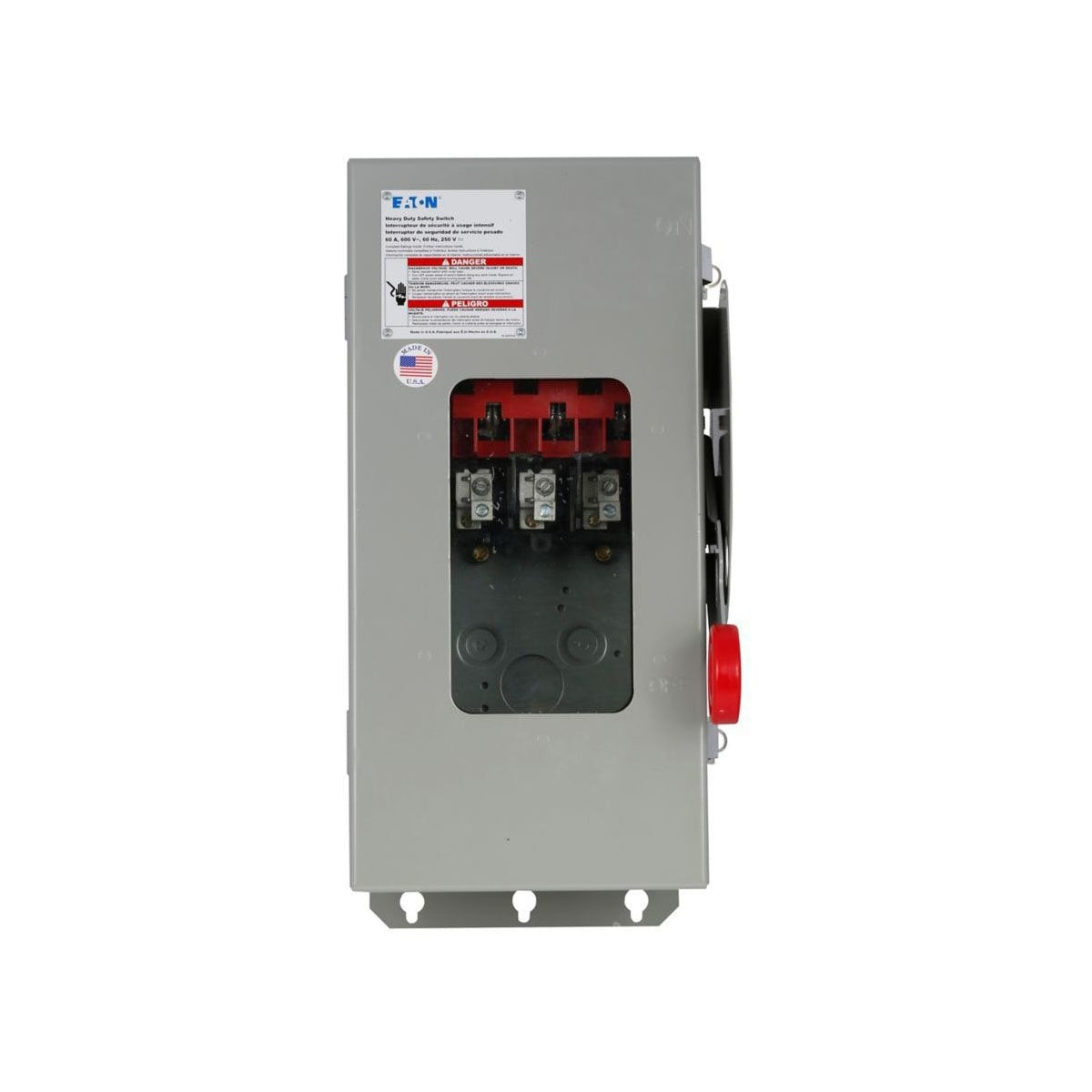

EATON DH327NWKW Enhanced Visible Blade Single-Throw Safety Switch
The EATON DH327NWKW is a heavy-duty, fusible single-throw safety switch designed for industrial electrical distribution and control applications. It features an enhanced visible blade with an external viewing window to allow electrical distributors, lighting solution providers, and switchgear suppliers to easily confirm the disconnect status without opening the enclosure. This corrosion-resistant switch is suitable for service entrance use and is available in NEMA 12, 4, and 4X stainless steel enclosures, offering durability and safety in demanding environments.
Specifications
- Manufacturer: Eaton
- Manufacturer Part Number: DH327NWKW
- Product Weight: 213 lbs
- Voltage Rating: 600 Vac
- Amperage Rating: 800A
- Type: Fusible Single-Throw Safety Switch
- Enclosure Types: NEMA 12, 4, 4X Stainless Steel (corrosion-resistant)
- Viewing Window: External laminated safety glass
- UL Listed: UL 98, File No. E5239
- Seismic Qualification: Exceeds Uniform Building Code (UBC) and California Code Title 24
Features
- Enhanced visible blade with external viewing window to confirm disconnect status while door is closed
- Corrosion-resistant stainless steel enclosure suitable for harsh environments
- Suitable for service entrance applications with neutral kit installed
- Available in fusible configuration for reliable circuit protection
- Heavy-duty construction rated for 30–1200A applications
- Field replaceable viewing window design
- Meets NEMA KS-1 standards for upper and lower viewing windows
