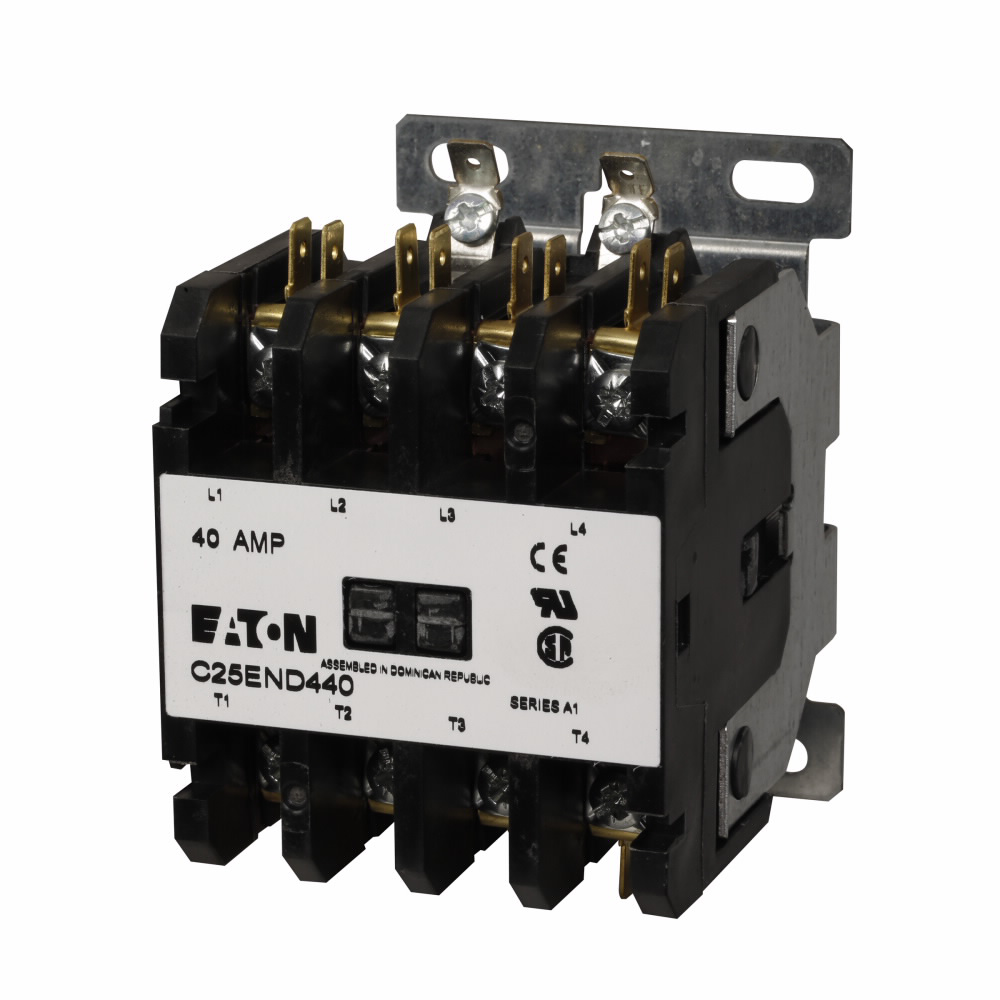

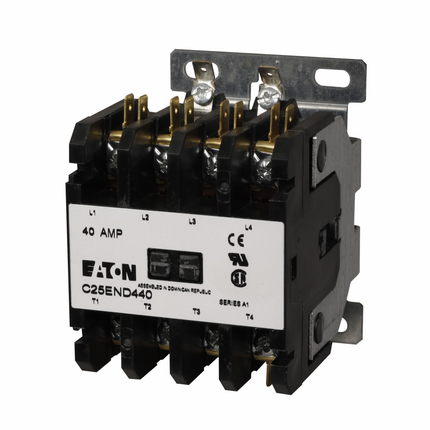

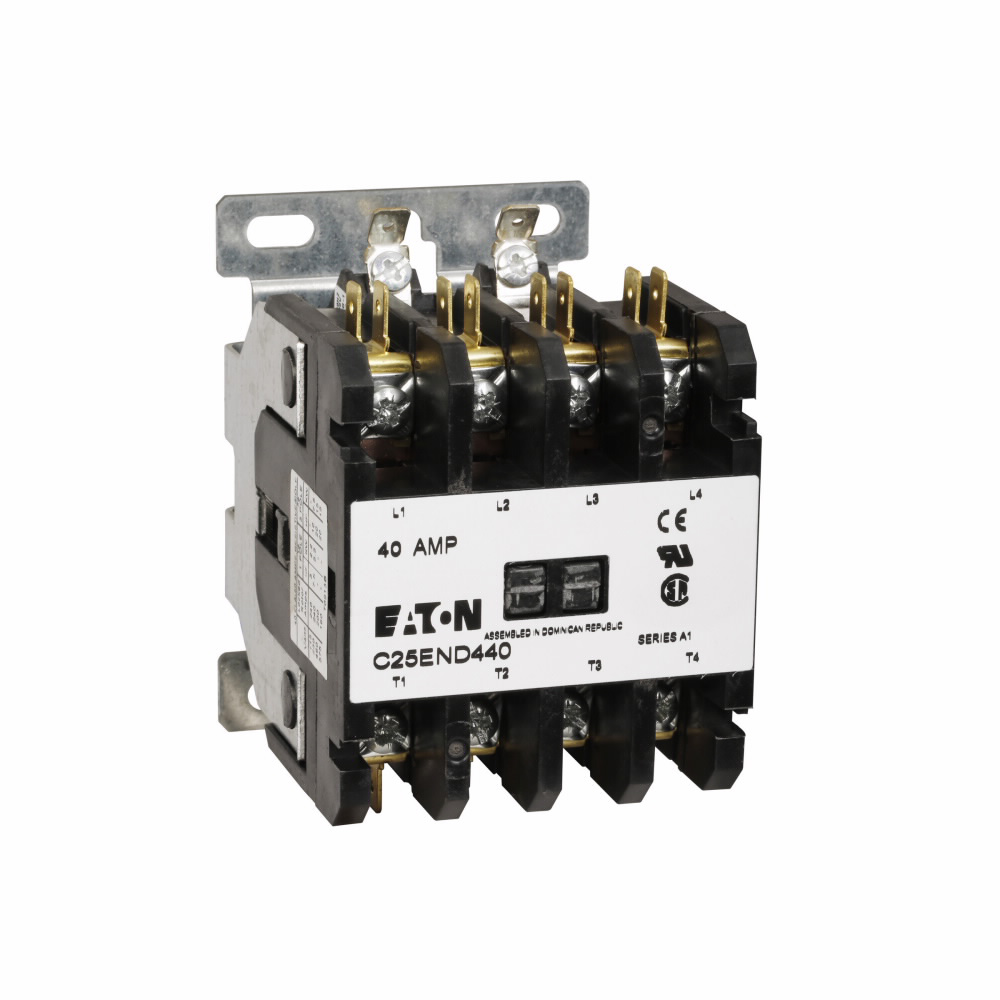

Eaton definite purpose contactor, Quick, 40A, 277 Vac, 60 Hz – Electrical Contactor

This Eaton definite purpose contactor is designed for reliable control of electrical circuits within industrial and commercial applications. It operates at 40 amperes with a coil voltage of 277 volts AC at 60 Hz frequency. The contactor features a four-pole configuration and is suitable for use in motor control and power distribution panels. Its open enclosure with a metal mounting plate allows for straightforward installation and maintenance. The quick connection terminals facilitate efficient wiring, making it an ideal component for electrical distributors and switchgear suppliers focusing on lighting solutions, wire and cable management, and motor control applications.

Specifications

• Manufacturer: Eaton
• Manufacturer Part #: C25ENF440H
• Amperage: 40 amperes
• Coil Voltage: 277 volts
• Number of Poles: 4
• Enclosure Type: Open with metal mounting plate
• Connection Type: Quick
• Frame: 15-50 amperes
• Dimensions (W x H x L): 2.68 in x 3.75 in x 3.38 in
• Product Weight: 2.19 lbs
• UPC: 782113613529

Features

• Four-pole contactor designed for definite purpose applications
• Quick connect terminals with box lugs (posidrive setscrew) for secure wiring
• Non-reversing contactor suitable for motor control and lighting circuits
• Open enclosure with metal mounting plate for easy panel integration
• Compact size with efficient coil consumption and front accessibility to coil terminals
• Compatible with control panels requiring 15-50 ampere frame ratings
