Eaton definite purpose contactor, Quick,40A, 110-120 Vac, 50/60 Hz, Open with metal mounting plate, 15-50A, two- and three-pole, 40A, Contactor, Three-pole, 50A, Screw/pressure plate and quick connect terminals (side-by-side), Non-reversing
SKU: #160827
Part: #C25DND340A
UPC: 782116300648
Eaton definite purpose contactor, Quick,40A, 110-120 Vac, 50/60 Hz, Open with metal mounting plate, 15-50A, two- and three-pole, 40A, Contactor, Three-pole, 50A, Screw/pressure plate and quick connect terminals (side-by-side), Non-reversing
SKU: #160827
Part: #C25DND340A
UPC: 782116300648
Description
Eaton Definite Purpose Contactor 40A Quick Connect Electrical Distributor

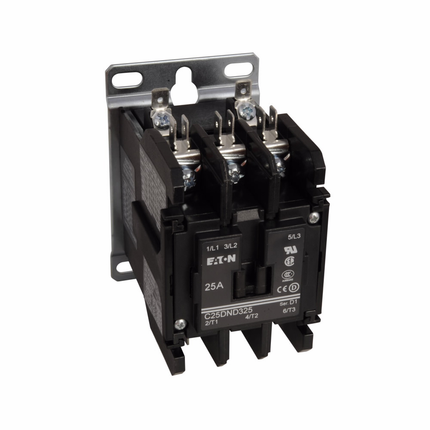

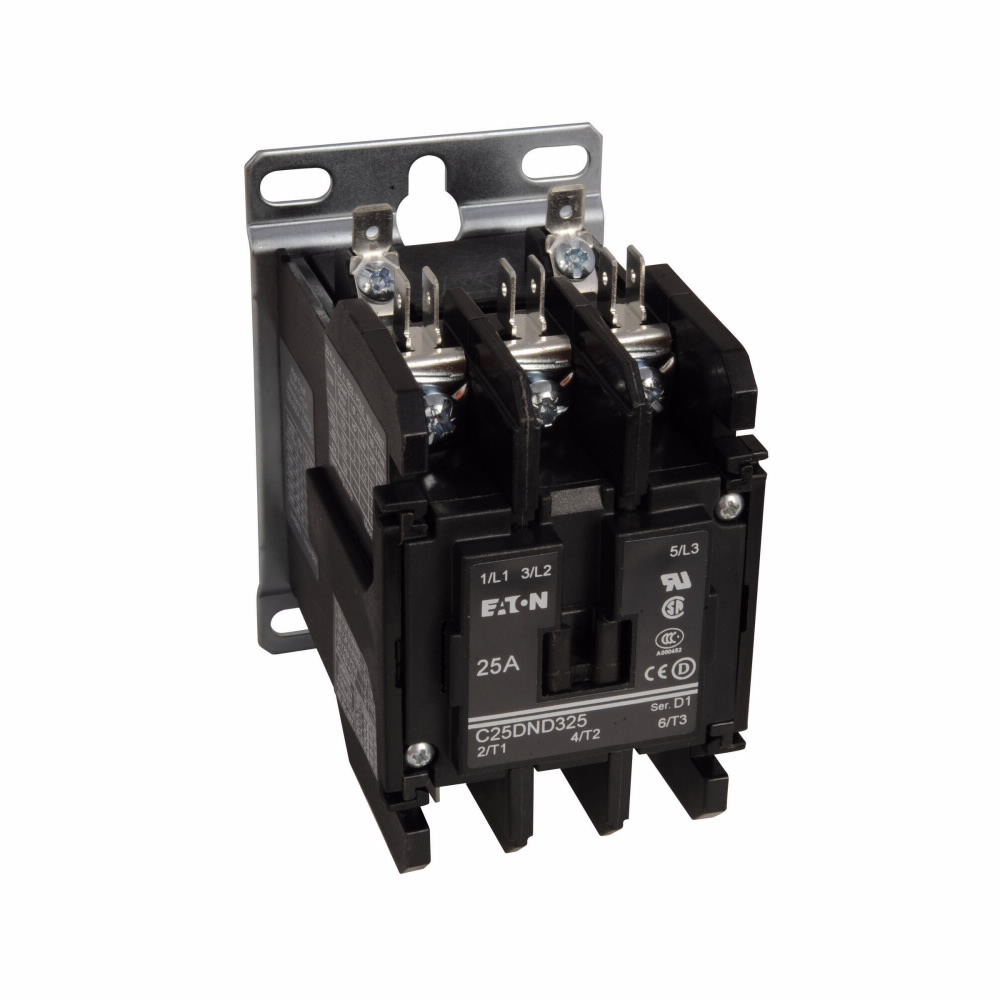

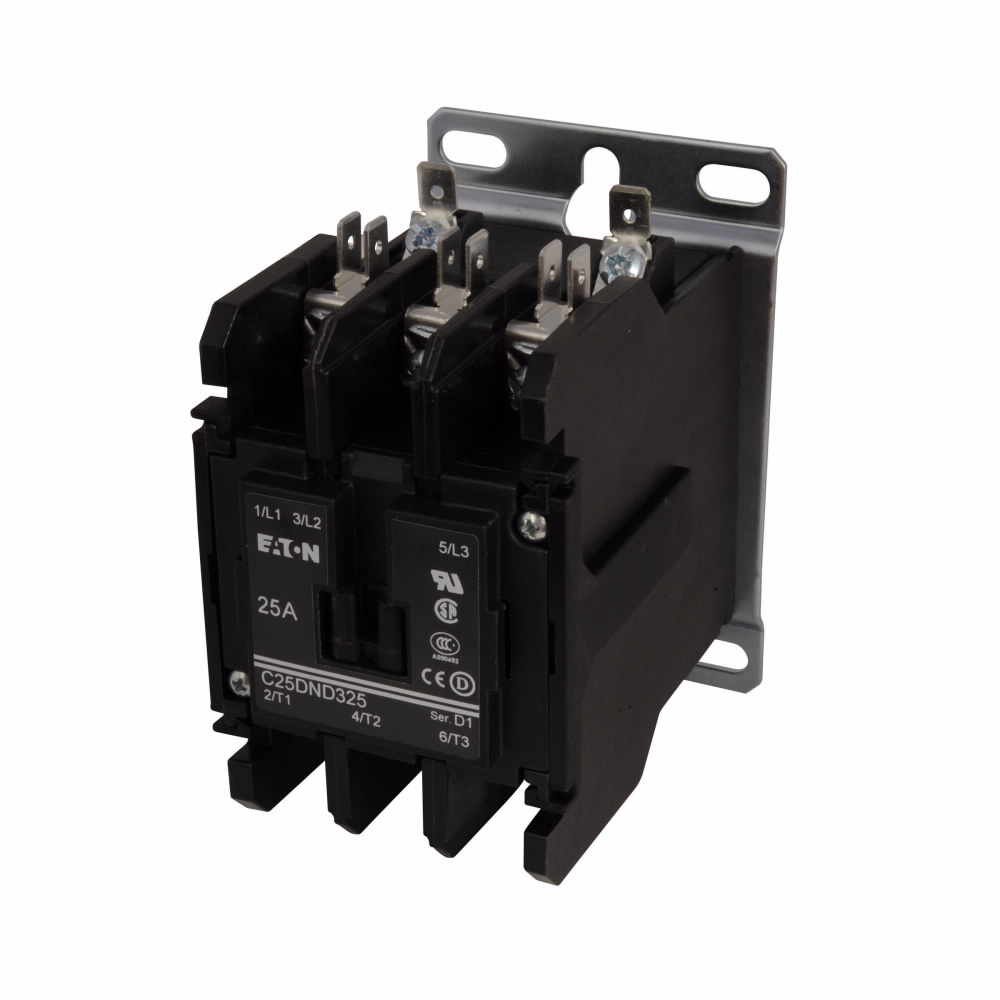

The Eaton definite purpose contactor model C25DND340A is a three-pole, 40 ampere contactor designed for use in motor control and protection applications. It operates on a coil voltage of 110/120 volts AC at 50/60 Hz and features a quick connection type for efficient wiring. This contactor is supplied with an open enclosure type and a metal mounting plate, suitable for panel installations. Its compact dimensions and robust design make it a reliable component for electrical distributors and switchgear suppliers managing lighting solutions, wire and cable systems, and motor control circuits.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: C25DND340A
- Amperage: 40 amperes
- Frame: 15-50 amperes
- Coil Voltage: 110/120 volts
- Enclosure Type: Open with metal mounting plate
- Connection Type: Quick
- Poles: Three-pole
- Dimensions (W x H x L): 2.4 in x 3.75 in x 3.35 in
- Product Weight: 1.12 lbs
- UPC: 782116300648
Features
- Non-reversing contactor design
- Screw/pressure plate and quick connect terminals arranged side-by-side
- Suitable for 15-50A frame applications
- Open type enclosure with metal mounting plate for easy panel integration
