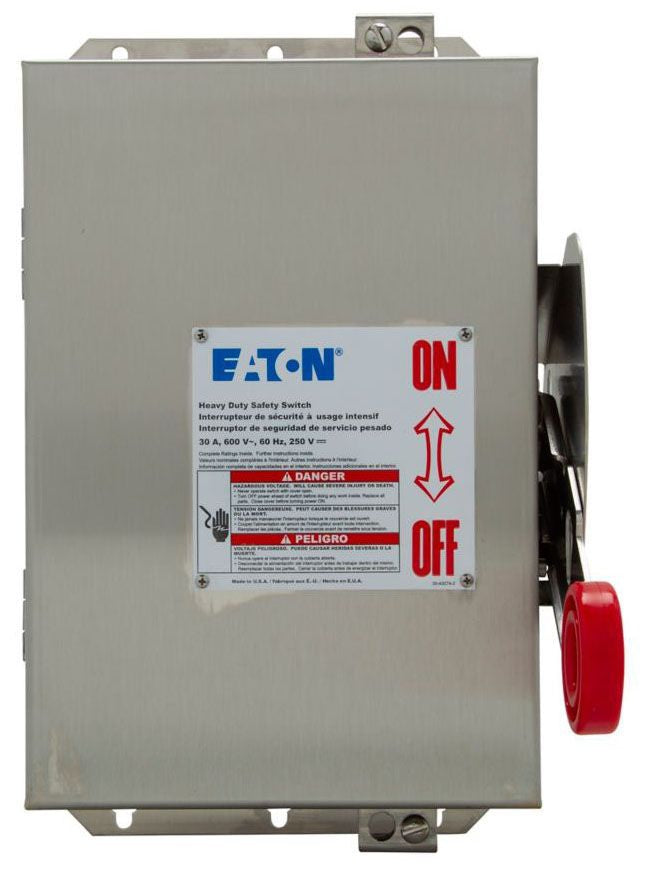

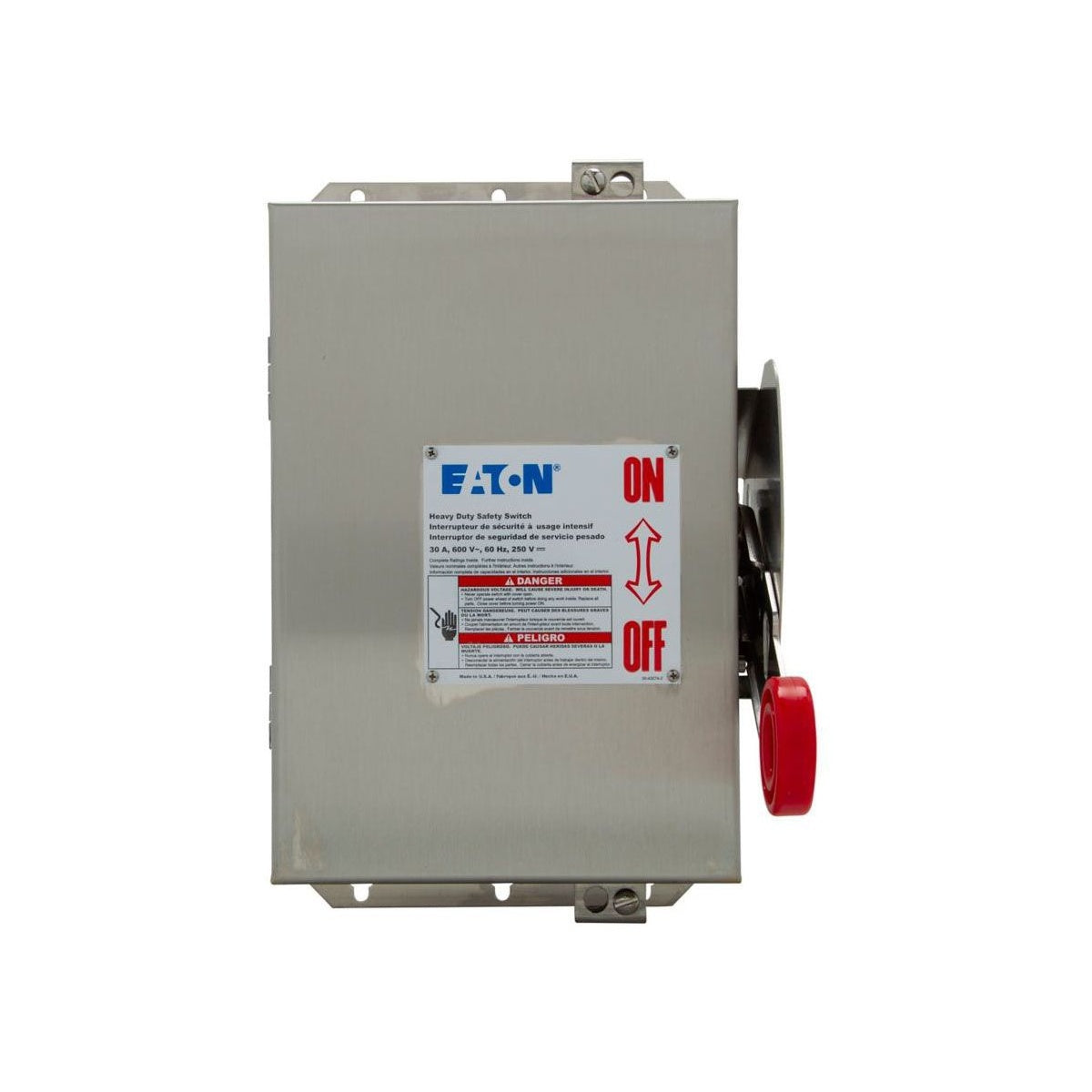

Eaton Custom Single-Throw Non-Fused Safety Switch – Heavy-Duty Electrical Distributor Switch

The Eaton Custom single-throw non-fused safety switch is designed for heavy commercial and industrial applications requiring reliable electrical service continuity. This 30-ampere, three-pole, three-wire switch features a NEMA 4X enclosure made of premium 316-grade stainless steel, providing superior corrosion resistance suitable for harsh environments such as wastewater treatment and petrochemical facilities. Ideal for use by electrical distributors and switchgear suppliers, this non-fusible safety switch supports multiple voltage ratings and is suitable for service entrance applications.

Specifications

• Manufacturer: Eaton
• Amperage: 30 amperes
• Poles: Three-pole
• Wiring: Three-wire
• Enclosure Material: 316 Stainless Steel
• Enclosure Type: NEMA 4X
• Voltage Ratings: 7.5 A at 480 Vac TD 1 Phase, 10 A at 600 Vac TD 1 Phase, 10 A at 240 Vac TD 3 Phase, 20 A at 480 Vac TD 3 Phase
• Dimensions (W x H x L): 8.76 in x 14.14 in x 10.22 in
• Product Weight: 17 lbs
• Manufacturer Part Number: DH361UWK316
• UPC: 782114183601

Features

• Non-fusible design rated for 100% load break and load make
• Premium 316-grade stainless steel enclosure for enhanced corrosion resistance against chemicals, salts, acids, and marine atmospheres
• Visible double-break quick-make, quick-break blades for reliable switching
• Clearly visible red palm-fitting handle with ON/OFF indication for easy operation
• Mechanically interlocked cover prevents access when switch is ON, enhancing personnel safety
• Internal barrier compliant with NEC 230.62(C) and UL 98 requirements
• Deionizing arc chutes to confine and suppress arcs during load switching
• Suitable for service entrance applications
