Eaton Custom single-throw fused safety switch, 100 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 30, 40/ 60, 75 hp (1/3PH @480, 600 V), #14-#1/0 Cu/Al
SKU: #163635
Part: #DH363FGK
UPC: 782113206417
Eaton Custom single-throw fused safety switch, 100 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 30, 40/ 60, 75 hp (1/3PH @480, 600 V), #14-#1/0 Cu/Al
SKU: #163635
Part: #DH363FGK
UPC: 782113206417
Next day delivery
Description

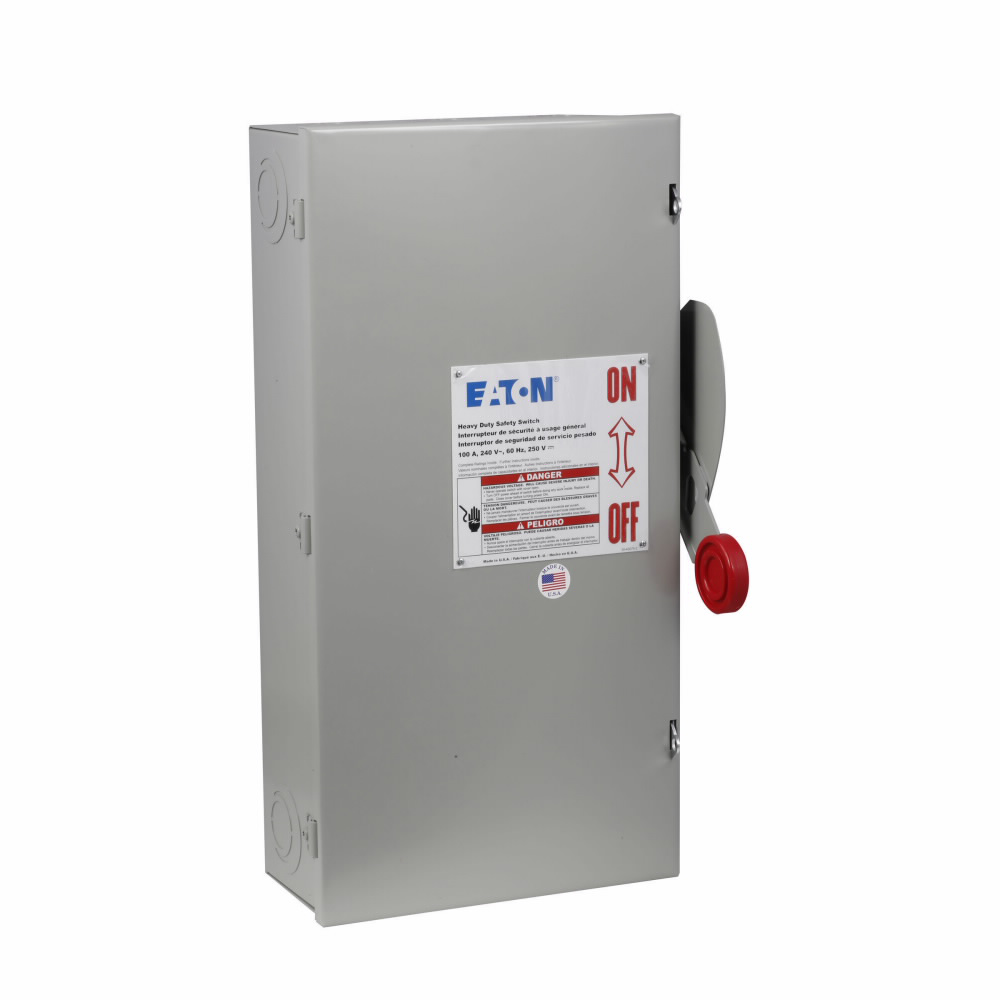

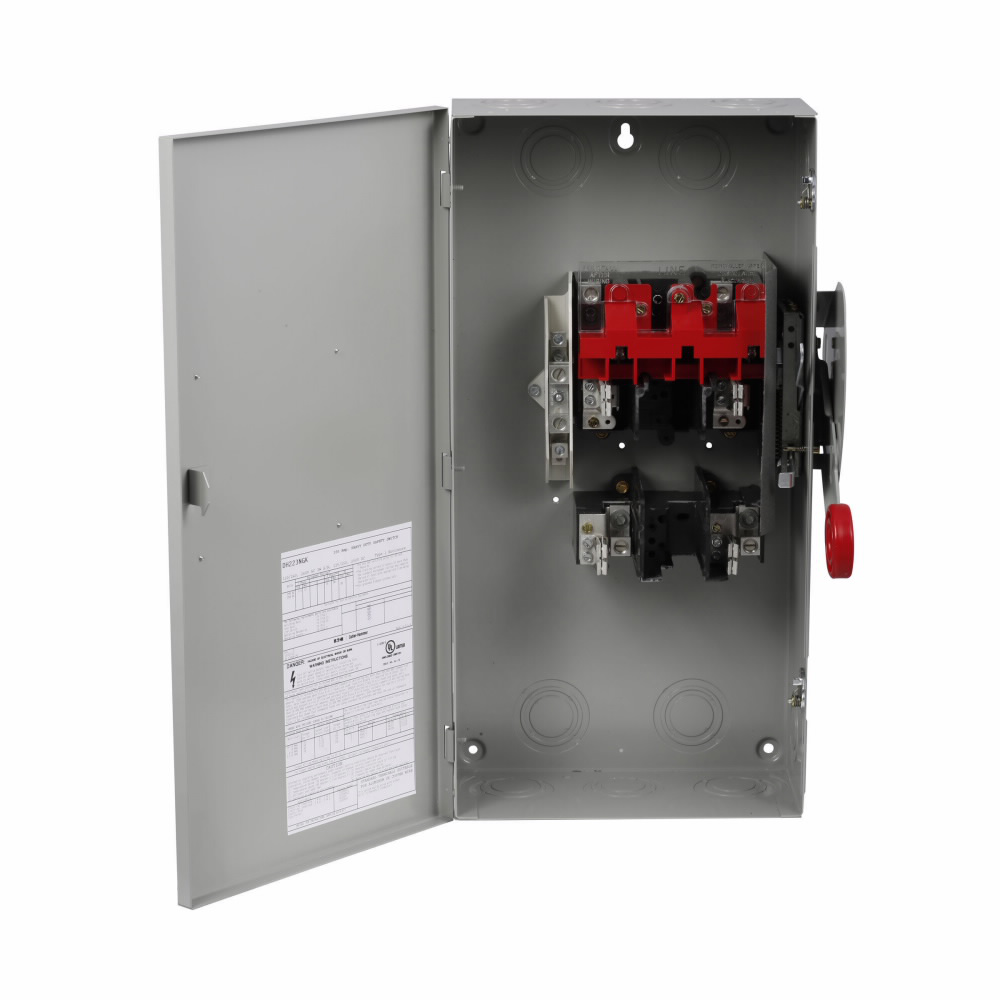

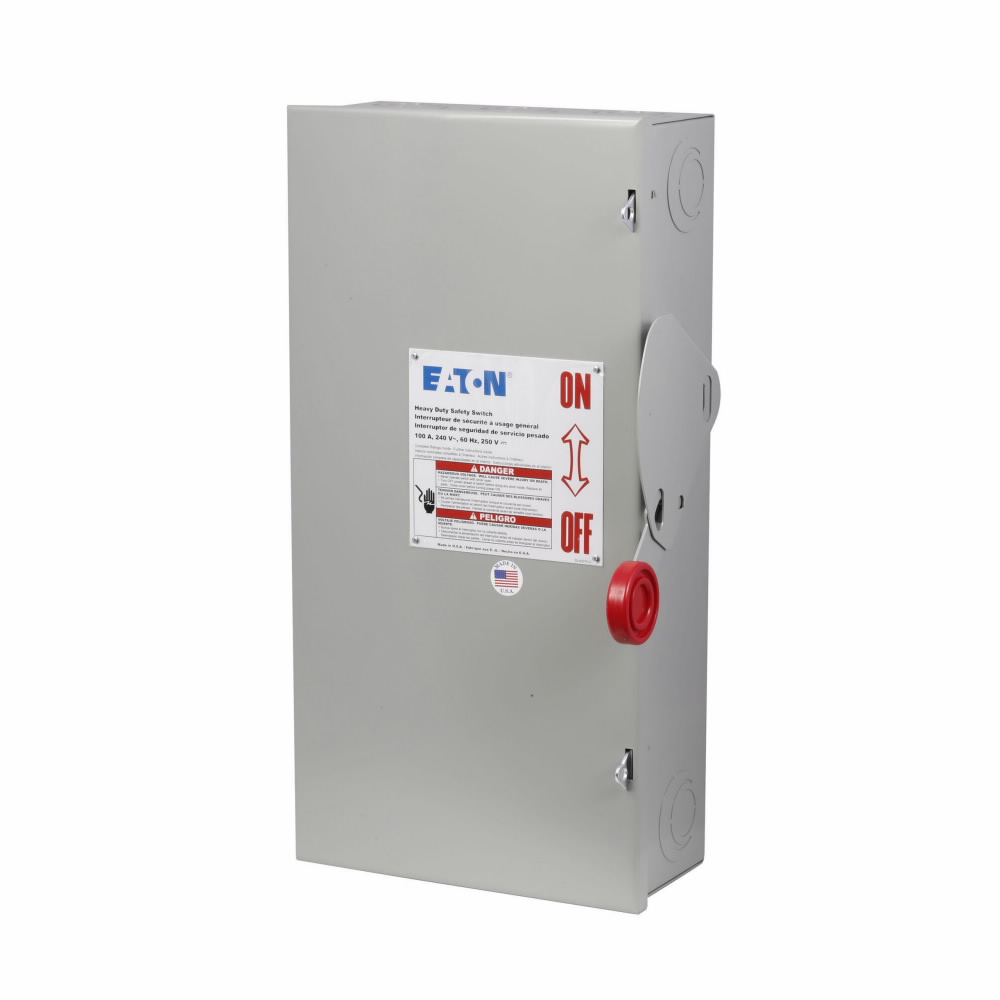

Eaton Custom Single-Throw Fused Safety Switch - Heavy Duty Electrical Switch
The Eaton Custom single-throw fused safety switch is designed for industrial and commercial power distribution applications. This heavy-duty safety switch provides reliable disconnection and overcurrent protection for electrical circuits up to 600 V. It is suitable for use by electrical distributors and switchgear suppliers requiring durable, safe, and efficient switching solutions. The switch is fusible without neutral, three-pole, and three-wire, supporting wire sizes from #14 to #1/0 Cu/Al, and is rated for maximum horsepower capacities up to 75 hp at 480/600 V.
Specifications
- Name: Eaton Custom single-throw fused safety switch, 100 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 30, 40/ 60, 75 hp (1/3PH @480, 600 V), #14-#1/0 Cu/Al
- Amperage: 100 amperes
- Voltage: 600 V
- Poles: Three-pole
- Wires: Three-wire
- Enclosure Material: Painted Steel
- Dimensions (W x H x L): 12.5 in x 8.5 in x 22.5 in
- Manufacturer: Eaton
- Manufacturer Part #: DH363FGK
- Product Weight: 21.7 lbs
Features
- Heavy-duty construction with painted steel enclosure for durability and protection
- Fusible safety switch with Class H fusing for reliable overcurrent protection
- Supports wire sizes #14 through #1/0 copper or aluminum conductors
- Three-pole, three-wire configuration suitable for 600 V applications
- Maximum horsepower ratings of 30 hp (240 V), 40/60 hp (480 V), and 75 hp (600 V) for motor control
- Compact dimensions for easy installation in electrical distribution panels
- Meets UL 98 and UL 50 standards for enclosed deadfront switches and electrical enclosures
