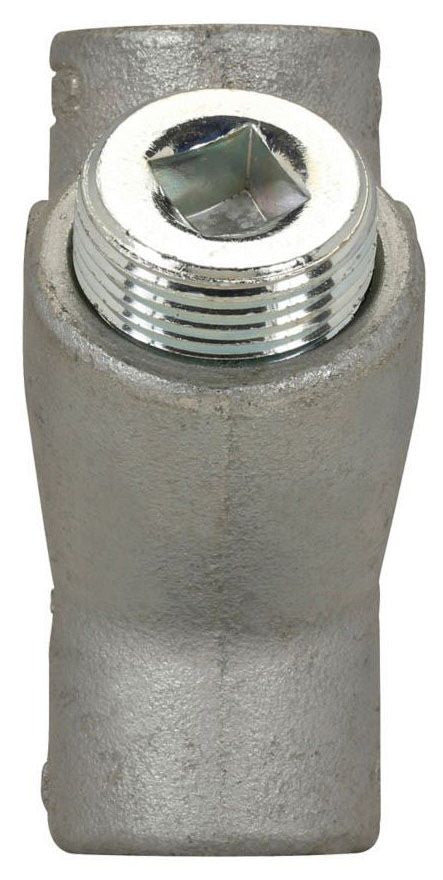

Eaton Crouse-Hinds series EYS conduit sealing fitting, Female, Feraloy iron alloy - Industrial Electrical Distributor

The Eaton Crouse-Hinds series EYS conduit sealing fitting is designed for industrial facilities and factories to restrict the passage of gases, vapors, or flames between sections of electrical installations at atmospheric pressure and normal ambient temperatures. This female conduit sealing fitting is constructed from feraloy iron alloy and/or ductile iron and is intended for vertical-only installation. It is suitable for use in hazardous locations to limit explosions to sealed enclosures and to control pressure buildup in conduit systems, making it an essential component for electrical distributors, lighting solutions, wire and cable, and switchgear suppliers in industrial environments.

Specifications

• Manufacturer: Crouse-Hinds
• Manufacturer Part #: EYS1
• Material: Iron (Feraloy iron alloy and/or ductile iron)
• Application: Industrial Facilities/Factories - Other
• Dimensions (inches): Length 1.25, Width 1.25, Height 3.28
• Product Weight: 0.9 lbs
• Installation: Vertical only
• Size: 1/2 inch hub size
• Certification: UL1203, CSA C22.2
• Hazardous Location Ratings: Class I, Divisions 1 & 2, Groups A, B, C, D; Class II, Divisions 1 & 2, Groups E, F, G; Class III

Features

• Restricts passage of gases, vapors, or flames between electrical installation sections
• Limits explosions to sealed enclosures and prevents pressure piling in conduit systems
• Large openings with threaded closures for easy access to conduit hubs
• Integral bushings protect conductor insulation from damage
• Taper tapped hubs ensure ground continuity
• Constructed from durable feraloy iron alloy and/or ductile iron with electrogalvanized finish and aluminum acrylic paint

Downloads & Links

• Crouse-Hinds Series Eys And Ezs Explosionproof Conduit Sealing Fittings Catalog Page
