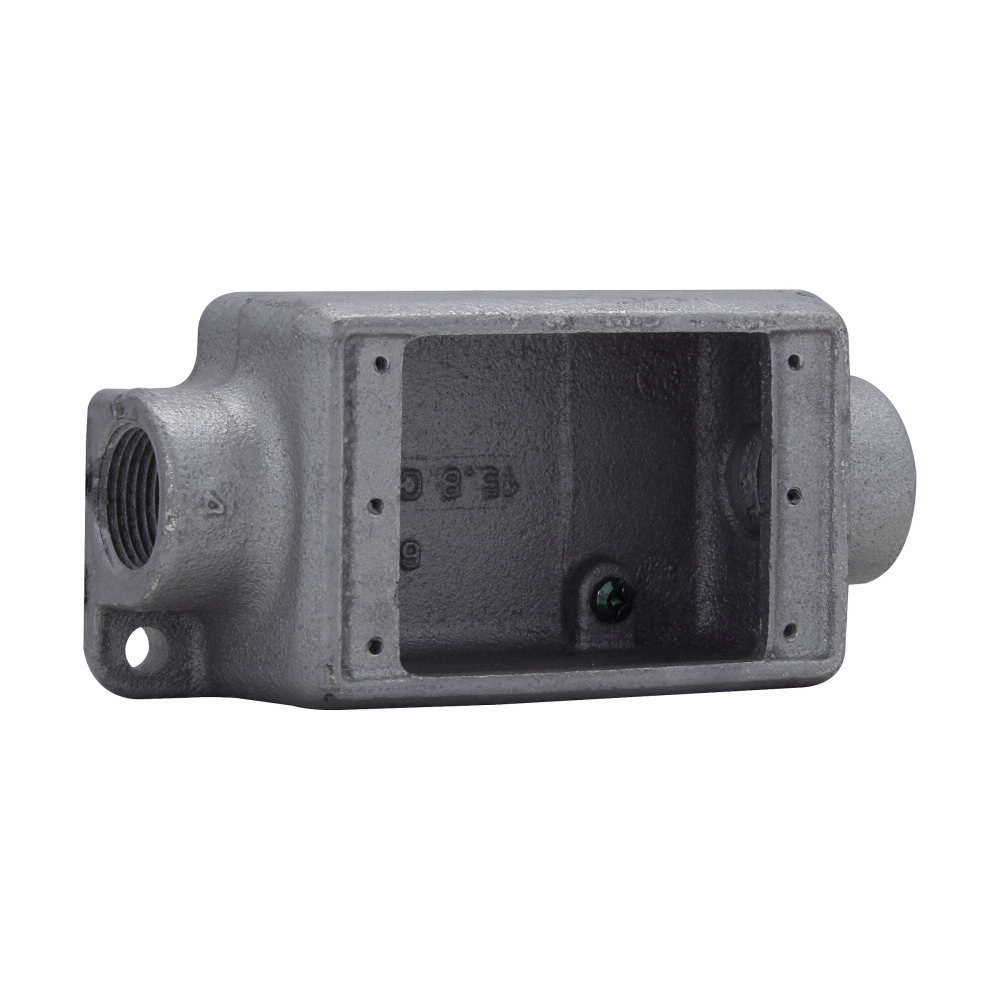

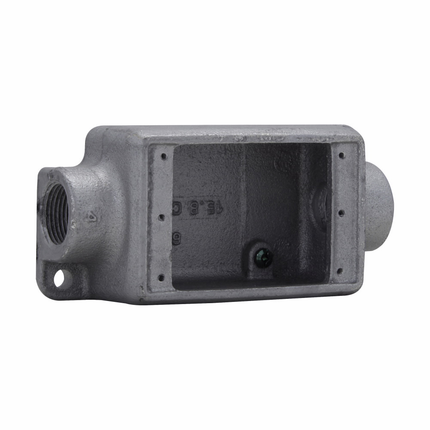

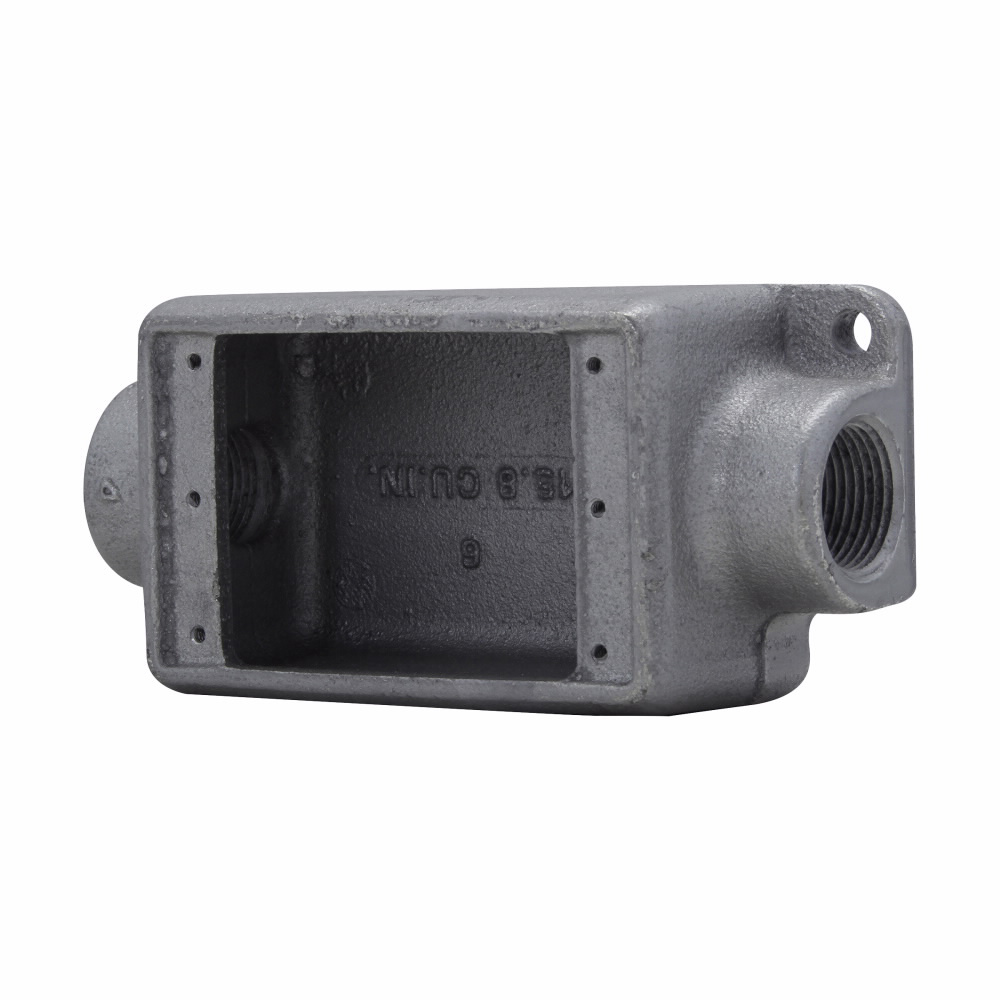

Eaton Crouse-Hinds series Condulet FD device box, Deep, Feraloy iron alloy, Single-gang, C shape, 1" - Cast Device Box

The Eaton Crouse-Hinds Condulet FD device box is a deep, single-gang cast device box designed for industrial facilities and factories. Constructed from durable Feraloy iron alloy, this device box provides a robust housing solution suitable for use by electrical distributors and switchgear suppliers in demanding environments. The product is engineered to accommodate wiring devices, act as a pull box for conductors in conduit systems, and provide access for splices, taps, and maintenance. Its design supports threaded rigid and IMC conduit applications, making it a reliable component in wire and cable installations and lighting solutions.

Specifications

• Name: Eaton Crouse-Hinds series Condulet FD device box, Deep, Feraloy iron alloy, Single-gang, C shape, 1"
• Manufacturer: Crouse-Hinds
• Manufacturer Part #: FDC3
• Material: Feraloy Iron Alloy
• Application: Industrial Facilities/Factories - Other
• Dimensions (inches): Length 6.28, Width 2.69, Height 2.75
• Product Weight: 3.6750 lbs
• UPC: 782274398303

Features

• Deep (FD) configuration suitable when device depth exceeds 1 5/8"
• Cast device box suitable for surface or flush mounting
• Internal green ground screw standard
• Tapered threaded hubs (NPT) with integral bushing
• Robust Feraloy iron alloy construction providing high tensile strength and dependable service
• Suitable for use in wet locations when used with gasketed covers
• Ample wiring room for conductor splices and taps
• Single-gang configuration with C shape design for conduit connections
• Compliant with UL514A, ANSI C33.84, Federal Spec W-C-5860, and CSA C22.2 No. 18 standards

Downloads & Links

• Crouse-Hinds Series Fs, Fd, Single, Multi, Blank Device Boxes And Covers Catalog Page
