Eaton Crouse-Hinds series CGB cable gland, Cable range min/max: 1.000-1.188", Non-armoured and tray cable, Non-armoured, Steel, General purpose, 1" NPT
SKU: #129810
Part: #CGB399
UPC: 782274134703
Eaton Crouse-Hinds series CGB cable gland, Cable range min/max: 1.000-1.188", Non-armoured and tray cable, Non-armoured, Steel, General purpose, 1" NPT
SKU: #129810
Part: #CGB399
UPC: 782274134703
Next day delivery
Description

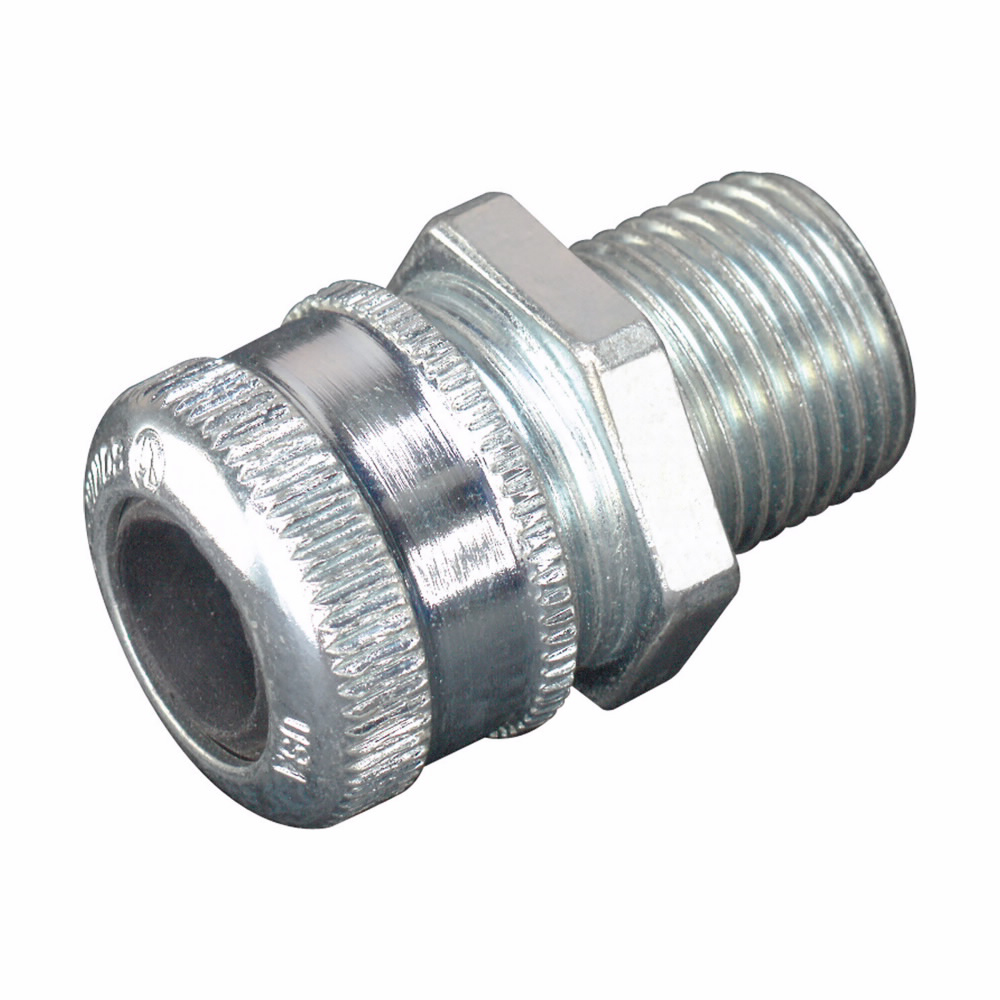

Eaton Crouse-Hinds series CGB cable gland - Industrial Cable Gland
The Eaton Crouse-Hinds series CGB cable gland is designed for use in industrial facilities and factories, providing secure and durable cable entry solutions for non-armored and tray cables. This cable gland is suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable protection in demanding environments. It supports cable ranges from 1.000 to 1.188 inches and features a 1" NPT thread size for easy installation.
Specifications
- Application: Industrial Facilities/Factories - Other
- Cable Range (Min/Max): 1.000-1.188 inches
- Material: Steel
- Thread Size: 1" NPT
- Weight: 1.0800 lbs
- Dimensions (L x W x H): 3.21 in x 2.25 in x 2.25 in
- Manufacturer: Crouse-Hinds
- Manufacturer Part #: CGB399
- UPC: 782274134703
Features
- Rugged, durable steel construction with zinc electroplate and chromate finish for corrosion resistance
- Standard neoprene bushing provides weatherproof seal on the outer sheath of cable
- Designed for non-armored and tray cable types
- Compact design allows close grouping of several cords and cables
- Available with NPT threads for compatibility with standard conduit systems
- Suitable for use in wet locations and industrial environments
