Eaton Crouse-Hinds series CGB cable gland, Cable range min/max: 0.625-0.750", Non-armoured and tray cable, Non-armoured, Steel, General purpose, 1/2" NPT
SKU: #129797
Part: #CGB196
UPC: 782274131504
Eaton Crouse-Hinds series CGB cable gland, Cable range min/max: 0.625-0.750", Non-armoured and tray cable, Non-armoured, Steel, General purpose, 1/2" NPT
SKU: #129797
Part: #CGB196
UPC: 782274131504
Next day delivery
Description

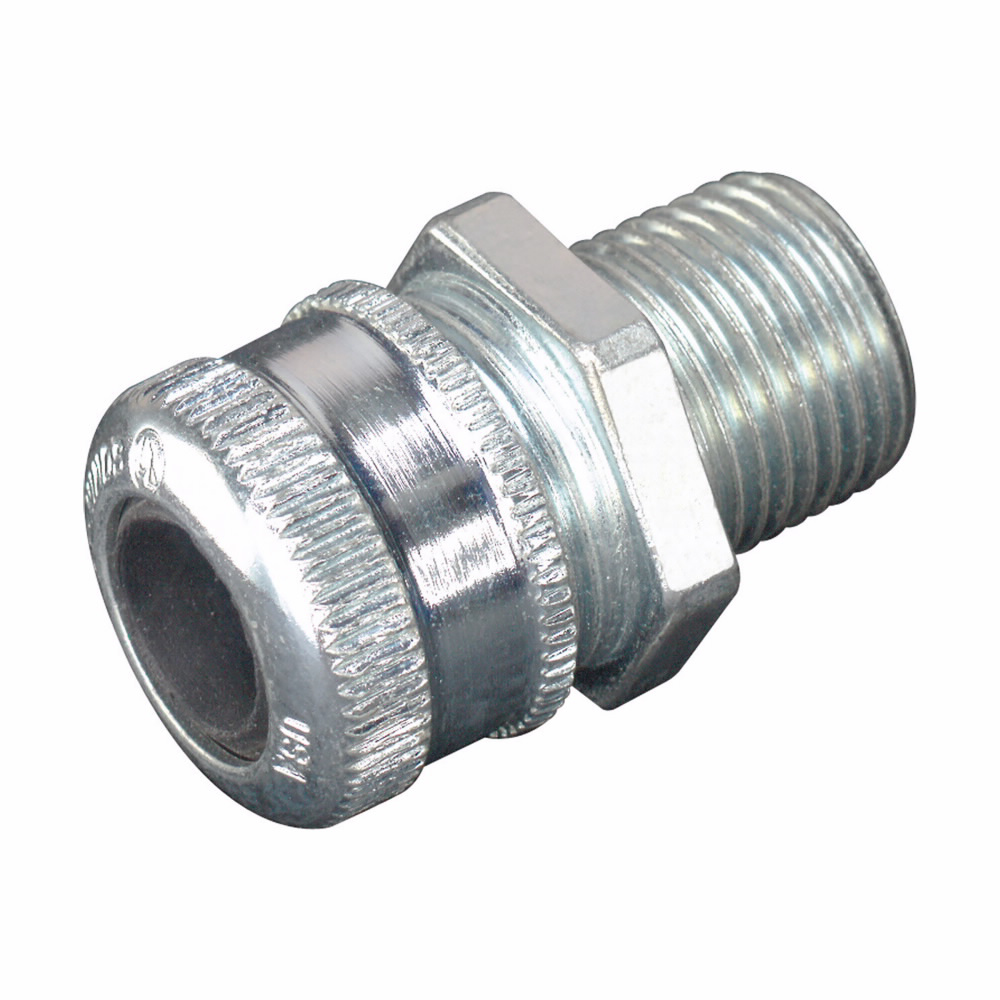

Eaton Crouse-Hinds Series CGB Cable Gland - Industrial Cable Gland
The Eaton Crouse-Hinds Series CGB cable gland is designed for industrial facilities and factories, providing secure and durable cable entry solutions for non-armored and tray cables. This steel cable gland is suitable for electrical distributors and lighting solutions requiring reliable cable protection and strain relief. It is compatible with cable ranges from 0.625 to 0.750 inches and features a 1/2" NPT thread for easy installation in switchgear and control panels.
Specifications
- Manufacturer Part #: CGB196
- Material: Steel
- Cable Range (Min/Max): 0.625" - 0.750"
- Thread Size: 1/2" NPT
- Dimensions (L x W x H): 2.38 in x 1.66 in x 1.66 in
- Product Weight: 0.5550 lbs
- Application: Industrial Facilities/Factories - Other
- UPC: 782274131504
Features
- Rugged, durable steel construction with zinc electroplate and chromate finish for corrosion resistance
- Compact design allows close grouping of multiple cables
- Standard neoprene bushing provides weatherproof seal on outer sheath of cable
- Suitable for use with flexible cords and tray cables including TC, TC-ER, ITC, and PLTC types
- Available with NPT threads for secure installation
- cULus Listed, suitable for Class I, Division 2 hazardous locations when installed per NEC 501.10(B)(4)
- Meets NEMA 3R, NEMA 4 (steel only), and NEMA 4X (aluminum only) standards
- Operating temperature range: -25°C to +40°C
