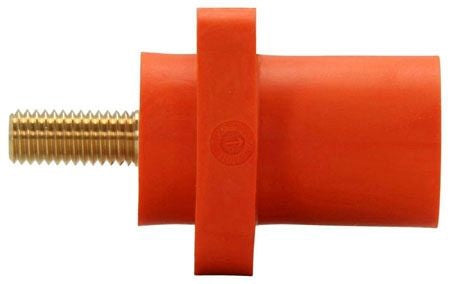

Eaton Crouse-Hinds Cam-Lok J Series E1016 Insulated Receptacle – Electrical Connector

The Eaton Crouse-Hinds Cam-Lok J Series E1016 insulated receptacle is designed for industrial power distribution and control applications in facilities and factories. It supports quick, reliable, and safe connections for portable power, motors, generators, and other power distribution needs. This component is suitable for use by electrical distributors and switchgear suppliers requiring durable, high-amperage connectors with robust insulation and environmental protection.

Specifications

• Amperage: 400 amperes continuous
• Voltage Rating: 600 VAC/DC
• Cable Size Range: #6 AWG to 250 kcmil
• Material: Thermoplastic Elastomer (TPE)
• Color: Yellow
• Dimensions (L x W x H): 3.69 in x 2.25 in x 2.25 in
• Connection Type: Threaded stud with double set screw termination
• Operating Temperature Range: -40ºC to 105ºC
• Environmental Rating: NEMA 3R (per series standard)
• Weight: 1.0 lb
• Manufacturer Part Number: E1016-1601S

Features

• Double cam principle for positive, vibration-proof electrical connection
• Self-compensating for wear, eliminating arcing and burning at contact surfaces
• High conductivity brass contacts with smooth sliding fit and easy locking action
• Watertight, shatter and crack-resistant elastomeric insulation
• Color-coded for easy phase identification
• Recessed contacts protected by insulating jacket extending beyond contact ends for safety
• Integrated strain relief system to prevent cable jacket pull-away and bare conductor exposure
• High strength molded-in-place locking ring secures insulator to contact
• Fully insulated for direct mounting to steel panels
• Snapback covers provide NEMA 3R environmental sealing
• Wide range of cable size accommodation and color options available
