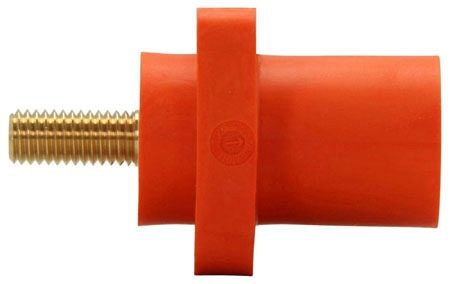

Eaton Crouse-Hinds Cam-Lok J Series E1016 Insulated Receptacle – Electrical Connector

The Eaton Crouse-Hinds Cam-Lok J Series E1016 insulated receptacle is engineered for industrial power distribution and control applications, ideal for use in facilities and factories. This connector supports up to 400 amperes continuous current and accommodates wire sizes from #6 AWG to 250 kcmil, making it suitable for heavy-duty electrical distribution tasks. Its thermoplastic elastomer (TPE) construction ensures durability and environmental resistance, while the threaded stud design facilitates secure and reliable connections. This product is a dependable choice for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers requiring robust, insulated connectors rated for 600 VAC/DC.

Specifications

• Amperage: 400 amperes
• Voltage Rating: 600 VAC/DC
• Cable Size Range: #6 AWG to 250 kcmil
• Material: Thermoplastic Elastomer (TPE)
• Color: Brown
• Dimensions (L x W x H): 3.69 in x 2.25 in x 2.25 in
• Thread Type: Threaded stud
• Product Weight: 1.0 lb
• Manufacturer Part Number: E1016-1619S
• Application: Industrial Facilities & Factories – Power Distribution and Control

Features

• Insulated, shatter and crack-resistant, watertight design
• Heat, weather, ozone, oil, and abrasion-resistant for harsh environments
• Double set screw termination for enhanced connection strength
• Fully insulated for direct mounting to steel panels
• High impact-resistant thermoplastic housing protects receptacles from damage
• Snapback covers provide NEMA 3R environmental seal
• Custom cover logos and wide range of colors available
• Complies with UL1691, CSA C22.2 No. 1691-12, and CSA C22.2 No. 182.3 LR13963 standards
• Environmental Rating: NEMA 3R or NEMA 4

Downloads & Links

• Cam-Lok J Series Single Pole Plugs And Receptacles Catalog Page
