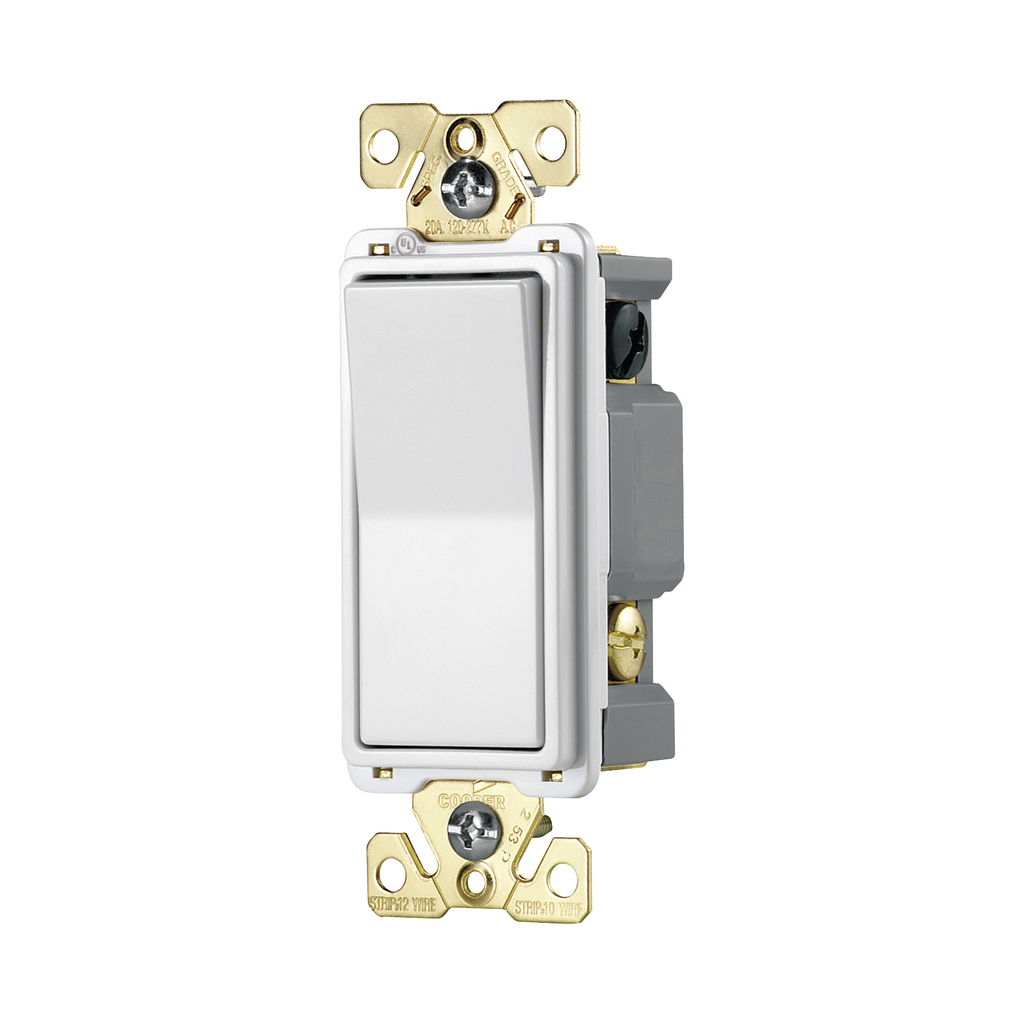

Eaton commercial grade decorator switch - Electrical Switch

The Eaton commercial grade decorator switch is designed for reliable electrical control in commercial and industrial applications. This double pole switch supports 20 amperes and operates at 120/277 volts AC, making it suitable for various lighting solutions and electrical distribution systems. Its antimicrobial white paddle actuator and thermoplastic construction provide durability and hygiene, ideal for environments requiring frequent use and cleanliness. As a component from a trusted switchgear supplier, this device integrates easily into wire and cable installations with secure back and side wiring.

Specifications

• Manufacturer: Cooper Wiring Devices
• Manufacturer Part #: 7622W-BOX
• Amperage: 20 amperes
• Number of Poles: 2
• Number of Phases: 1
• Material: Thermoplastic
• Color: White
• Actuator: Antimicrobial Paddle
• Product Weight: 0.2720 lbs
• Voltage Rating: 120/277 VAC
• Wiring Type: Back & side wire
• Terminal Accommodation: #14 - 10 AWG
• Flammability Rating: UL94 V2
• Temperature Rating: -20°C to 60°C (-4°F to 140°F)
• Compliance: cULus Listed to UL 20, CSA C22.2 no111, UL Verified to Federal Spec WC-896E, RoHS
• Dimensions: 4.19" (H) x 1.30" (W) x 1.29" (D)

Features

• Durable antimicrobial paddle actuator for hygienic applications
• Welded construction for superior assembly security under heavy use
• One-piece wrap-around auto-grounding strap for reliable grounding
• Tapered back wire openings accommodate multiple wire sizes up to #10 AWG solid or stranded
• Stippled line and ground contacts ensure solid electrical connection
• Ground screw clamp reduces installation time and improves wiring security
• Tarnish resistant components with minimal color change over time
• Rated for motor loads: 20A @ 120V/AC = 1 HP, 20A @ 240V/AC = 2 HP
