Eaton CH thermal magnetic circuit breaker,Type CHF 3/4-Inch standard circuit breaker,30 A,10 kAIC,Single-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF,Type CH Loadcenters
SKU: #161993
Part: #CHF130
UPC: 786685361864
Eaton CH thermal magnetic circuit breaker,Type CHF 3/4-Inch standard circuit breaker,30 A,10 kAIC,Single-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF,Type CH Loadcenters
SKU: #161993
Part: #CHF130
UPC: 786685361864
Next day delivery
Description

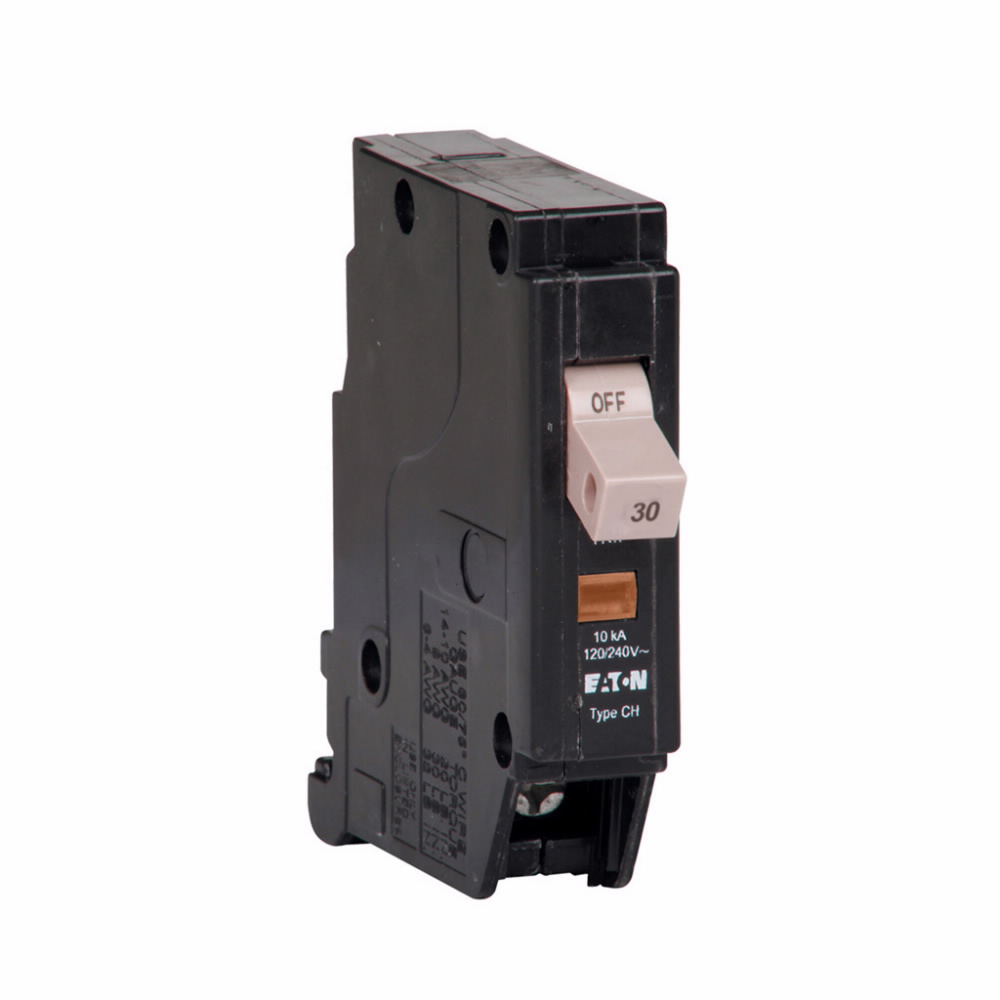

Eaton CH Thermal Magnetic Circuit Breaker – 30 Amp Single-Pole Circuit Breaker
The Eaton CH thermal magnetic circuit breaker, Type CHF, is designed for residential and light commercial electrical distribution applications. This 30-amp single-pole breaker provides reliable overcurrent protection with a 10 kiloamp interrupt rating at 120/240V, making it suitable for use in loadcenters, meter breaker panels, and transfer switch panels. As a trusted electrical distributor and switchgear supplier, Eaton offers this compact ¾-inch wide breaker that accommodates more circuits per panel without sacrificing performance or safety.
Specifications
- Manufacturer: Eaton
- Type: CHF Thermal Magnetic Circuit Breaker
- Amperage: 30 amperes
- Interrupt Rating: 10 kiloamps (kAIC)
- Poles: Single-pole
- Voltage: 120/240V
- Dimensions: 3.2 in (length) x 2.6 in (height) x 0.7 in (width)
- Manufacturer Part Number: CHF130
- UPC: 786685361864
Features
- Mechanical trip flag visibly indicates breaker status for easy identification of tripped breakers
- Exclusive “Trip to OFF” and simple 1-step reset feature eliminates the need to turn the breaker off before resetting
- Space-saving ¾-inch design allows for higher circuit density in loadcenters
- Tri-Drive screw accepts flat, Robertson, or Phillips drivers for easier installation
- Compatible with Eaton Type CH loadcenters and meter breaker panels
- Limited lifetime warranty from Eaton
