Eaton CH thermal magnetic circuit breaker,Type CH 3/4-Inch standard circuit breaker,15 A,10 kAIC,Three-pole,240V,CH,Common breaker trip,#14-6 AWG Cu/Al,CH,Type CH Loadcenters
SKU: #161640
Part: #CH315
UPC: 782113101996
Eaton CH thermal magnetic circuit breaker,Type CH 3/4-Inch standard circuit breaker,15 A,10 kAIC,Three-pole,240V,CH,Common breaker trip,#14-6 AWG Cu/Al,CH,Type CH Loadcenters
SKU: #161640
Part: #CH315
UPC: 782113101996
Description
Eaton CH Thermal Magnetic Circuit Breaker - Electrical Distributor Circuit Protection

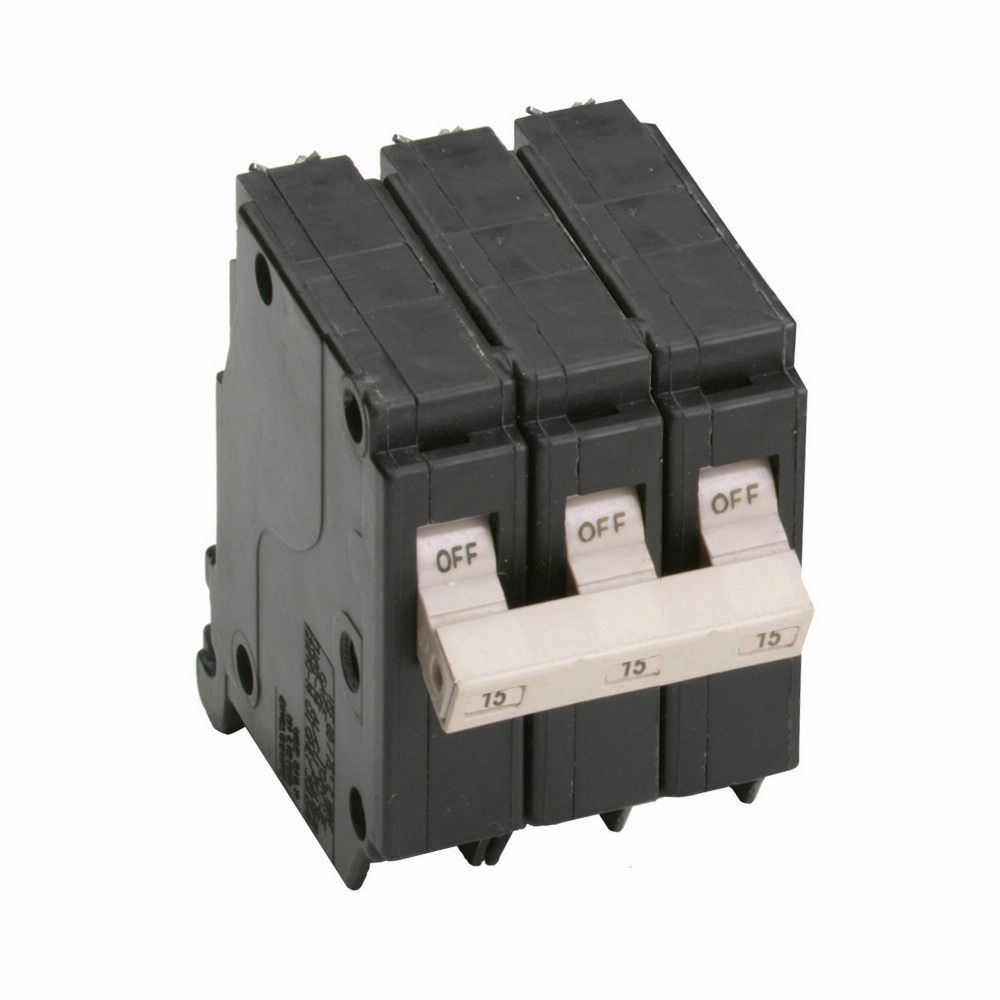

The Eaton CH thermal magnetic circuit breaker is a three-pole, 15-ampere breaker designed for use in residential and light commercial electrical distribution systems. It provides reliable overcurrent protection with a 10 kiloamp interrupt rating at 240 volts, suitable for use in Type CH loadcenters. This breaker is compatible with #14-6 AWG copper or aluminum wire and features a common breaker trip for simultaneous pole operation. Its ¾-inch standard width allows space-saving installation in panels, making it an efficient choice for electrical distributors and switchgear suppliers seeking dependable circuit protection solutions.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: CH315
- Amperage: 15 amperes
- Interrupt Rating: 10 kiloamps
- Poles: Three-pole
- Voltage Rating: 240 V
- Wire Range: #14-6 AWG Cu/Al
- Dimensions: 3 in (Width) x 3 in (Height) x 3 in (Length)
- Product Weight: 0.87 lbs
- UPC: 782113101996
Features
- Thermal magnetic trip mechanism for reliable overload and short circuit protection
- Common breaker trip for simultaneous pole operation
- Space-saving ¾-inch width design for panel compatibility
- Compatible with copper and aluminum wire sizes #14-6 AWG
- Meets UL 489 and NEMA standards for circuit breakers
- Suitable for use in Eaton Type CH loadcenters
