Eaton CH thermal magnetic circuit breaker,Ground fault circuit breaker,5 mA Ground fault,20 A,10 kAIC,Single-pole,120/240 V,#14-8 AWG,CHB,CH Loadcenters
SKU: #161904
Part: #CHB120
UPC: 782113112350
Eaton CH thermal magnetic circuit breaker,Ground fault circuit breaker,5 mA Ground fault,20 A,10 kAIC,Single-pole,120/240 V,#14-8 AWG,CHB,CH Loadcenters
SKU: #161904
Part: #CHB120
UPC: 782113112350
Total Price: $119.02 per each Sold in increments of 1 each
Description

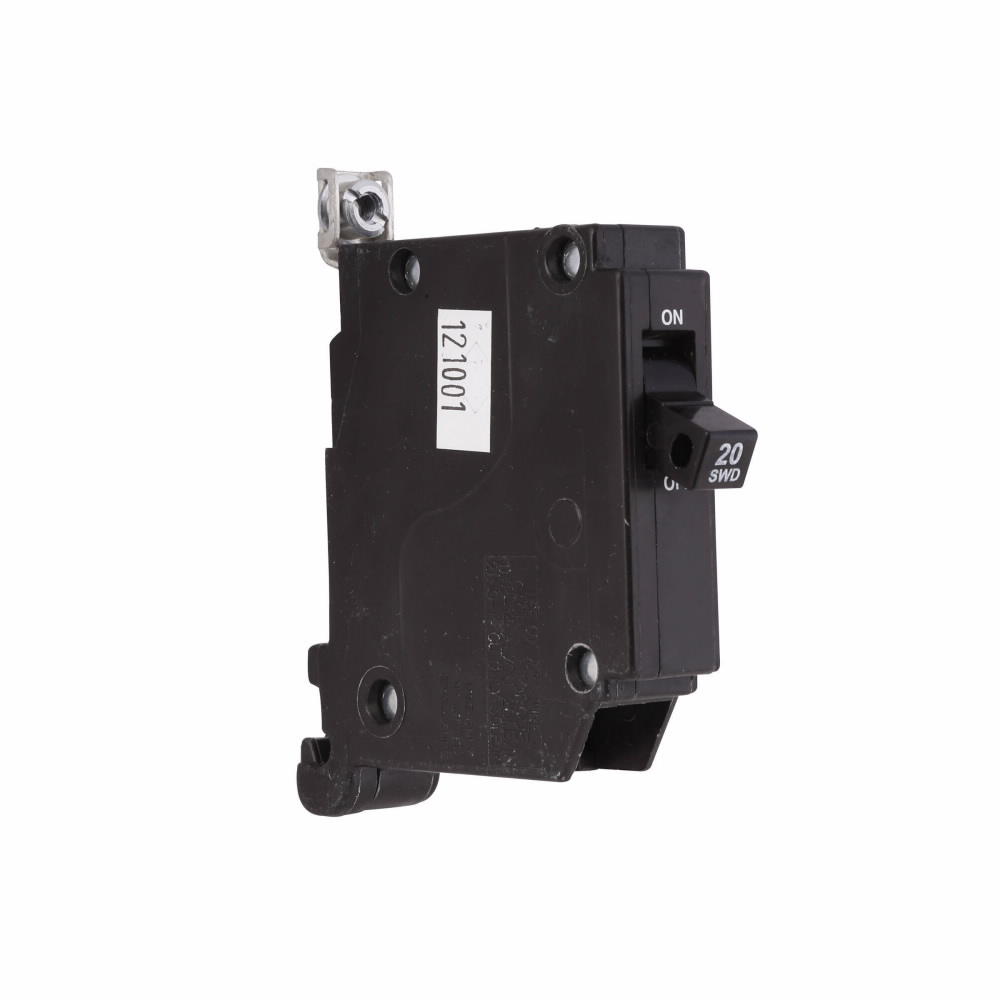

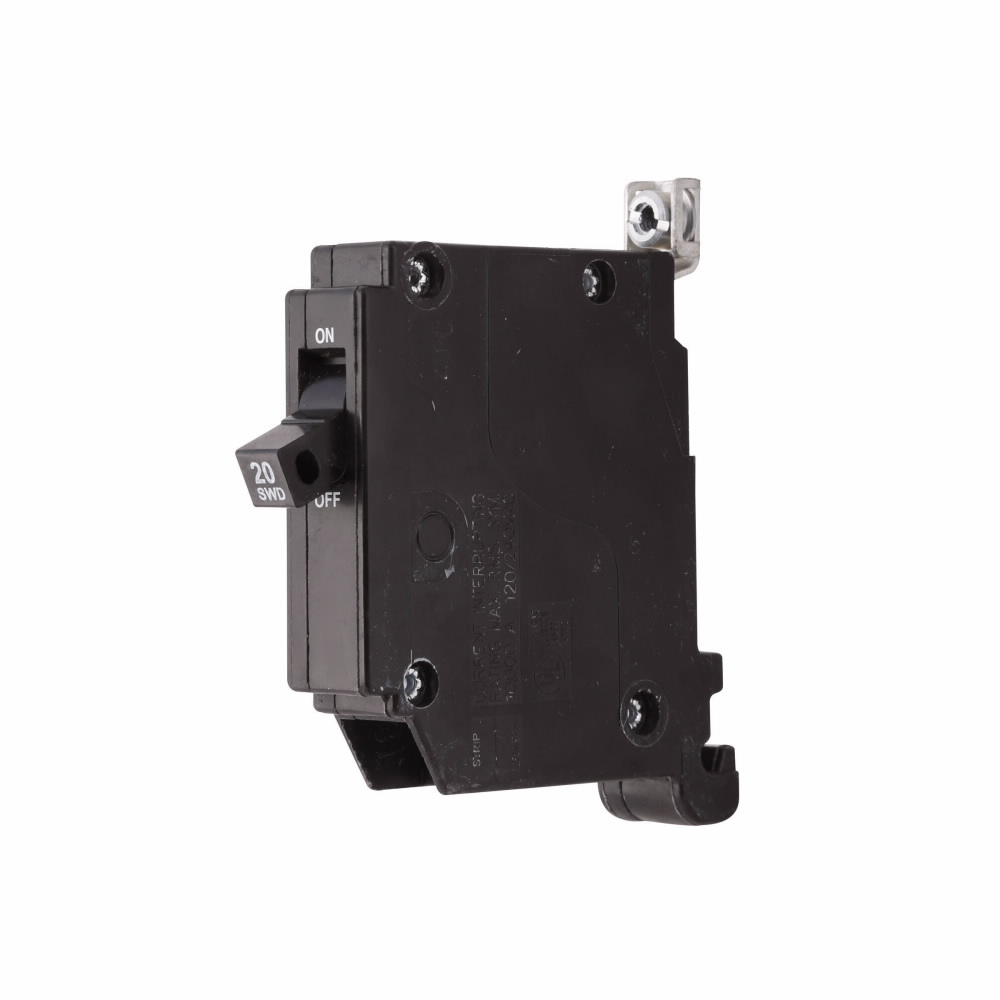

Eaton CH Thermal Magnetic Circuit Breaker - Ground Fault Circuit Breaker 20A 10 kAIC
The Eaton CH thermal magnetic circuit breaker is designed for reliable circuit protection in residential and light commercial electrical distribution systems. It functions as a ground fault circuit breaker with a 5 mA ground fault trip level, suitable for use in CH Loadcenters. This single-pole breaker operates at 120/240 V and supports wire sizes from #14 to 8 AWG. It provides a 10 kiloamps interrupt rating, ensuring protection against short circuits and overloads. Ideal for electrical distributors and switchgear suppliers offering lighting solutions and wire and cable management.
Specifications
- Amperage: 20 amperes
- Interrupt Rating: 10 kiloamps
- Voltage: 120/240 V
- Poles: Single-pole
- Wire Size Range: #14-8 AWG
- Dimensions (W x H x L): 4.5 in x 4.4 in x 8.3 in
- Product Weight: 2 lbs
- Manufacturer Part #: CHB120
- UPC: 782113112350
Features
- Thermal magnetic trip mechanism for reliable overload and short circuit protection
- Ground fault protection with 5 mA trip sensitivity
- Single-pole design for use in CH Loadcenters
- Suitable for switching duty (SWD)
- Compact size compatible with CH Loadcenters and retrofit interiors
- Meets UL Standard 489 and CSA certified
- Rated for heating, air conditioning, and refrigeration (HACR) applications
