Eaton CH main lug loadcenters,Standard,Main lug only,70A,5,Copper,NEMA 1,Metallic,Top/bottom,CH,Surface,2,Four-pole,2,Three-wire,Single-phase,120/240 V,#14-2 AWG
SKU: #161580
Part: #CH2L70SP
UPC: 782114190449
Eaton CH main lug loadcenters,Standard,Main lug only,70A,5,Copper,NEMA 1,Metallic,Top/bottom,CH,Surface,2,Four-pole,2,Three-wire,Single-phase,120/240 V,#14-2 AWG
SKU: #161580
Part: #CH2L70SP
UPC: 782114190449
Total Price: $44.71 per each Sold in increments of 1 each
Next day delivery
Description

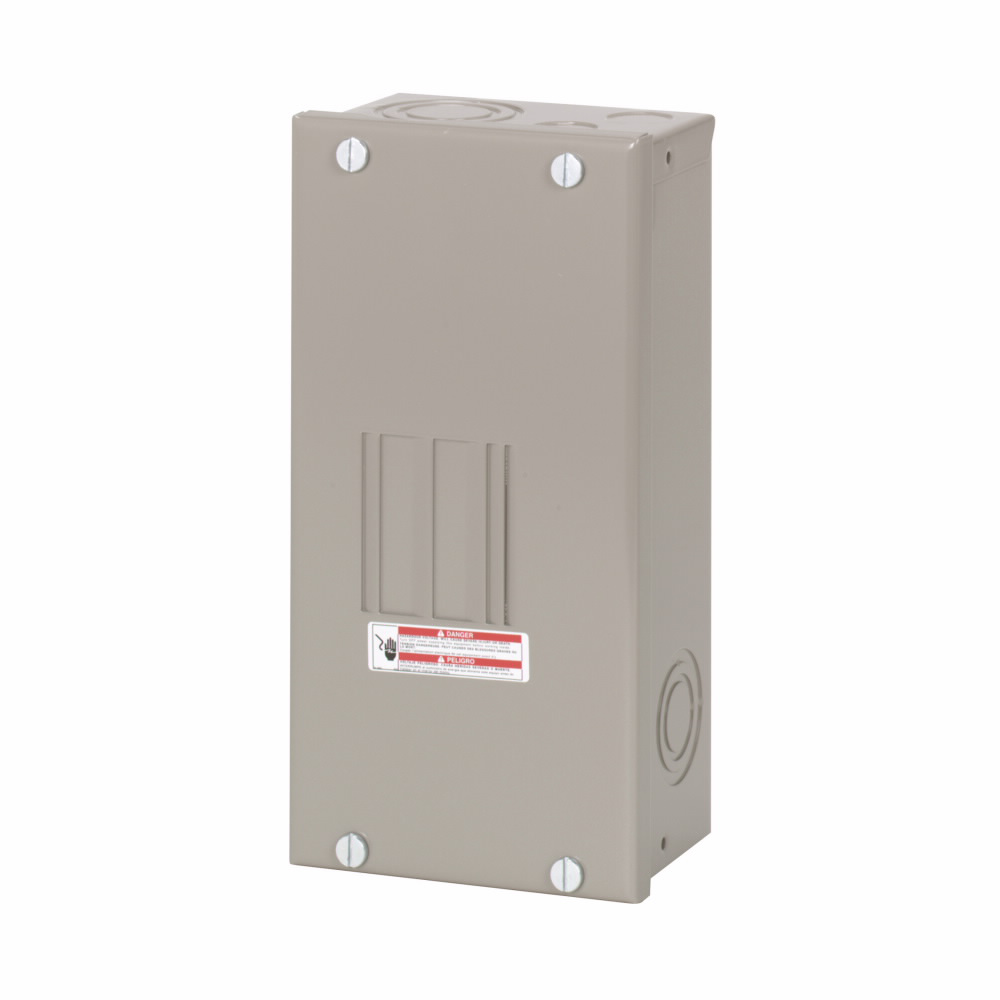

Eaton CH main lug loadcenters 70A - Electrical Loadcenter for Residential and Light Commercial Applications
The Eaton CH main lug loadcenter is designed for safe and reliable distribution of electrical power in residential and light commercial settings. This loadcenter features a 70-ampere main lug with a 5-circuit capacity, suitable for single-phase 120/240 V systems. It is engineered with a metallic NEMA 1 enclosure and surface mounting, providing durable protection and ease of installation. Ideal for electrical distributors and switchgear suppliers, this loadcenter supports copper bus material and accommodates wire sizes from #14-2 AWG, ensuring compatibility with common wiring standards.
Specifications
- Amperage: 70 amperes
- Number of Circuits: 2
- Number of Poles: 4
- Number of Phases: 1
- Bus Material: Copper
- Feed Type: Bottom
- Mounting Type: Surface
- Enclosure Material: Metallic
- Voltage: Single-phase, 120/240 V
- Dimensions (W x H x L): 4.5 in x 3.13 in x 9.5 in
- Weight: 5.25 lbs
- Manufacturer Part #: CH2L70SP
Features
- Compact design with surface mounting for easy installation
- Durable metallic NEMA 1 enclosure with a powder-coated finish for corrosion resistance
- Copper bus for superior conductivity and long-lasting performance
- Bottom feed design for flexible wiring configurations
- Supports #14-2 AWG wire size for common residential wiring applications
- Four-pole configuration suitable for single-phase systems
- Includes factory-installed ground bar for enhanced safety
