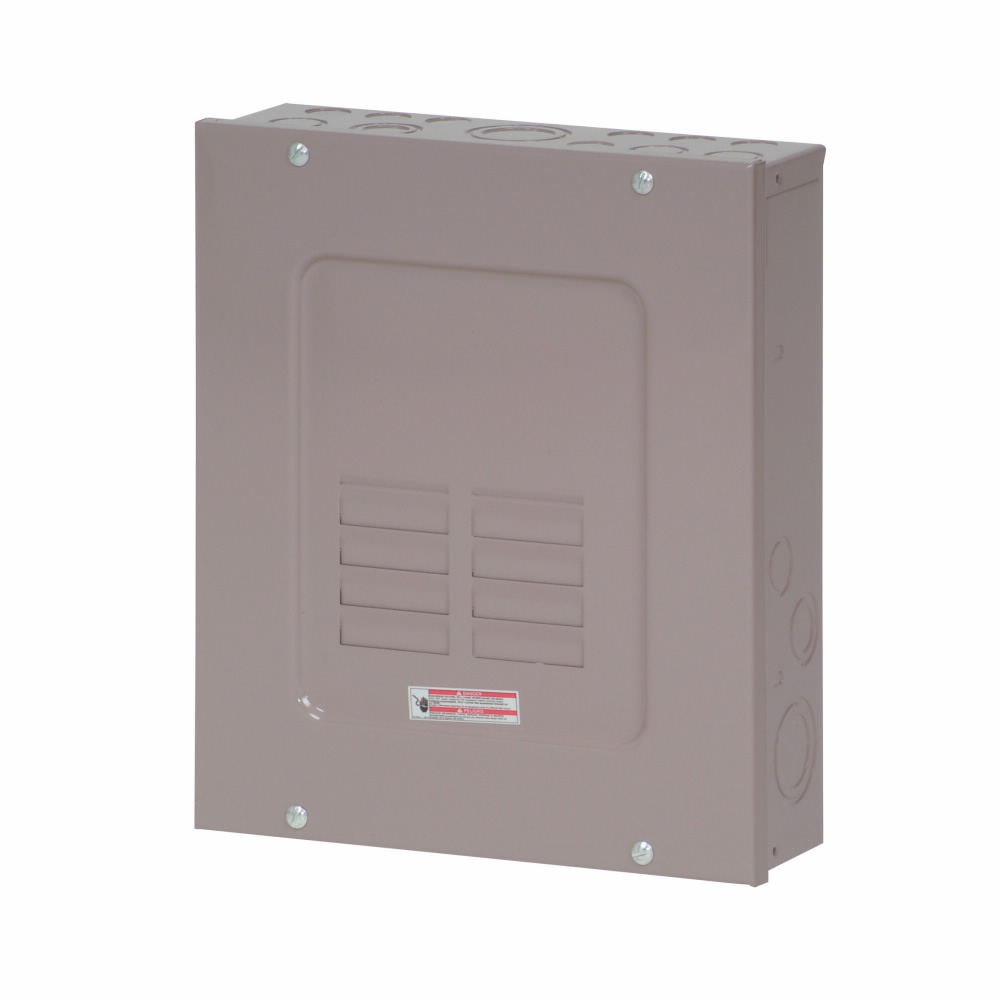

Eaton CH Main Lug Loadcenters – 125A Main Lug Loadcenter

The Eaton CH main lug loadcenter is designed for reliable power distribution in residential and light commercial applications. It serves as a sub-panel or main distribution panel, housing branch circuit breakers that protect individual circuits. This loadcenter is suitable for electrical distributors and switchgear suppliers seeking quality solutions for wire and cable management and lighting solutions integration.

Specifications

• Manufacturer: Eaton
• Amperage: 125 amperes
• Number of Circuits: 8
• Number of Phases: 1 (Single-phase)
• Voltage Rating: 120/240 V
• Feed Type: Bottom
• Bus Material: Copper
• Enclosure Material: Metallic
• Mounting Type: Surface
• Dimensions (W x H x D): 11 in x 3.69 in x 13 in
• Wire Size Range: #6 to 1/0 AWG
• Product Weight: 12 lbs
• Manufacturer Part Number: CH8L125SP

Features

• Silver-flashed copper bus for superior conductivity, corrosion resistance, and durability
• Surface mount NEMA 1 enclosure with a scratch-resistant powder-coated metallic finish
• Bottom feed design allowing straight-in wiring for easier installation and labor savings
• Compatible with Eaton Type CH plug-on neutral breakers for faster, cleaner installations
• Includes a 2/0 lug that is easily removable and installable at any neutral bar location
• Supports up to sixteen poles with eight circuits for flexible circuit distribution
• Suitable for single-phase, three-wire applications at 120/240 V
• Designed to meet UL 67 standards for loadcenters and UL 489 for circuit breakers
