Eaton CH main breaker loadcenters, PON, Main breaker, 100 A, X2, Copper, X2, NEMA 1, Metallic, 10 kAIC, CH, 44, 22, Three-wire, Single-phase, #6-1/0 AWG, 120/240 V
SKU: #162158
Part: #CHP22B100X2
UPC: 786679189559
Eaton CH main breaker loadcenters, PON, Main breaker, 100 A, X2, Copper, X2, NEMA 1, Metallic, 10 kAIC, CH, 44, 22, Three-wire, Single-phase, #6-1/0 AWG, 120/240 V
SKU: #162158
Part: #CHP22B100X2
UPC: 786679189559
Description

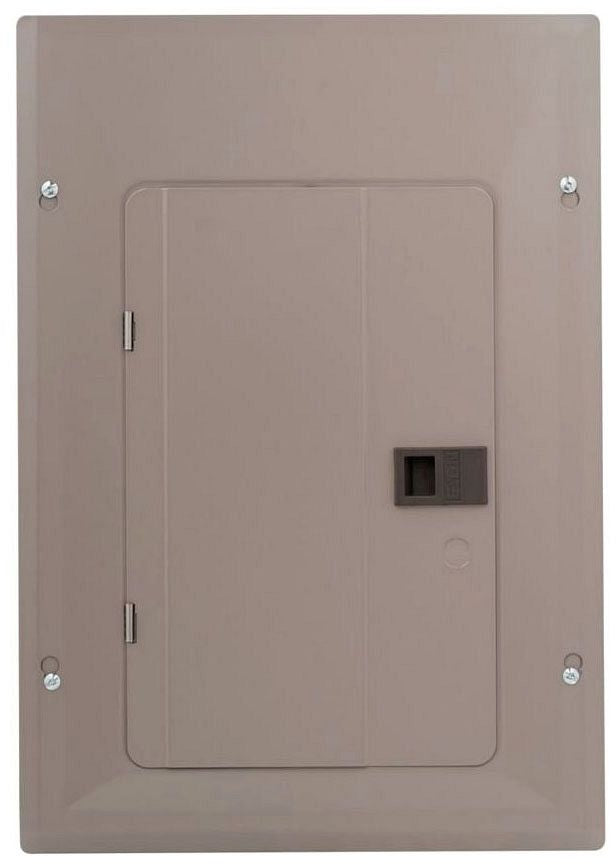

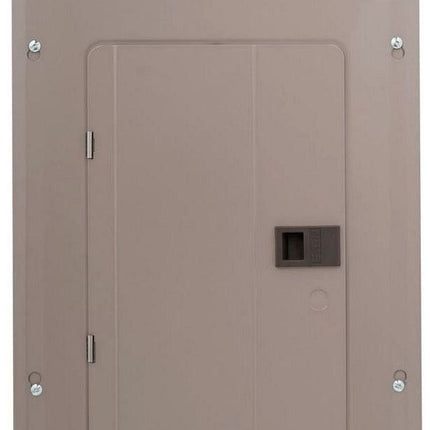

Eaton CH Main Breaker Loadcenters – 100 A, Copper Bus, NEMA 1 Metallic Enclosure
The Eaton CH main breaker loadcenter is designed for single-phase, three-wire 120/240 V electrical distribution applications. It serves as a reliable solution for electrical distributors, lighting solutions providers, wire and cable suppliers, and switchgear suppliers seeking a durable and code-compliant panel. This loadcenter features a main breaker for service entrance protection and branch circuit breakers for individual circuit safety. Its metallic NEMA 1 enclosure is suitable for indoor use, providing a robust housing for electrical components.
Specifications
- Manufacturer: Eaton
- Model Number: CHP22B100X2
- Amperage: 100 amperes
- Number of Circuits: 44
- Number of Phases: 1 (Single-phase)
- Bus Material: Copper
- Interrupt Rating: 10 kiloamps (10 kAIC)
- Voltage: 120/240 V
- Enclosure Material: Metallic
- Dimensions: 21 in (Length) x 14.31 in (Width) x 3.88 in (Height)
- Wire Size Range: #6 to 1/0 AWG
- Mounting Type: NEMA 1 indoor
Features
- Plug-on neutral design for faster and cleaner installation, eliminating pigtail wiring
- Silver flash-plated copper bus for superior conductivity and corrosion resistance
- Stabs rated at 200 A to support handle ratings up to 200 A maximum
- Durable electrostatic powder-coated, sandalwood finish on cold-rolled 16 gauge steel enclosure
- Full-length neutral bars for flexible placement of electronic breakers and easy neutral wire connection
- Top or bottom feed capability allowing straight-in wiring and labor savings
- Commercial grade main breaker with 10 kAIC interrupt rating for reliable main circuit protection
- Single keyhole mounting for easier leveling and installation
- Compatible with Eaton’s Type CH breakers, including AFCI/GFCI/thermal-magnetic types
- Meets UL 67 certification and applicable NEC requirements
