Eaton CH 3/4 in spa panel, ch spa panel-quick pro, single-phase, three-wire, 60 A, #14-1/10 AWG at Cu/Al at 60/75° wire, ground fault self-test feature
SKU: #161766
Part: #CH60SPAST
UPC: 786685969909
Eaton CH 3/4 in spa panel, ch spa panel-quick pro, single-phase, three-wire, 60 A, #14-1/10 AWG at Cu/Al at 60/75° wire, ground fault self-test feature
SKU: #161766
Part: #CH60SPAST
UPC: 786685969909
Next day delivery
Description

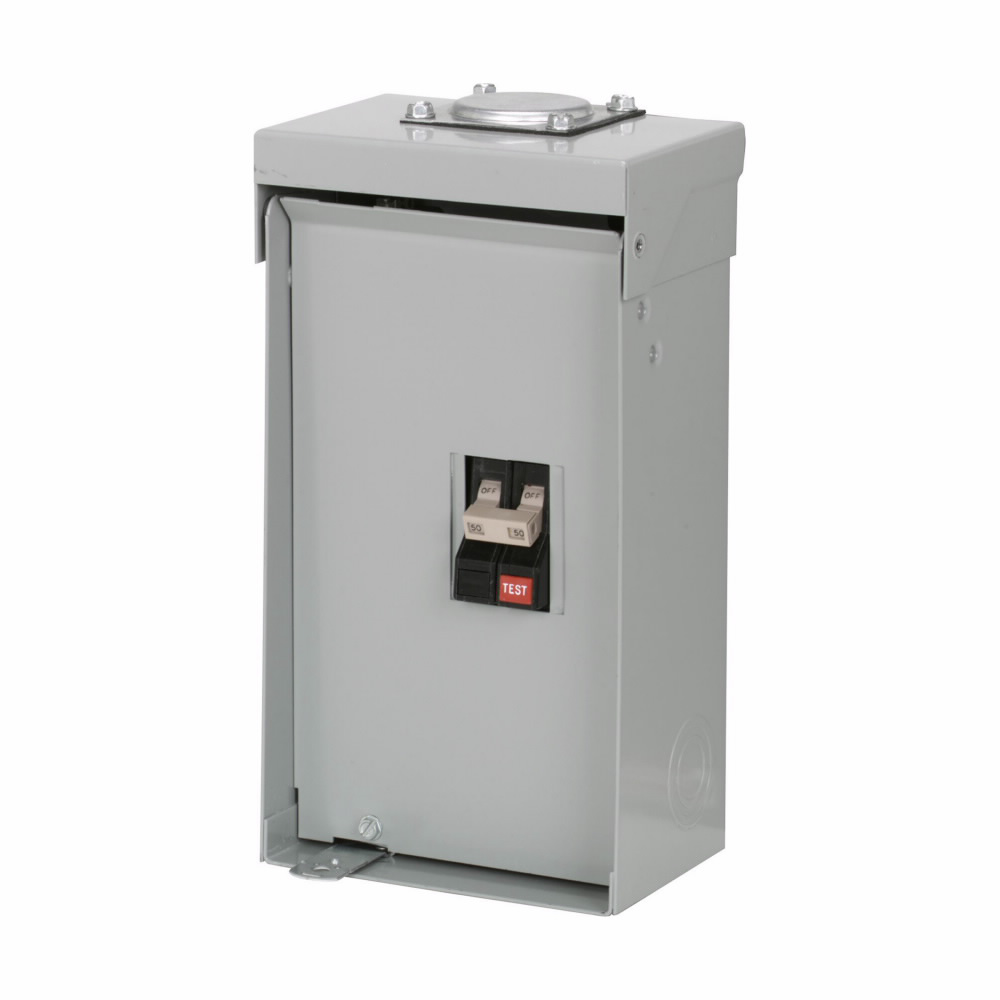

Eaton CH 3/4 in Spa Panel – Ground Fault Protection for Spa Pumps
The Eaton CH 3/4 inch spa panel is a premium factory-assembled combination unit designed specifically to provide ground fault protection and convenient on/off control for spa pumps. This spa panel meets NEC requirements for pool and spa pump protection by integrating a ground fault circuit interrupter (GFCI) and disconnect switch within 10 feet of the tub or spa. It is suitable for use by electrical distributors and switchgear suppliers seeking reliable, code-compliant solutions for residential and light commercial pool and spa applications.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: CH60SPAST
- Amperage: 60 amperes
- Number of Poles: 2
- Number of Phases: 1 (single-phase)
- Wire Size Range: #14–1/0 AWG Cu/Al at 60/75° C
- Enclosure Rating: 3R (rainproof)
- Dimensions (W x H x D): 1.5 in x 3.13 in x 9.5 in
- Product Weight: 7.55 lbs
Features
- Factory-installed two-pole ground fault circuit interrupter (GFCI) breaker for enhanced safety
- Tough powder-coated galvanized steel enclosure for durability in outdoor environments
- Two extra circuits included for additional loads
- UL Listed and NEC compliant for spa pump protection
- Single-phase, three-wire design with bonded neutral for reliable operation
- Compact design suitable for quick installation by electrical contractors
- Includes a disconnect switch integrated with GFCI protection for code-compliant disconnect within 10 feet of spa
