Eaton C30CN mechanically held lighting contactor, 30 A, 110 V/50 Hz, 120 V/60 Hz, 30 A, NEMA 1, Painted steel, Two-pole, Electrically held, C30CN Series, Non-combination electrically and mechanically held
SKU: #164433
Part: #ECC03C1A2A
UPC: 782116153961
Eaton C30CN mechanically held lighting contactor, 30 A, 110 V/50 Hz, 120 V/60 Hz, 30 A, NEMA 1, Painted steel, Two-pole, Electrically held, C30CN Series, Non-combination electrically and mechanically held
SKU: #164433
Part: #ECC03C1A2A
UPC: 782116153961
Next day delivery
Description

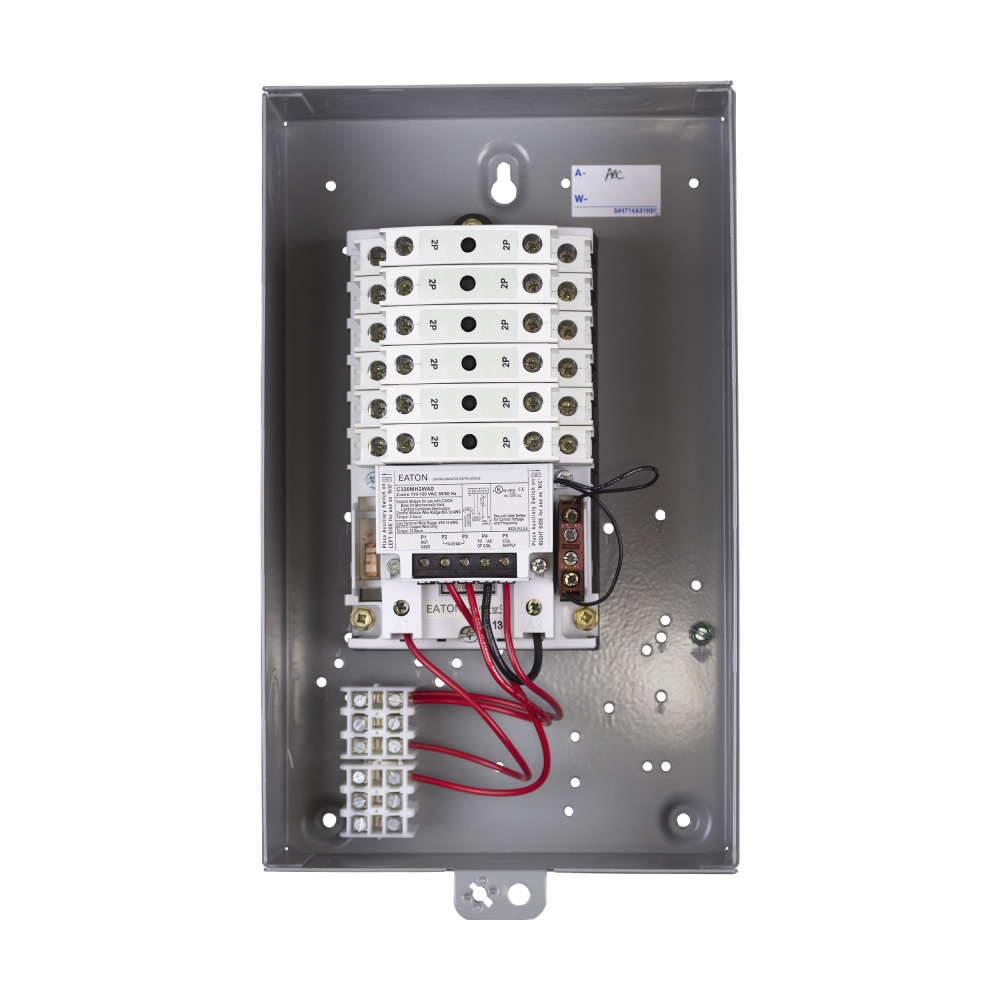

Eaton C30CN Mechanically Held Lighting Contactor - Lighting Solutions
The Eaton C30CN lighting contactor is designed for reliable control of lighting loads in commercial, industrial, and institutional applications. This electrically held, mechanically latched contactor supports two-pole configurations with a 30 ampere rating and operates on 120 volts AC at 50/60 Hz. It is ideal for controlling tungsten (incandescent filament), fluorescent and mercury vapor ballasts, and High Intensity Discharge (HID) lighting loads. Suitable for use in environments such as hospitals, office buildings, industrial plants, airports, and stadiums, it offers quiet, energy-efficient operation with a mechanical latch that maintains contact position during power failure. Eaton’s C30CN series is a trusted solution for electrical distributors, lighting solutions providers, and switchgear suppliers requiring durable, adaptable wire and cable control components.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: ECC03C1A2A
- Amperage: 30 amperes
- Coil Voltage: 120 volts
- Number of Poles: 2
- Enclosure Material: Painted Steel
- Dimensions (W x H x L): 6 in x 12.6 in x 7.62 in
- Product Weight: 13.5 lbs
- UPC: 782116153961
Features
- Mechanically held operation ensures contactor remains latched during power interruptions
- Low magnetic noise for quiet operation, suitable for critical lighting applications
- Two-pole design with easy-to-latch power poles configurable as normally open (NO) or normally closed (NC)
- Expandable with additional poles without replacing the contactor or enclosure
- Enclosed control allows installation in NEMA 1 enclosures with options for NEMA 3R, 12, 7/9, and 4X
- Robust pole terminals accept up to two #8 AWG wires for secure wiring
- Plug-in auxiliary contacts rated A600, suitable for low-level control circuits down to 12V, 5 mA
- Fast, sure three-point mounting for stable installation
